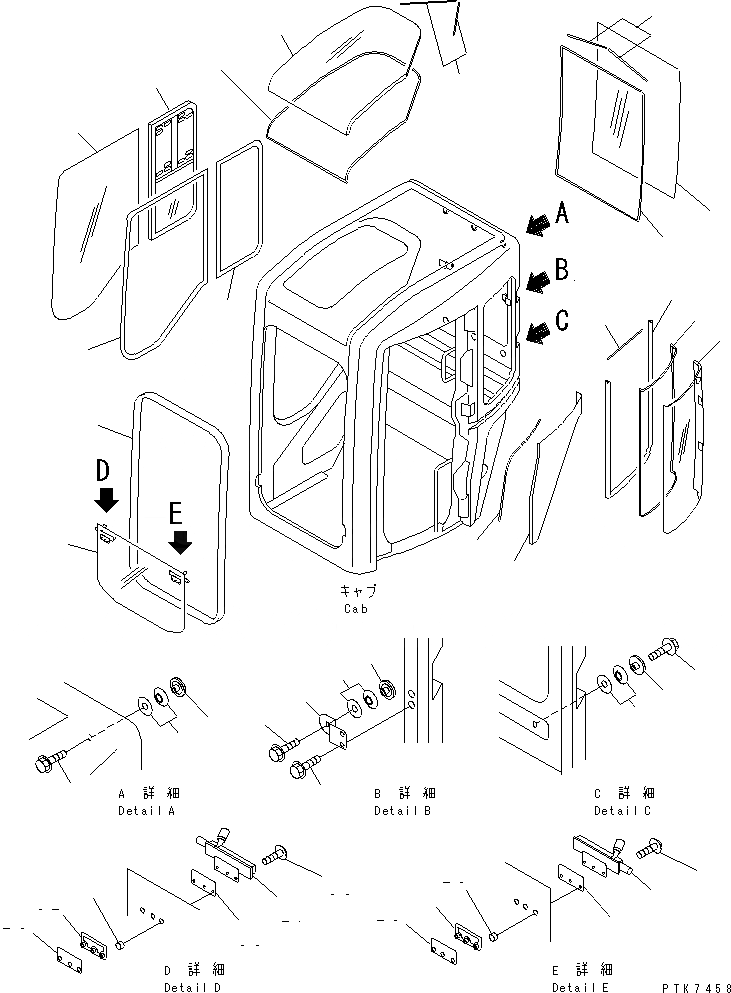

Запчасти Komatsu PC38UU-3 КАБИНА (/) (ОКНА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|1

21X-54-00082

CAB ASS'Y

|1

21X-54-00081

CAB ASS'Y

|1

21X-54-00080

CAB ASS'Y

1

22M-54-14730

WINDOW,L.H.

2

22M-54-14820

DAM,L.H.

3

22M-54-14830

DAM

4

22C-54-34711

GLASS,REAR

5

20T-54-74870

NUT

6

20T-54-74880

GROMMET

7

01435-40612

BOLT

8

01435-40610

BOLT

9

22K-54-14810

SEAL

10

22K-54-14830

BOSS

11

20T-54-74880

GROMMET

12

01435-40625

BOLT

13

22M-54-14830

DAM

14

22K-54-14820

PLATE

15

01435-40608

BOLT

16

22C-54-34750

GLASS,R.H.

17

22C-54-34930

SASH ASS'Y

18

22C-54-34780

WEATHER STRIP

19

22C-54-34790

WEATHER STRIP

20

22C-54-34740

CLEAR PLATE

21

22M-54-14850

DAM,UP

22

22M-54-14830

DAM

23

22L-54-15691

COVER

24

20U-54-24981

DAM

25

22C-54-35510

GLASS,FRONT

26

22M-54-14560

LATCH,L.H.

27

22M-54-14570

LATCH,R.H.

28

20T-54-32780

PACKING

29

20T-54-32870

PACKING¤ 1.0MM

30

20T-54-32750

PACKING¤ 2.0MM

31

20T-54-32760

RETAINER,L.H.

32

20T-54-32770

RETAINER,R.H.

33

01023-20512

SCREW

34

205-54-71560

TRIM

35

20U-54-24651

SEAL
