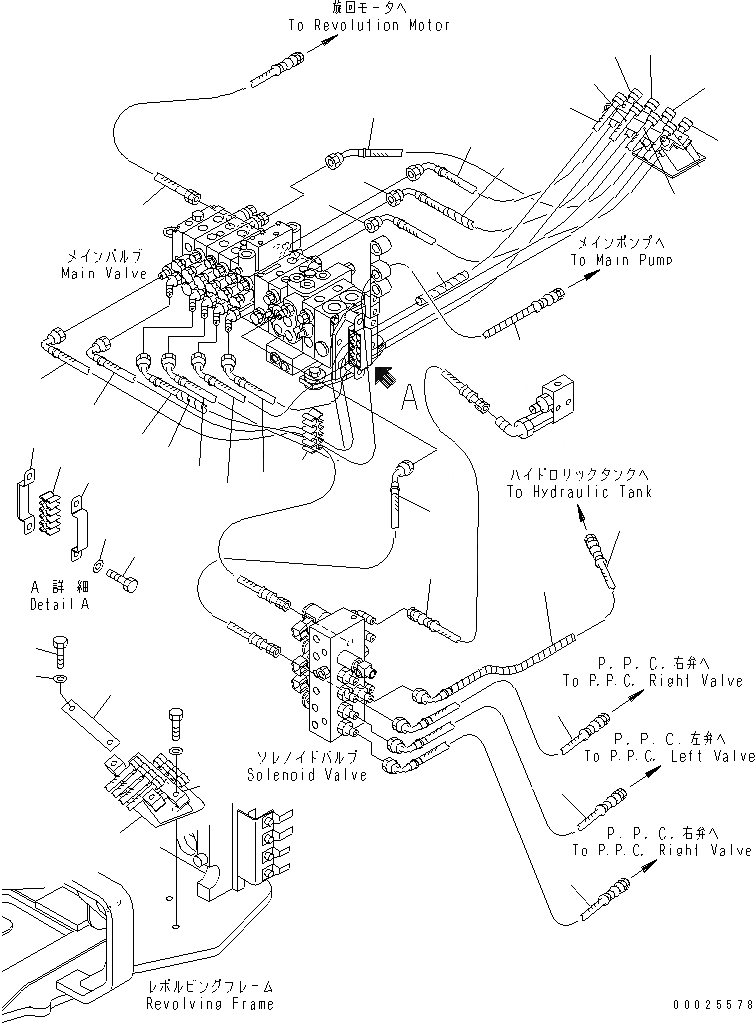

Запчасти Komatsu PC38UU-3 РАБОЧ. УПРАВЛ-Е (ТРУБЫ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

21X-62-32320

HOSE

|1

21X-62-31990

HOSE¤ 590MM,BLACK

2

20C-62-34610

HOSE

|2

21X-62-31761

HOSE¤ 420MM,ORANGE

3

20C-62-34650

HOSE

|3

22F-62-11420

HOSE¤ 380MM,RED

4

21X-62-31742

HOSE

|4

21X-62-31741

HOSE¤ 570MM,WHITE

4A

08210-01201

SPIRAL TUBE

5

21X-62-31782

HOSE

|5

21X-62-31791

HOSE¤ 200MM,YELLOW

6

21X-62-31782

HOSE

|6

21X-62-31781

HOSE¤ 230MM,GREEN

7

21X-62-31951

HOSE

|7

21X-62-31950

HOSE¤ 730MM,BLUE

8

21X-62-31772

HOSE

|8

21X-62-31771

HOSE¤ 290MM,BLACK-WHITE

9

21X-62-31732

HOSE

|9

21X-62-31731

HOSE¤ 850MM,BROWN

9A

08210-01201

SPIRAL TUBE

10

203-62-52320

HOSE¤ 300MM

11

21X-62-32761

HOSE

|11

21X-62-32760

HOSE

12

22F-62-14290

HOSE

13

08210-01201

SPIRAL TUBE

13A

08210-01203

SPIRAL TUBE

14

21X-62-31961

HOSE¤ 560MM,BLACK

|14

21X-62-31960

HOSE¤ 560MM,BLACK

15

21X-62-31971

HOSE¤ 490MM,GREEN

|15

21X-62-31970

HOSE¤ 490MM,GREEN

16

21X-62-31981

HOSE¤ 510MM,YELLOW

|16

21X-62-31980

HOSE¤ 510MM,YELLOW

17

20U-62-23780

HOSE¤ 330MM,RED-GREEN

18

07621-00315

HOSE

|18

07102-20215

HOSE,BLUE-WHITE

19

08210-01214

SPIRAL TUBE

20

21X-62-31920

CLIP

21

21X-62-31910

CLAMP

22

01010-81020

BOLT

23

01643-31032

WASHER

24

21X-62-32310

BRACKET

25

22F-62-12631

PLATE

26

01010-81020

BOLT

27

01643-31032

WASHER
