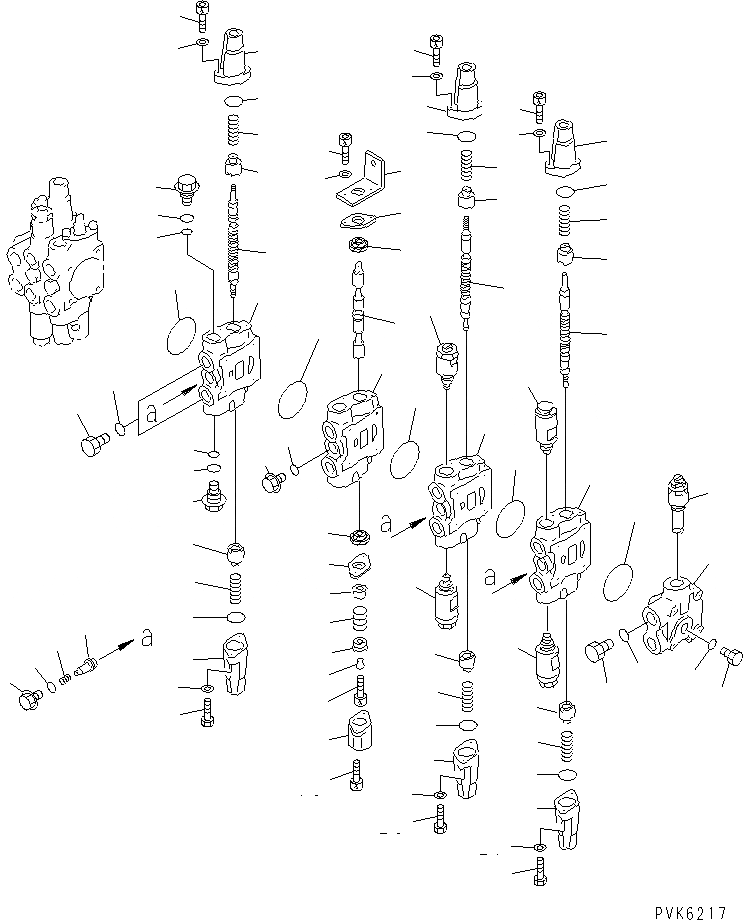

Запчасти Komatsu PC38UU-2 ОСНОВН. КЛАПАН (-КЛАПАН) (ДЛЯ КЛАПАН ЛЕВ.) (/) (ДЛЯ МОЛОТА РУКОЯТЬ)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-36-14600

VALVE ASS'Y

|1

709-36-00211

VALVE SUB ASS'Y

|1

BODY SUB ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK,VALVE

6

07000-12055

O-RING

7

SPOOL

8

SPOOL

9

SPOOL

10

SPOOL

11

709-32-11530

SEAL

12

709-32-11540

PLATE

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11580

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30616

BOLT

19

709-32-12890

PLATE

20

01252-30618

BOLT

21

01643-30623

WASHER

22

709-32-12840

RETAINER

23

709-32-13510

SPRING

24

709-32-12851

CASE

25

709-32-11760

O-RING

26

01252-30622

BOLT

27

01641-20608

WASHER

28

07040-11007

PLUG

29

07002-11023

O-RING

30

709-32-12871

VALVE

31

722-10-91130

SPRING

32

709-32-12861

PLUG

33

709-32-11930

PLUG

34

07002-11823

O-RING

35

709-32-11830

PLUG

36

709-32-11840

O-RING

37

07002-02034

O-RING

38

07040-11812

PLUG

39

07002-11823

O-RING

40

07040-12012

PLUG

41

07002-02034

O-RING

42

700-28-55000

VALVE ASS'Y,RELIEF

43

709-30-66700

SAFETY VALVE ASS'Y

44

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

45

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY
