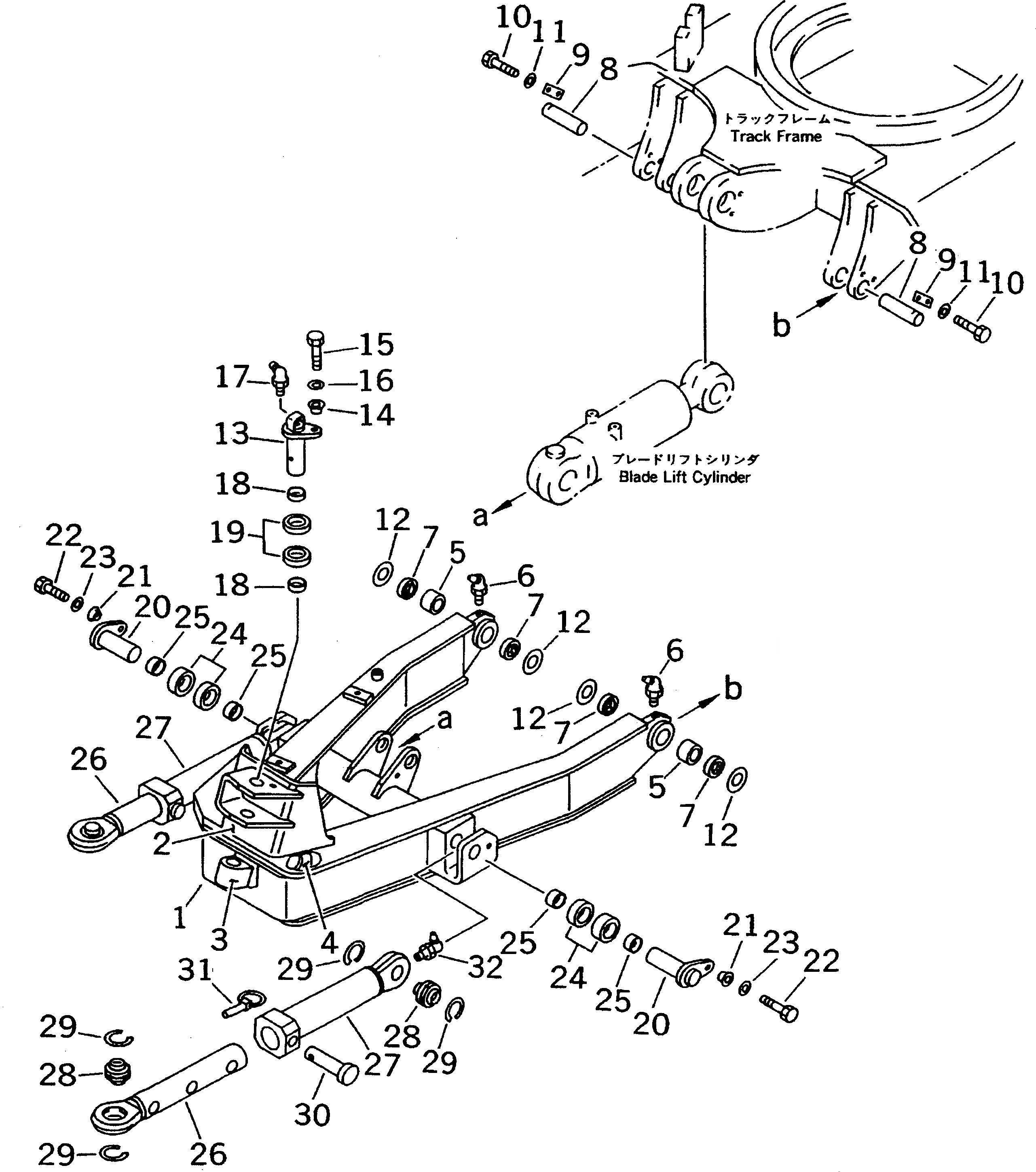

Запчасти Komatsu PC38UU-2 ОТВАЛ (РАМА) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ANGLE) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20S-910-0010

FRAME ASS'Y

1

FRAME

|1

FRAME

2

21X-910-2350

BRACKET (WELDED)

|2

20S-910-3220

BRACKET

3

101-71-12140

PIN (WELDED)

4

101-71-12150

COLLAR (WELDED)

5

07144-10304

BUSHING

6

07020-00675

FITTING,GREASE

7

07145-00035

SEAL,DUST

8

20S-70-71240

PIN

9

04082-00212

LOCK

10

01010-81230

BOLT

11

01643-31232

WASHER

12

20T-70-81720

SPACER¤ 1.0MM

|12

20R-70-11270

SPACER¤ 1.0MM

13

20U-910-1231

PIN

14

20S-70-31180

SPACER

15

01010-81230

BOLT

16

01643-31232

WASHER

17

07020-00675

FITTING,GREASE

18

20U-910-1280

COLLAR

19

20U-910-1290

BUSHING

20

20U-910-1241

PIN

21

20S-70-31180

SPACER

22

01010-81230

BOLT

23

01643-31232

WASHER

24

104-72-21990

BUSHING

25

104-72-21960

COLLAR

26

21X-910-2830

ROD ASS'Y

|26

20S-910-3240

ROD ASS'Y

27

20U-910-1330

BRACE

28

104-72-21920

BEARING

29

04067-00055

RING,SNAP

30

20U-910-1351

PIN

31

421-46-12740

PIN,LINCH

32

07020-00900

FITTING,GREASE
