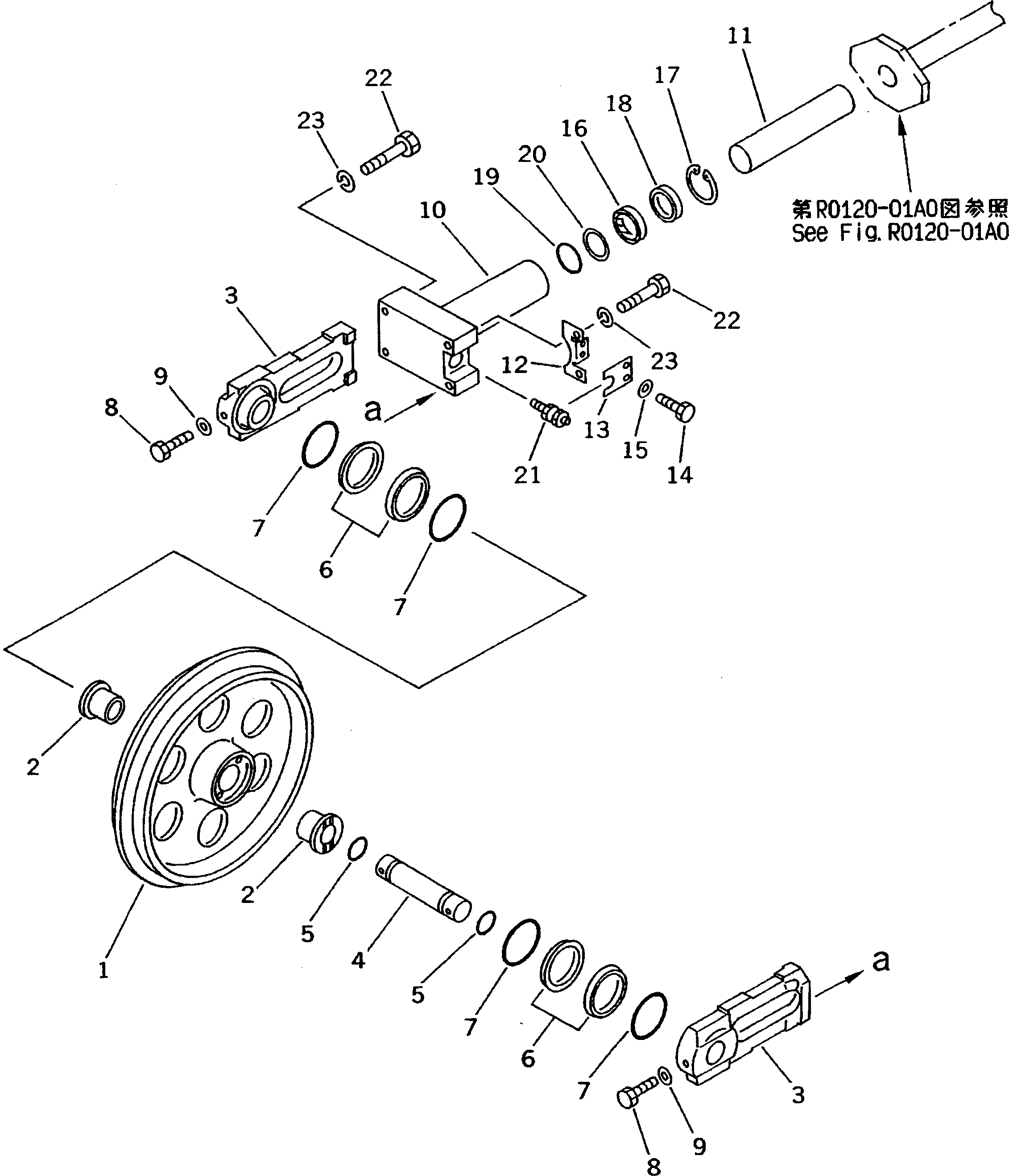

Запчасти Komatsu PC38UU-2 ПЕРЕДН. ЛЕНИВЕЦ (ДЛЯ РЕЗИН. SHOE)(№-8) ХОДОВАЯ

|1

20S-30-00120

IDLER ASS'Y

1

20S-30-72511

IDLER

2

20T-30-11190

BUSHING

3

20S-30-72120

SUPPORT

4

20R-30-11240

SHAFT

5

07000-03028

O-RING

|6

140-30-00141

FLOATING SEAL ASS'Y

6

RING,SEAL

7

O-RING

8

01090-51045

BOLT

9

01643-31032

WASHER

10

20T-30-41510

CYLINDER

11

20T-30-41520

ROD

12

20U-30-12180

PLATE

13

20U-30-12170

PLATE

14

01010-50820

BOLT

15

01643-30823

WASHER

16

201-30-24170

SPACER

17

04065-05220

RING,SNAP

18

07016-00407

SEAL,DUST

19

07000-13040

O-RING

20

20R-30-21550

RING,BACK-UP

21

07959-20001

VALVE,LUBRICATION

22

01010-51260

BOLT

23

01602-21236

WASHER,SPRING
