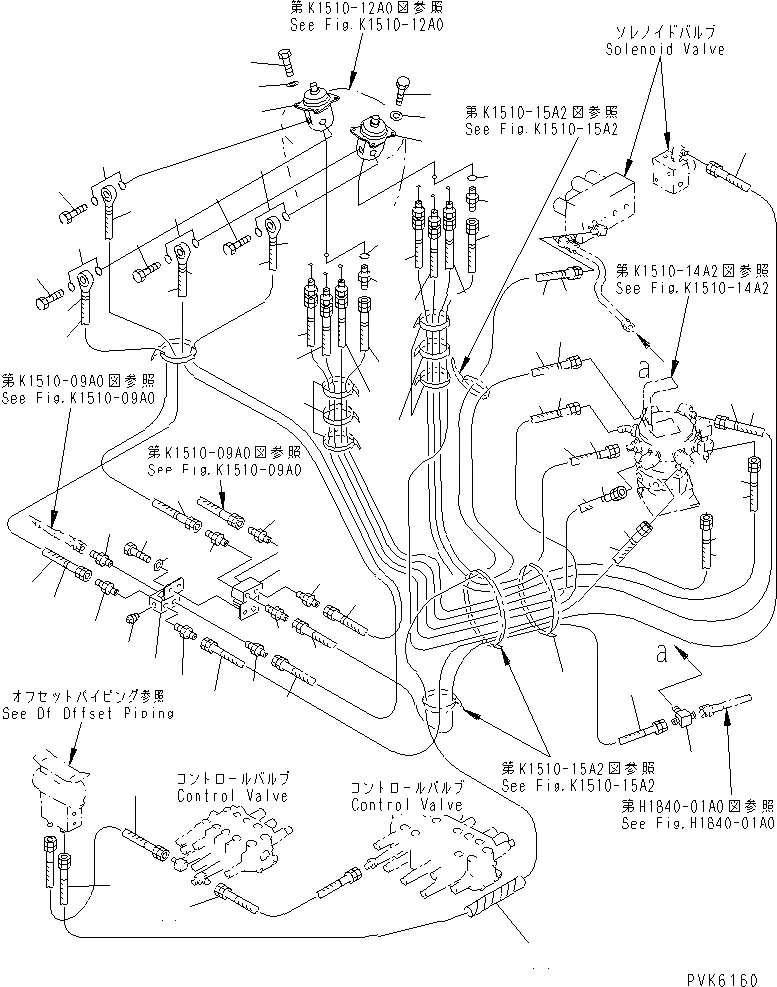

Запчасти Komatsu PC38UU-2 РАБОЧ. УПРАВЛ-Е (P.P.C. ТРУБЫ) (ДЛЯ MULTIPLE PATTERN УПРАВЛ-Е) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01091

PILOT VALVE,(SEE FIG.Y1670-11A0)

2

01010-80820

BOLT

3

01643-30823

WASHER

4

21X-62-22350

HOSE

5

21X-62-22360

HOSE

6

702-16-53240

PLUG,(WITH STRAINER)

7

07000-02018

O-RING

8

21X-62-22750

PLATE

9

01010-81030

BOLT

10

01643-31032

WASHER

11

07042-70108

PLUG

12

07238-10210

CONNECTOR

13

21W-62-22780

HOSE

14

21X-62-22350

HOSE

15

21X-62-22360

HOSE

16

203-62-57730

BOLT,EYE

17

07000-02018

O-RING

18

20U-62-23560

PLATE

19

07238-10210

CONNECTOR

20

21X-62-22320

HOSE

21

21X-62-22970

ELBOW

22

21A-62-12360

NIPPLE

23

07002-01423

O-RING

24

21X-62-23110

HOSE

25

21X-62-23230

HOSE

26

21X-62-23340

HOSE

27

21X-62-22690

HOSE

28

21X-62-23160

HOSE

29

21X-62-23170

HOSE

30

21X-62-23180

HOSE

31

203-62-57910

MARK, 1

32

203-62-57920

MARK, 2

33

203-62-57930

MARK, 3

34

203-62-57940

MARK, 4

35

203-62-57950

MARK, 5

36

203-62-57960

MARK, 6

37

203-62-57970

MARK, 7

38

203-62-57980

MARK, 8

39

203-62-57990

MARK, 10

40

08034-00536

BAND

41

21X-62-22630

HOSE

42

21X-62-23270

HOSE

43

08034-00536

BAND

44

203-62-32440

COVER

45

20Y-62-22790

BAND, RED

45

203-62-58160

MARK, P1

46

20Y-62-22850

BAND, GREEN

46

203-62-58170

MARK, P2

47

20Y-62-22820

BAND, BLUE

47

203-62-58210

MARK, T1

48

20Y-62-22830

BAND, WHITE

48

203-62-58220

MARK, T2
