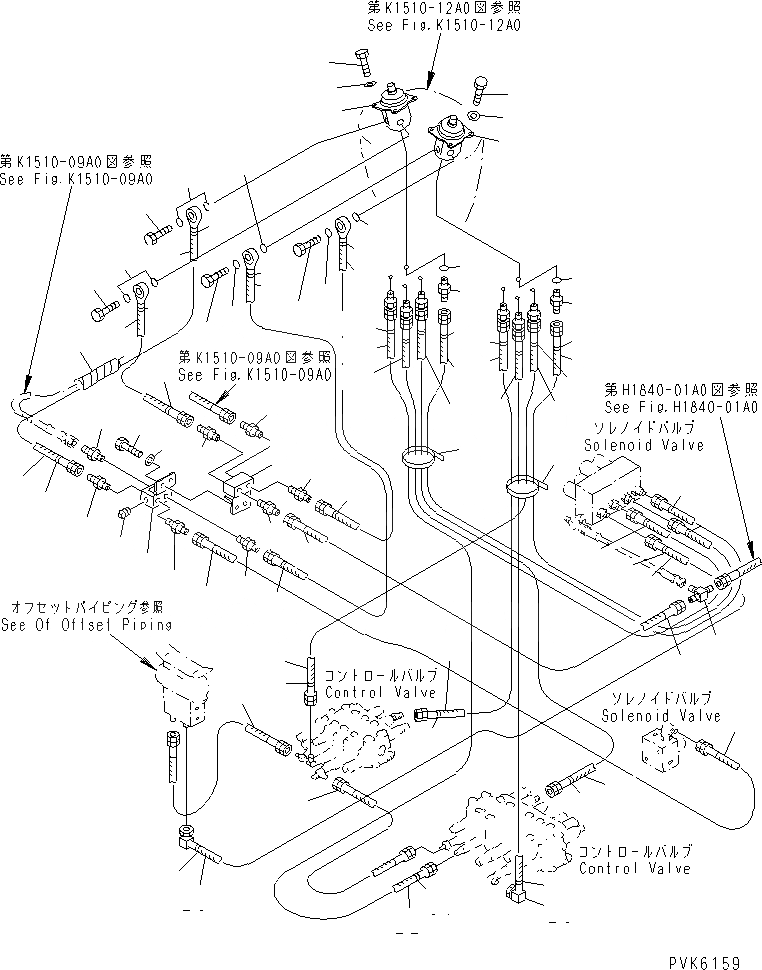

Запчасти Komatsu PC38UU-2 РАБОЧ. УПРАВЛ-Е (P.P.C. ТРУБЫ) (JIS PATTERN)(№8-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01091

PILOT VALVE,(SEE FIG.Y1670-11A0)

2

01010-80820

BOLT

3

01643-30823

WASHER

4

702-16-53240

PLUG,(WITH STRAINER)

5

07000-02018

O-RING

6

21X-62-22750

PLATE

7

01010-81030

BOLT

8

01643-31032

WASHER

9

07042-70108

PLUG

10

07238-10210

CONNECTOR

11

21W-62-22780

HOSE

12

203-62-57730

BOLT,EYE

13

07000-02018

O-RING

14

20U-62-23560

PLATE

15

07238-10210

CONNECTOR

16

21X-62-22320

HOSE

17

21X-62-22970

ELBOW

18

21A-62-12360

NIPPLE

19

07002-01423

O-RING

20

21X-62-22690

HOSE

21

21X-62-23110

HOSE

22

21X-62-22680

HOSE

23

21X-62-22740

HOSE

24

21X-62-22720

HOSE

25

21X-62-23110

HOSE

26

21X-62-22730

HOSE

27

21X-62-22350

HOSE

28

21X-62-22360

HOSE

29

203-62-57910

MARK, 1

30

203-62-57920

MARK, 2

31

203-62-57930

MARK, 3

32

203-62-57940

MARK, 4

33

203-62-57950

MARK, 5

34

203-62-57960

MARK, 6

35

203-62-57970

MARK, 7

36

203-62-57980

MARK, 8

37

203-62-57990

MARK, 10

38

203-62-58160

MARK, P1

39

203-62-58170

MARK, P2

40

203-62-58210

MARK, T1

41

203-62-58220

MARK, T2

42

21X-62-22630

HOSE

43

21X-62-23270

HOSE

44

08034-00536

BAND

45

203-62-32440

COVER
