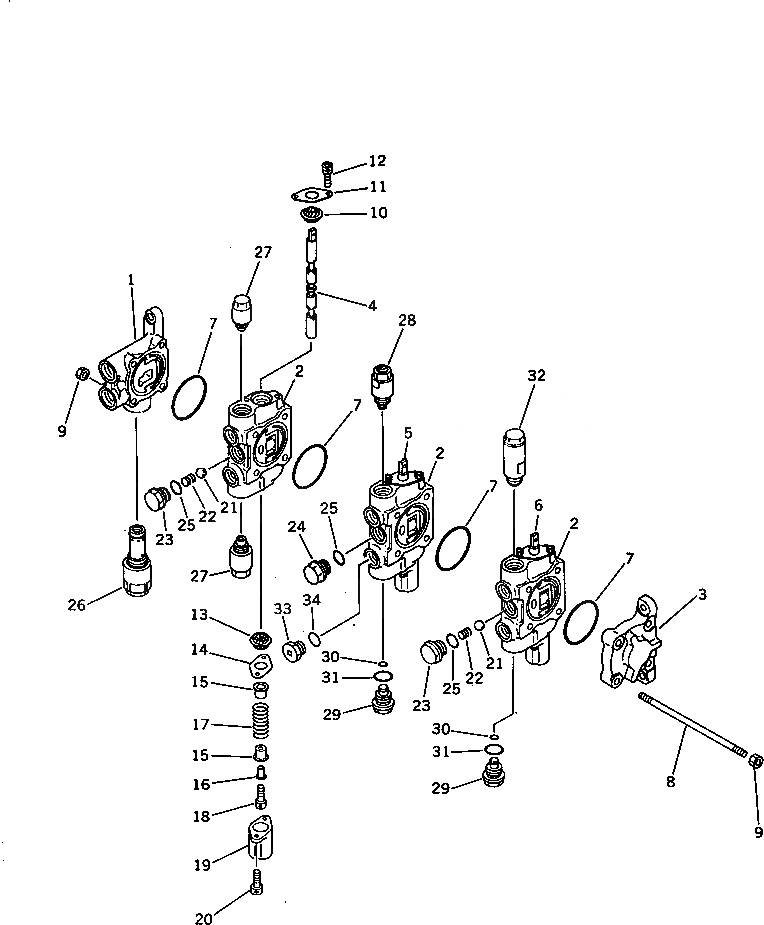

Запчасти Komatsu PC38UU-1 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-33-12101

VALVE ASS'Y

|$1

709-33-12100

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

COVER

4

SPOOL,SWING

5

SPOOL,TRAVEL SPEED

6

SPOOL,BLADE

7

07000-12055

O-RING

8

709-33-11510

STUD

9

01580-10806

NUT

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

01252-30610

BOLT

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30616

BOLT

21

04260-01270

BALL

22

709-32-11820

SPRING

23

709-32-11810

PLUG

24

709-32-11930

PLUG

25

07002-11823

O-RING

26

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF

27

709-30-61100

VALVE ASS'Y,SUCTION

28

709-30-65703

VALVE ASS'Y,SAFETY

29

709-32-11830

PLUG

30

709-32-11840

O-RING

31

07002-02034

O-RING

32

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

32

709-30-63800

VALVE ASS'Y,SUCTION AND SAFETY

33

07040-11012

PLUG

34

07002-11823

O-RING
