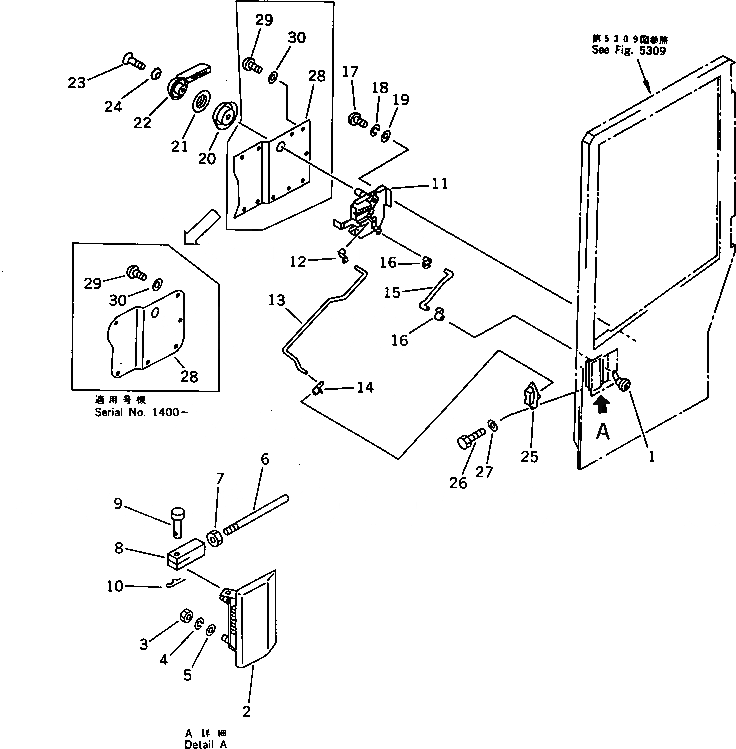

Запчасти Komatsu PC38UU-1 КАБИНА (/7) (ДВЕРЬ /) ЧАСТИ КОРПУСА

|$0

21X-54-00011

OPERATOR'S CAB ASS'Y

|$1

21X-54-00010

OPERATOR'S CAB ASS'Y

|$3

21W-54-00022

DOOR ASS'Y

|$4

21W-54-00020

DOOR ASS'Y

1

205-54-71642

LOCK ASS'Y

2

205-54-72101

HANDLE ASS'Y

3

01580-10605

NUT

4

01602-20619

WASHER,SPRING

5

01641-20608

WASHER

6

21W-54-14260

ROD

7

01580-10605

NUT

8

04211-20634

YOKE

9

04205-10620

PIN

10

04052-00633

PIN,SNAP

11

21W-54-14250

CONTROL ASS'Y,REMOTE

12

205-54-71840

SNAP

13

21W-54-14271

ROD

14

205-54-71840

SNAP

15

21W-54-14281

ROD

16

205-54-71830

SNAP

17

01220-40610

SCREW

18

01602-20619

WASHER,SPRING

19

01641-20608

WASHER

20

566-54-24260

BASE

21

566-54-24270

ESCUTCHEON

22

205-54-71760

HANDLE

23

01225-40510

SCREW

24

205-54-71880

WASHER,LOCK

25

205-54-71710

LOCK ASS'Y

26

01010-50616

BOLT

27

01643-30623

WASHER

28

21W-54-14222

COVER

28

21W-54-14220

COVER

29

01370-00412

SCREW

29

01370-00412

SCREW

30

01641-20405

WASHER

30

01641-20405

WASHER
