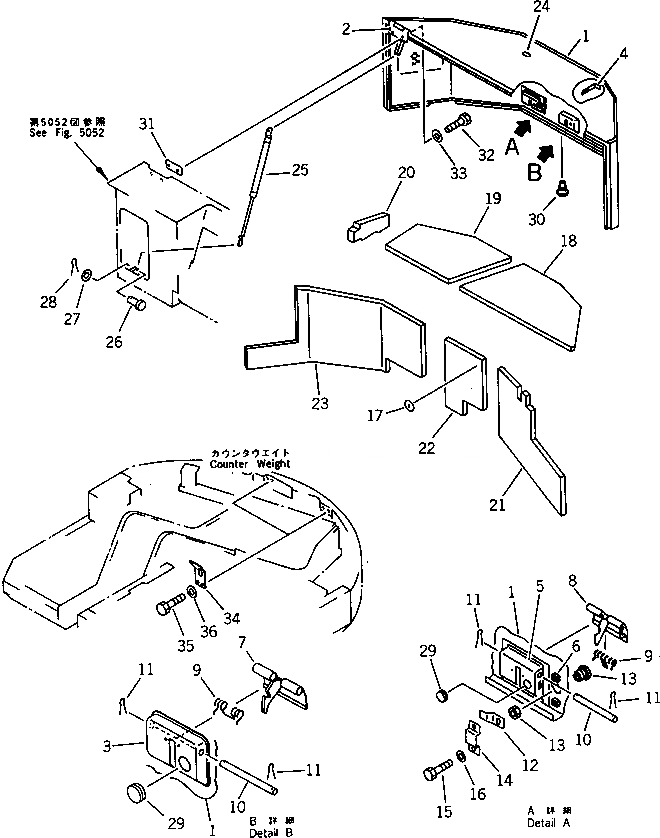

Запчасти Komatsu PC38UU-1 MACHINERY ОБСТАНОВКА (/) (АНТИВАНДАЛЬН.) ЧАСТИ КОРПУСА

1

21X-54-11910

HOOD

2

21X-54-11261

HINGE (WELDED)

2

21X-54-11260

HINGE (WELDED)

3

20U-54-11640

COVER (WELDED)

4

04431-11000

CLIP (WEDLED)

5

21X-54-11930

COVER (WEDLED)

6

01572-20812

SEAT (WELDED)

7

20U-54-11781

LEVER

7

20U-54-11780

LEVER

8

21X-54-11920

LEVER

9

20T-54-26430

SPRING

10

20S-54-21460

PIN

11

04050-13018

PIN,COTTER

12

20R-54-23240

PLATE

13

20N-54-41830

LOCK ASS'Y

14

20T-54-28130

COVER

15

01010-50812

BOLT

16

01643-30823

WASHER

17

04431-30000

PLATE

18

21X-54-11140

SHEET

19

21X-54-11170

SHEET

20

21X-54-11180

SHEET

21

21X-54-11151

SHEET

22

21X-54-11210

SHEET

23

21X-54-11940

SHEET

24

205-00-63770

PLATE

G-1

21X-54-X0090

HOOD MOUNTING GROUP

25

20U-54-11632

SPRING,GAS

25

20U-54-11631

SPRING,GAS

26

04205-10828

PIN

27

01641-20812

WASHER

28

04052-10833

PIN,SNAP

29

09415-02110

CAP

30

203-54-32260

STOPPER

31

21W-54-11680

GASKET

32

01010-51025

BOLT

33

01643-31032

WASHER

34

20R-54-21170

LOCK

35

01010-51025

BOLT

36

01643-31032

WASHER
