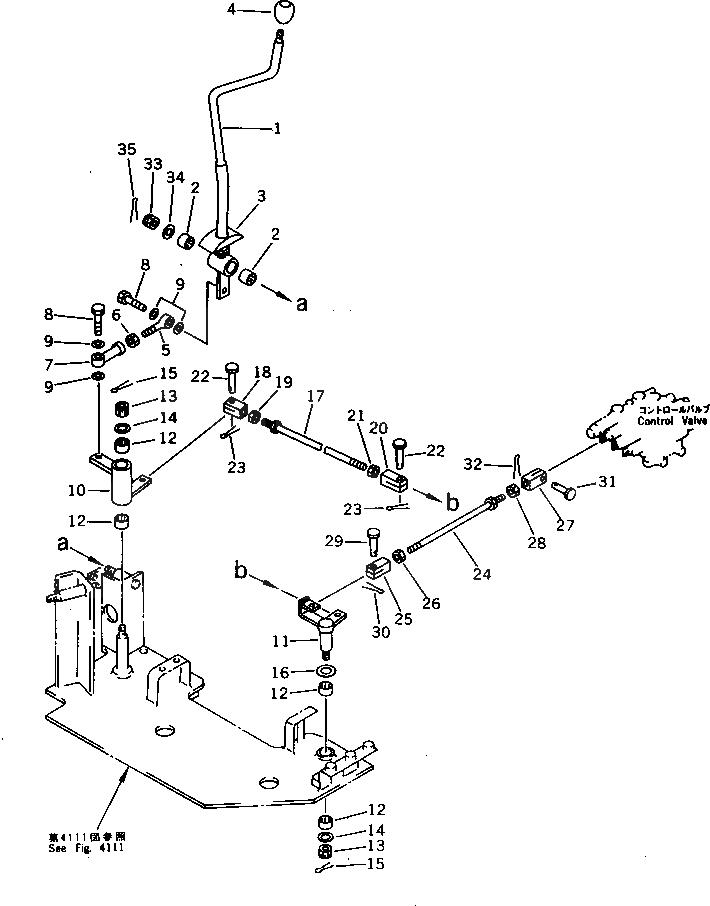

Запчасти Komatsu PC38UU-1 РЫЧАГ УПРАВЛЕНИЯ ОТВАЛОМ И МЕХАНИЗМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

G-1

21X-43-X0090

BLADE CONTROL GROUP

1

20U-43-11331

LEVER

2

195-61-34130

BEARING

3

20S-43-11230

COVER

4

203-43-41910

KNOB

5

04252-21061

END,ROD

6

01582-11008

NUT

7

04250-41056

END,ROD

8

01010-51035

BOLT

9

01643-31032

WASHER

G-2

21X-43-X0060

ROD GROUP,BLADE

10

21X-43-11350

LEVER

11

21X-43-11360

LEVER

12

195-61-34130

BEARING

13

01592-11215

NUT

14

01643-31445

WASHER

15

04050-13022

PIN,COTTER

16

01643-32060

WASHER

17

04248-31049

ROD

18

20T-43-22210

YOKE

19

01582-11008

NUT

20

20S-43-12150

YOKE,L.H. THREAD

21

01508-41006

NUT,L.H. THREAD

22

04205-10822

PIN

23

04050-12012

PIN,COTTER

24

04248-31029

ROD

25

20S-43-12150

YOKE,L.H. THREAD

26

01508-41006

NUT,L.H. THREAD

27

20S-43-21570

YOKE

28

01582-11008

NUT

29

04205-10822

PIN

30

04050-12012

PIN,COTTER

31

04205-10520

PIN

32

04050-11210

PIN,COTTER

33

01592-11215

NUT

34

01643-31445

WASHER

35

04050-13022

PIN,COTTER
