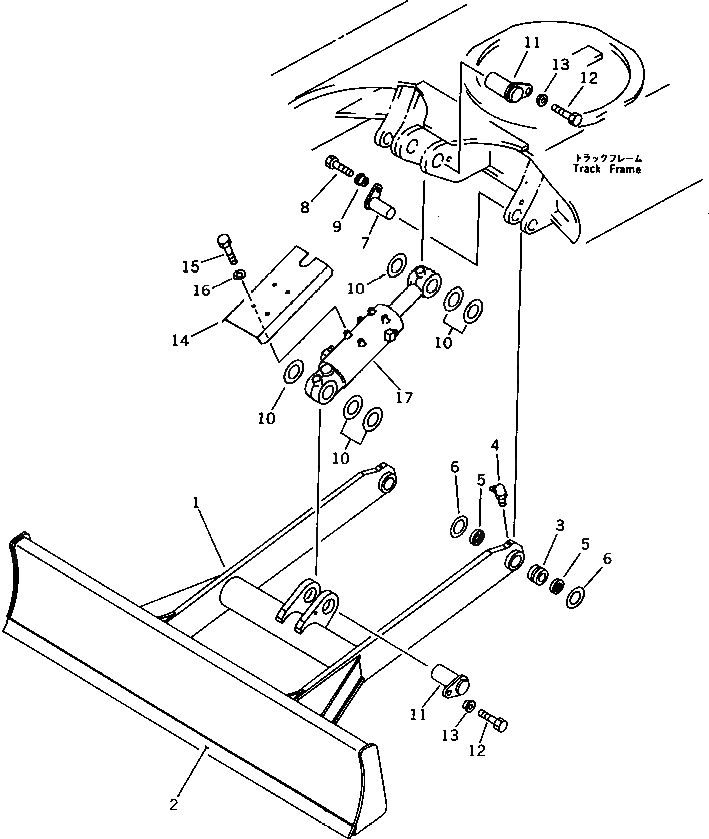

Запчасти Komatsu PC38UU-1 ОТВАЛ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

21X-71-00040

BLADE ASS'Y

1

BLADE ASS'Y

2

20T-71-41120

EDGE,CUTTING (WELDED)

3

07144-10304

BUSHING

4

07020-00675

FITTING,GREASE

5

07145-00035

SEAL,DUST

G-1

20T-71-X1200

BLADE PIN GROUP

6

20R-70-11270

SPACER, 1.0MM

7

20S-71-31221

PIN

8

01010-51225

BOLT

9

20S-70-31180

SPACER

G-2

20T-71-X1300

CYLINDER PIN GROUP,BLADE

10

20S-71-11230

SHIM, 1.0MM

10

20S-71-11240

SPACER, 2.3MM

11

20T-71-41211

PIN

12

01010-51225

BOLT

13

20S-70-31190

SPACER

G-3

21X-71-X1401

CYLINDER COVER GROUP,BLADE

G-3

21X-71-X1400

CYLINDER COVER GROUP,BLADE

14

21X-71-11121

COVER

14

21X-71-11120

COVER

15

01010-51016

BOLT

16

01643-31032

WASHER

17

21X-63-02050

CYLINDER ASS'Y,BLADE (SEE FIG.7551)
