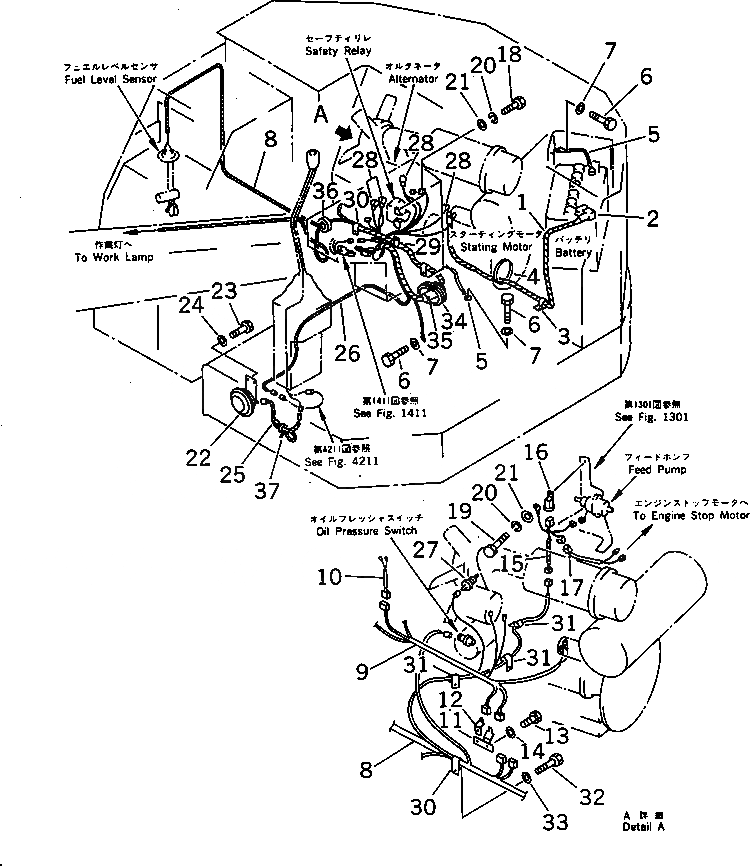

Запчасти Komatsu PC38UU-1 ЭЛЕКТРИКА КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

21X-06-11311

WIRE

2

20S-06-13230

TERMINAL COVER,TERMINAL

3

424-09-12550

CLIP

4

20T-62-57690

BAND

5

20R-06-11240

WIRE

6

01010-51016

BOLT

7

01643-31032

WASHER

8

21X-06-11231

WIRING HARNESS

8

203-06-57241

FUSIBLE LINK

9

21X-06-11240

WIRING HARNESS

10

20S-06-21380

WIRE

11

21X-06-11270

BRACKET

12

08053-01512

CLIP

12

7821-92-5110

BRACKET

13

01010-51020

BOLT

14

01643-31032

WASHER

15

21X-06-11332

WIRING HARNESS

15

21X-06-11331

WIRING HARNESS

16

21X-06-12310

RELAY ASS'Y

17

22W-06-13590

DIODE

18

01010-50612

BOLT

19

01010-50620

BOLT

20

01602-20619

WASHER,SPRING

21

01643-30623

WASHER

22

08160-41200

HORN

23

01010-50816

BOLT

24

01643-30823

WASHER

25

21X-06-11420

WIRE

26

21X-06-11410

WIRE

27

198-06-11940

SENSOR,WATER TEMPERATURE

28

08038-00519

CAP

29

08036-01814

CLIP

30

08036-03014

CLIP

31

08036-01414

CLIP

32

01010-51016

BOLT

33

01643-31032

WASHER

34

203-06-41550

GROMMET

35

21X-06-11260

BUSHING

36

08037-03614

GROMMET

37

08034-00414

BAND
