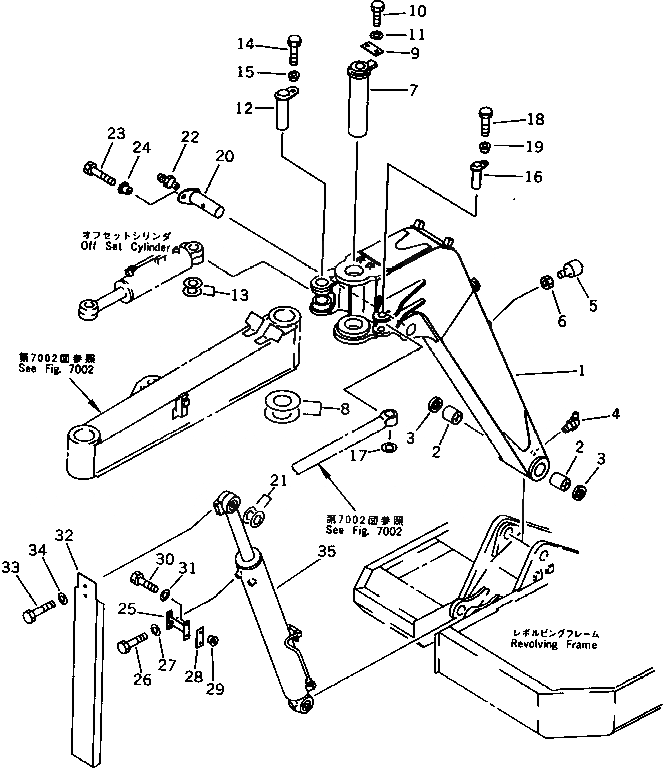

Запчасти Komatsu PC38UU-1 1-Я СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

21X-70-00100

BOOM ASS'Y,1ST

1

BOOM,1ST

2

20T-70-41121

BUSHING

G-1

21X-70-X1110

1ST BOOM SEAL GROUP

3

07145-00050

SEAL,DUST

4

07020-00675

FITTING,GREASE

5

09453-00002

STOPPER

6

01580-11210

NUT

G-2

21X-70-X1200

BOOM PIN GROUP

7

21X-70-11240

PIN

8

203-70-11210

SPACER, 1.0MM

8

203-70-11220

SPACER, 2.0MM

8

203-70-34270

SPACER, 0.5MM

9

21X-70-11310

PLATE

10

01010-51225

BOLT

11

01643-31232

WASHER

12

21X-70-11350

PIN

13

20T-70-19130

SPACER, 1.0MM

14

01010-51635

BOLT

15

20T-70-41160

SPACER

16

21X-70-11230

PIN

17

21X-70-11340

SPACER, 1.0MM

18

01010-51225

BOLT

19

20S-70-31180

SPACER

20

21X-70-11180

PIN

21

201-70-23140

SPACER, 1.0MM

22

07020-00000

FITTING,GREASE

23

01010-51635

BOLT

24

20T-70-41160

SPACER

G-3

21X-70-X1600

CYLINDER COVER GROUP,BOOM

25

21X-70-11291

BRACKET

25

21X-70-11290

BRACKET

26

01010-50816

BOLT

27

01643-30823

WASHER

28

21X-70-11410

PAD

29

21X-70-11420

COLLAR

30

01010-50612

BOLT

31

01643-30623

WASHER

32

21X-70-11281

COVER

32

21X-70-11280

COVER

33

01010-51025

BOLT

34

01643-31032

WASHER

35

21X-63-02010

CYLINDER ASS'Y,BOOM (SEE FIG.7051)
