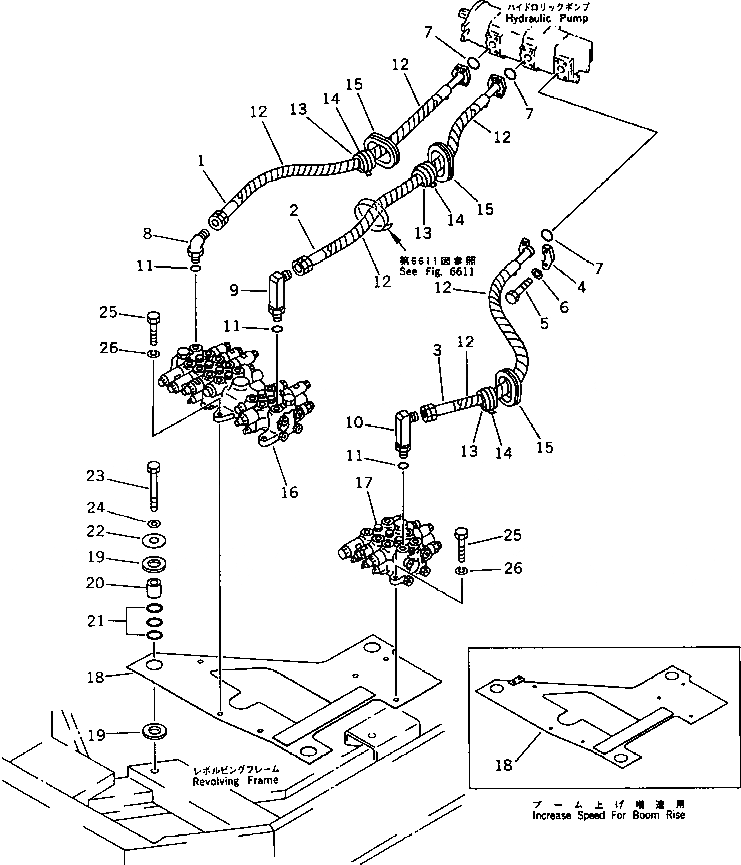

Запчасти Komatsu PC38UU-1 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

21X-62-11180

HOSE

2

21X-62-11190

HOSE

3

21X-62-11210

HOSE

4

07371-30400

FLANGE

5

01010-50830

BOLT

6

01643-50823

WASHER

7

07000-12021

O-RING

8

07235-10422

ELBOW

9

20R-62-21510

ELBOW

10

20R-62-21520

ELBOW

11

07002-12034

O-RING

12

203-62-32440

COVER

13

202-98-11360

BUSHING

14

08034-00519

BAND

15

203-06-41550

GROMMET

16

709-36-13302

VALVE ASS'Y,(SEE FIG.6201)

|16

709-36-13301

VALVE ASS'Y,(SEE FIG.6201)

|16

709-36-13300

VALVE ASS'Y,(SEE FIG.6201)

17

709-33-12101

VALVE ASS'Y,(SEE FIG.6211)

|17

709-33-12100

VALVE ASS'Y,(SEE FIG.6211)

18

21X-60-11110

PLATE

|18

21X-60-11150

PLATE,(INCREASE SPEED FOR BOOM RISE)

19

203-62-58360

CUSHION

20

20X-62-21550

SPACER

21

07000-03025

O-RING

22

566-35-42430

PLATE

23

01010-51250

BOLT

24

01643-31232

WASHER

25

01010-50825

BOLT

26

01602-20825

WASHER,SPRING
