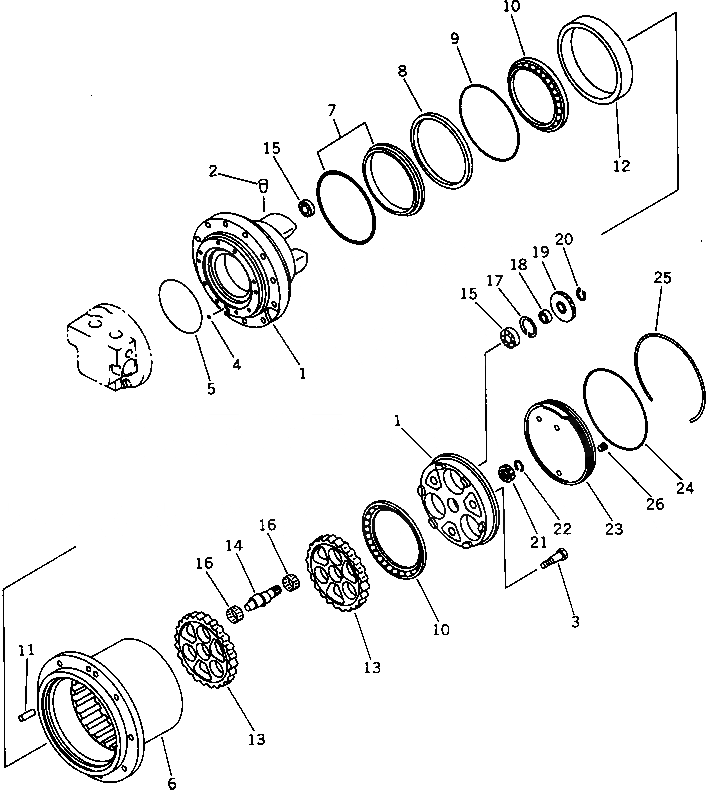

Запчасти Komatsu PC38UU-1 МОТОР ХОДА (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20T-60-42100

TRAVEL MOTOR ASS'Y

|1

TZ312B1102-00

SPINDLE KIT

1

TZ312B1132-00

SPINDLE ASS'Y

2

TZMB700-060

PLUG

3

TZ300A1019-00

BOLT,REAMER

4

07000-11007

O-RING (KIT)

5

TZJW1516-G26-9

O-RING (KIT)

6

TZ310B1001-01

HUB

7

TZES100-154-A

SEAL,FLOATING (KIT)

8

TZ310B1027-00

PIECE,DISTANCE

9

07000-15185

O-RING (KIT)

10

TZ310B1021-00

BEARING,BALL

11

TZ310B1017-00

PIN

12

TZ310B1020-00

COLLAR

|13

TZ310B1104-00

RV GEAR ASS'Y

13

TZ310B1204-00

RV GEAR KIT,(2PIS)

14

TZ310B1009-00

SHAFT,CRANK

15

TZ310B1022-00

BEARING,ROLLER

16

TZ310B1023-00

BEARING,ROLLER

17

TZ310B1013-00

SNAP RING KIT,(12KWDS)

18

TZ550A1014-00

PIECE,DISTANCE

19

TZ314B1107-00

SPUR GEAR KIT,(3PIS)

20

04064-02212

RING,SNAP

21

TZ314B1006-00

GEAR,INPUT

22

04064-01410

RING,SNAP

23

TZ310B1008-00

COVER

24

07000-15170

O-RING (KIT)

25

TZ300A1018-00

RING

26

TZGM3-8

PLUG

K1

TZ312B9000-00

SEAL KIT

|K1

TZJW1516-G26-9

O-RING

|K1

07000-12012

O-RING

|K1

TZ15Z-17-35-8

SEAL,OIL

|K1

07000-11007

O-RING

|K1

TZJB2401-P22-9

O-RING

|K1

TZES100-154-A

SEAL,FLOATING

|K1

07000-15185

O-RING

|K1

07000-15170

O-RING
