Запчасти Komatsu PC38UU-1 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

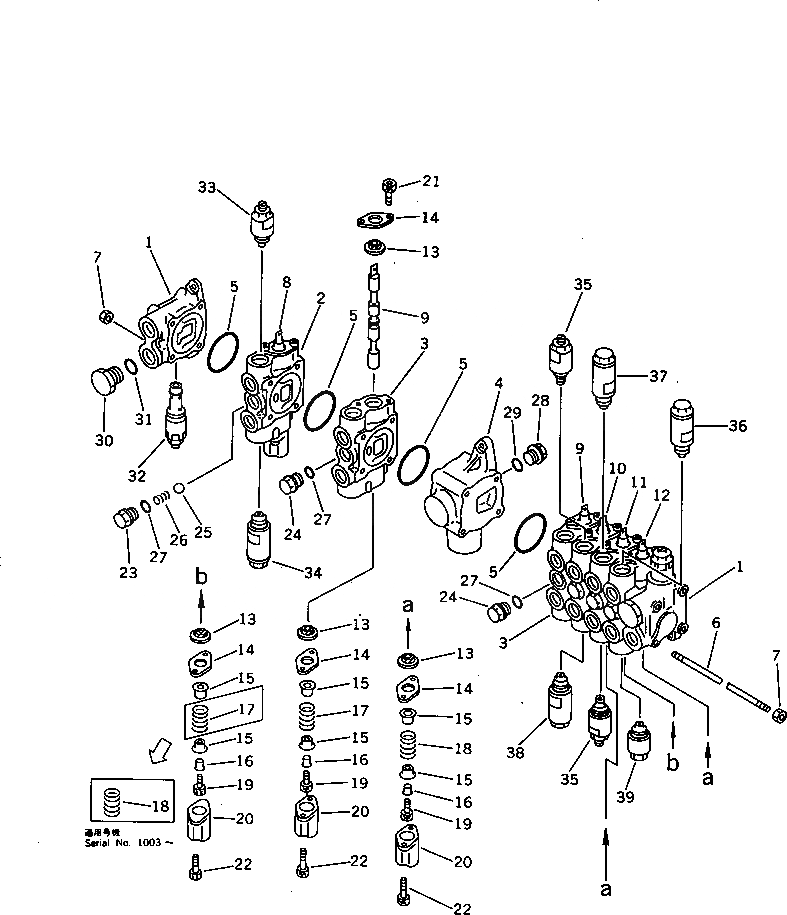

Схема запчастей Komatsu PC38UU-1 - 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-36-13302

VALVE ASS'Y

|1

709-36-13301

VALVE ASS'Y

|1

709-36-13300

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

07000-12055

O-RING

6

709-36-11510

STUD

7

01580-10806

NUT

8

SPOOL,ARM

9

SPOOL,TRAVEL

10

SPOOL,BUCKET

11

SPOOL,BOOM

12

SPOOL,BOOM OFFSET

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

|17

709-32-11580

SPRING

18

709-32-11590

SPRING

|18

709-32-11590

SPRING

19

01252-30620

BOLT

20

709-32-11570

COVER

21

01252-30610

BOLT

22

01252-30616

BOLT

23

709-32-11810

PLUG

24

709-32-11930

PLUG

25

04260-01270

BALL

26

709-32-11820

SPRING

27

07002-11823

O-RING

28

700-22-11370

PLUG

29

07002-02434

O-RING

30

07040-12012

PLUG

31

07002-02034

O-RING

32

700-28-55000

RELIEF VALVE ASS'Y,MAIN RELIEF

33

709-30-65900

VALVE ASS'Y,SUCTION AND SAFETY

34

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|34

709-30-63200

VALVE ASS'Y,SUCTION AND SAFETY

35

709-30-66200

VALVE ASS'Y,SAFETY

36

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY

|36

709-30-63601

VALVE ASS'Y,SUCTION AND SAFETY

37

709-30-63702

VALVE ASS'Y,SUCTION AND SAFETY

|37

709-30-63701

VALVE ASS'Y,SUCTION AND SAFETY

38

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|38

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

39

709-30-61100

VALVE ASS'Y,SUCTION

Выбрано товаров: 48
