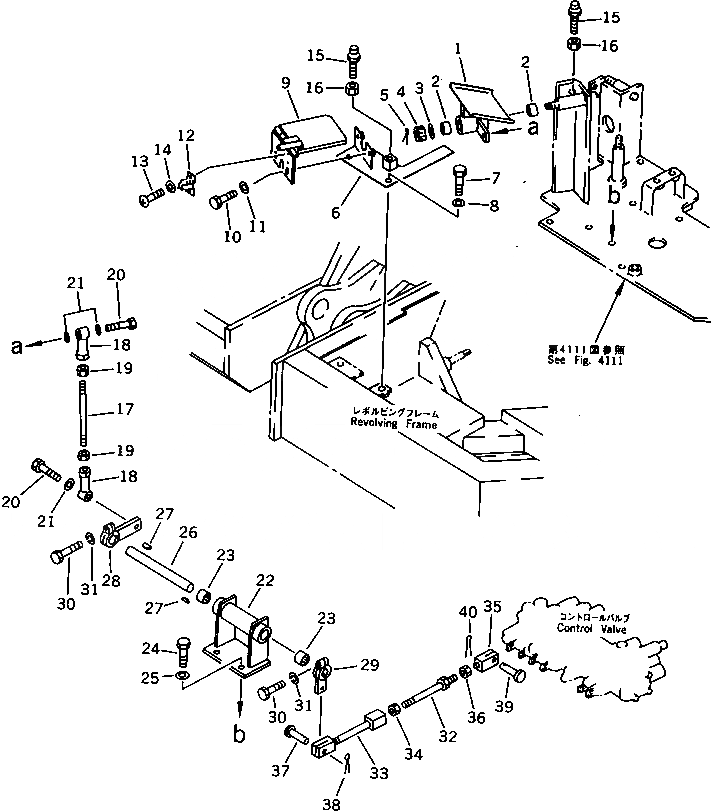

Запчасти Komatsu PC38UU-1 СТРЕЛА OFFSET ПЕДАЛЬ УПРАВЛ-Я И МЕХАНИЗМ СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

G-1

21X-43-X0051

CONTROL GROUP,BOOM OFFSET

G-1

21X-43-X0050

CONTROL GROUP,BOOM OFFSET

1

20U-43-11532

PEDAL

|1

20U-43-11531

PEDAL

2

195-61-34130

BEARING

3

01643-31445

WASHER

4

01592-11215

NUT

5

04050-13022

PIN,COTTER

6

20U-43-11513

COVER

|6

20U-43-11512

COVER

7

01010-51020

BOLT

8

01643-31032

WASHER

9

20U-43-11583

COVER

|9

20U-43-11582

COVER

10

01010-51025

BOLT

11

01643-31032

WASHER

12

20B-54-12210

SPRING

13

01220-40406

SCREW

14

01641-20405

WASHER

15

09311-41237

BUMPER

16

01580-11210

NUT

17

04245-41012

ROD

18

04250-41056

END,ROD

19

01582-11008

NUT

20

01010-51035

BOLT

21

01643-31032

WASHER

22

21X-43-11370

BRACKET

23

195-61-34130

BEARING

24

01010-51025

BOLT

25

01643-31032

WASHER

26

20U-43-11550

SHAFT

27

04010-00519

KEY

28

20U-43-11560

LEVER

29

20U-43-11570

LEVER

30

01010-50830

BOLT

31

01602-20825

WASHER,SPRING

G-2

21X-43-X0060

ROD GROUP,BOOM OFFSET

32

04248-31012

ROD

33

21X-43-11440

ROD

34

01508-41006

NUT,L.H. THREAD

35

20S-43-21570

YOKE

36

01582-11008

NUT

37

04205-10822

PIN

38

04050-12012

PIN,COTTER

39

04205-10520

PIN

40

04050-11210

PIN,COTTER
