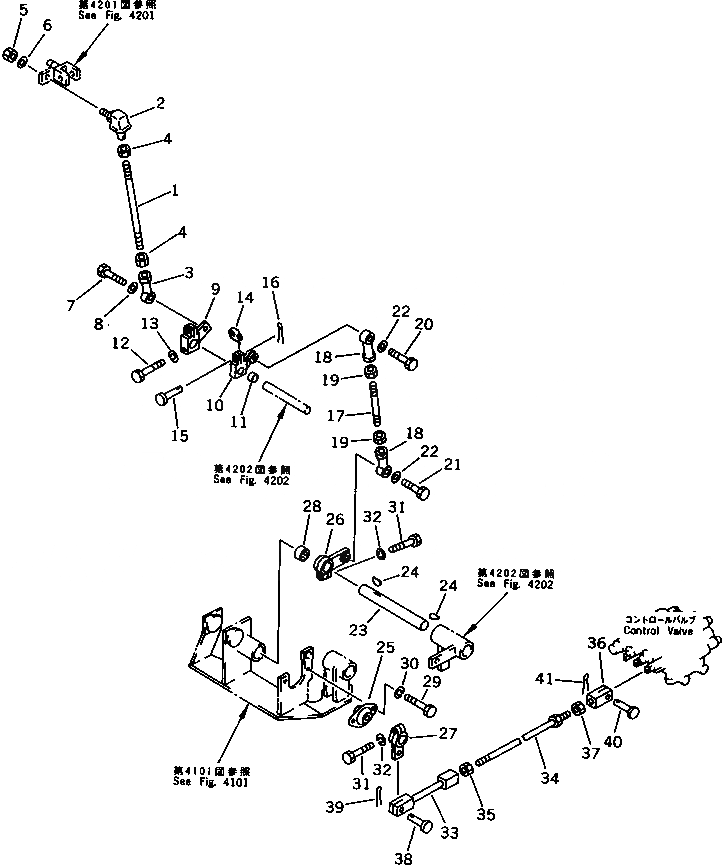

Запчасти Komatsu PC38UU-1 ПОВОРОТН. МЕХ-М УПРАВЛ-Я СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

G-1

21X-43-X0011

STAND GROUP,L.H.

G-1

21X-43-X0010

STAND GROUP,L.H.

1

04245-41019

ROD

2

207-43-11170

JOINT

3

04250-41056

END,ROD

4

01582-11008

NUT

5

01582-11008

NUT

6

01643-31032

WASHER

7

01010-51025

BOLT

8

04254-01032

SPACER

9

20S-43-24140

LEVER

10

20S-43-24150

LEVER

11

09350-01615

BUSHING

12

01010-50825

BOLT

13

01602-20825

WASHER,SPRING

14

20S-43-24190

PLATE

15

04205-10625

PIN

16

04050-11612

PIN,COTTER

17

04245-41013

ROD

18

04250-41056

END,ROD

19

01582-11008

NUT

20

01010-51025

BOLT

21

01010-51035

BOLT

22

04254-01032

SPACER

G-2

21X-43-X0040

TRAVEL CONTROL G.

23

20U-43-11250

SHAFT

24

04010-00519

KEY

25

20T-43-31310

BEARING

26

20U-43-11630

LEVER

27

20S-43-21530

LEVER

28

195-61-34130

BEARING

29

01010-50816

BOLT

30

01602-20825

WASHER,SPRING

31

01010-50830

BOLT

32

01602-20825

WASHER,SPRING

G-3

21X-43-X0060

ROD GROUP,SWING

33

20T-43-42510

ROD

34

04248-31036

ROD

35

01508-41006

NUT,L.H. THREAD

36

20S-43-21570

YOKE

37

01582-11008

NUT

38

04205-10822

PIN

39

04050-12012

PIN,COTTER

40

04205-10520

PIN

41

04050-11210

PIN,COTTER
