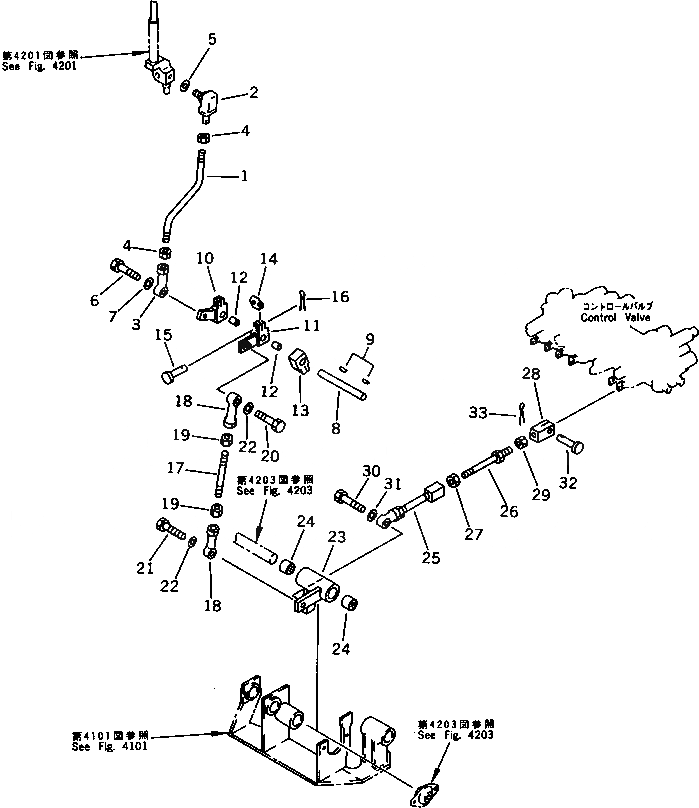

Запчасти Komatsu PC38UU-1 РУКОЯТЬ МЕХ-М УПРАВЛ-Я СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

G-1

21X-43-X0011

STAND GROUP,L.H.

G-1

21X-43-X0010

STAND GROUP,L.H.

1

20S-43-24210

ROD

2

207-43-11170

JOINT

3

04250-41056

END,ROD

4

01582-11008

NUT

5

01643-31032

WASHER

6

01010-51025

BOLT

7

04254-01032

SPACER

8

20S-43-24130

SHAFT

9

04010-00516

KEY

10

20S-43-24160

LEVER

11

20S-43-24170

LEVER

12

09350-01615

BUSHING

13

20S-43-24180

LEVER

14

20S-43-24190

PLATE

15

04205-10625

PIN

16

04050-11612

PIN,COTTER

17

04245-41011

ROD

18

04250-41056

END,ROD

19

01582-11008

NUT

20

01010-51025

BOLT

21

01010-51035

BOLT

22

04254-01032

SPACER

G-2

21X-43-X0040

TRAVEL CONTROL G.

23

21X-43-11220

LEVER

24

195-61-34130

BEARING

G-3

21X-43-X0060

ROD GROUP,ARM

25

21X-43-11230

ROD

26

04248-31012

ROD

27

01508-41006

NUT,L.H. THREAD

28

20S-43-21570

YOKE

29

01582-11008

NUT

30

01010-51030

BOLT

31

01643-31032

WASHER

32

04205-10520

PIN

33

04050-11210

PIN,COTTER
