Запчасти Komatsu PC38UU-1 ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

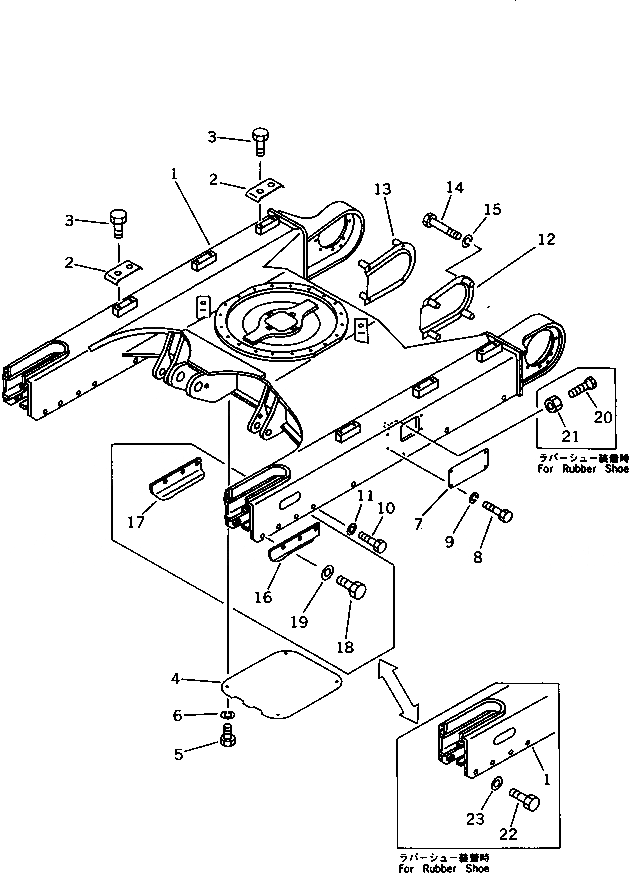

Схема запчастей Komatsu PC38UU-1 - ГУСЕНИЧНАЯ РАМА ХОДОВАЯ

Артикул

Название

Примечание

Количество

1

20T-30-41111

FRAME,TRACK

|1

20T-30-41110

FRAME,TRACK

2

20S-30-31190

PLATE

3

01010-51220

BOLT

4

20S-30-21120

COVER

5

01010-51016

BOLT

6

01602-21030

WASHER,SPRING

7

20S-30-31170

COVER

8

01010-51020

BOLT

9

01602-21030

WASHER,SPRING

10

01010-51635

BOLT

11

01643-31645

WASHER

12

20S-30-31330

COVER,L.H.

|12

20S-30-31230

COVER,L.H.

13

20S-30-31340

COVER,R.H.

|13

20S-30-31240

COVER,R.H.

14

01010-51095

BOLT

|14

01010-51085

BOLT

15

01602-21030

WASHER,SPRING

G-1

21X-30-X0010

GUARD GROUP

16

20T-30-41312

GUARD,L.H. OUTSIDE AND R.H. INSIDE

|16

20T-30-41311

GUARD,L.H. OUTSIDE AND R.H. INSIDE

17

20T-30-41322

GUARD,R.H. OUTSIDE AND L.H. INSIDE

|17

20T-30-41321

GUARD,R.H. OUTSIDE AND L.H. INSIDE

18

01010-51640

BOLT

19

01643-31645

WASHER

G-2

20T-32-X7001

RUBBER SHOE GROUP

20

20S-30-31180

BOLT,(FOR RUBBER SHOE)

21

01580-13326

NUT,(FOR RUBBER SHOE)

22

01010-51625

BOLT,(FOR RUBBER SHOE)

23

01643-31645

WASHER,(FOR RUBBER SHOE)

1

20T-30-41111

FRAME,TRACK

|1

20T-30-41110

FRAME,TRACK

2

20S-30-31190

PLATE

3

01010-51220

BOLT

4

20S-30-21120

COVER

5

01010-51016

BOLT

6

01602-21030

WASHER,SPRING

7

20S-30-31170

COVER

8

01010-51020

BOLT

9

01602-21030

WASHER,SPRING

10

01010-51635

BOLT

11

01643-31645

WASHER

12

20S-30-31330

COVER,L.H.

|12

20S-30-31230

COVER,L.H.

13

20S-30-31340

COVER,R.H.

|13

20S-30-31240

COVER,R.H.

14

01010-51095

BOLT

|14

01010-51085

BOLT

15

01602-21030

WASHER,SPRING

G-1

21X-30-X0010

GUARD GROUP

16

20T-30-41312

GUARD,L.H. OUTSIDE AND R.H. INSIDE

|16

20T-30-41311

GUARD,L.H. OUTSIDE AND R.H. INSIDE

17

20T-30-41322

GUARD,R.H. OUTSIDE AND L.H. INSIDE

|17

20T-30-41321

GUARD,R.H. OUTSIDE AND L.H. INSIDE

18

01010-51640

BOLT

19

01643-31645

WASHER

G-2

20T-32-X7001

RUBBER SHOE GROUP

20

20S-30-31180

BOLT,(FOR RUBBER SHOE)

21

01580-13326

NUT,(FOR RUBBER SHOE)

22

01010-51625

BOLT,(FOR RUBBER SHOE)

23

01643-31645

WASHER,(FOR RUBBER SHOE)

Выбрано товаров: 62
