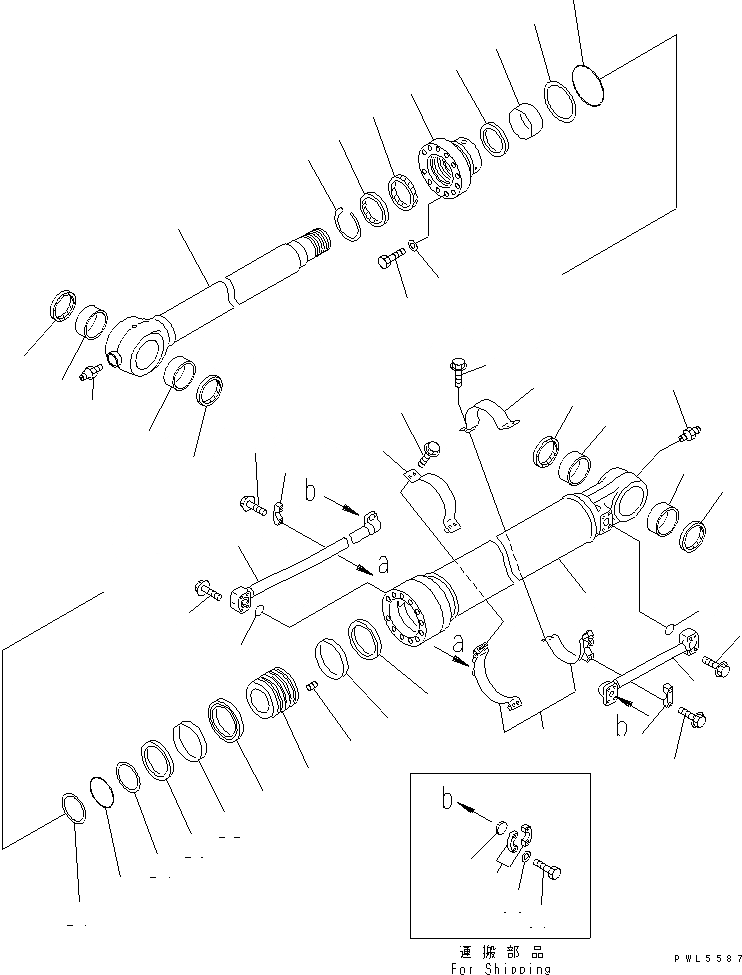

Запчасти Komatsu PC380LC-7K ЦИЛИНДР КОВША (ДЛЯ .M РУКОЯТЬ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

707-01-XZ990

CYLINDER GROUP,(FINAL COATING)

|G1

707-01-XA460

CYLINDER GROUP

|1

707-01-0A460

BUCKET CYLINDER A.

1

707-13-14590

CYLINDER

2

207-70-73240

BUSHING

3

07145-00090

SEAL,DUST (KIT)

4

07020-00000

FITTING,GREASE

5

707-58-10730

ROD

6

207-70-73240

BUSHING

7

207-70-72120

SEAL,DUST (KIT)

8

07020-00000

FITTING,GREASE

9

707-27-14930

HEAD

10

176-63-56170

SEAL,DUST (KIT)

11

07179-13114

RING,SNAP

12

707-52-90780

BUSHING

13

707-51-10030

PACKING,ROD (KIT)

14

707-51-10640

RING,BUFFER (KIT)

15

707-35-91420

RING,BACK-UP (KIT)

16

07000-15130

O-RING (KIT)

17

01010-81875

BOLT

18

707-41-11840

WASHER

19

707-36-14650

PISTON

20

01310-01216

SCREW

21

707-44-14180

RING,PISTON (KIT)

22

707-39-14110

RING,WEAR (KIT)

23

707-44-14910

RING

24

07001-05090

RING,BACK-UP (KIT)

25

07000-15090

O-RING (KIT)

26

707-86-11620

TUBE

27

207-63-73180

TUBE

28

01435-01055

BOLT

29

07000-13035

O-RING (KIT)

30

207-63-73790

BRACKET

31

707-88-21410

BAND

32

01435-01235

BOLT

33

707-88-10150

CLAMP

34

01435-01240

BOLT

35

707-88-33040

CAP,(FOR SHIPPING)

36

07371-31049

FLANGE,SPLIT (FOR SHIPPING)

37

07372-21035

BOLT,(FOR SHIPPING)

38

01643-51032

WASHER,(FOR SHIPPING)

|K

707-99-58090

SERVICE KIT
