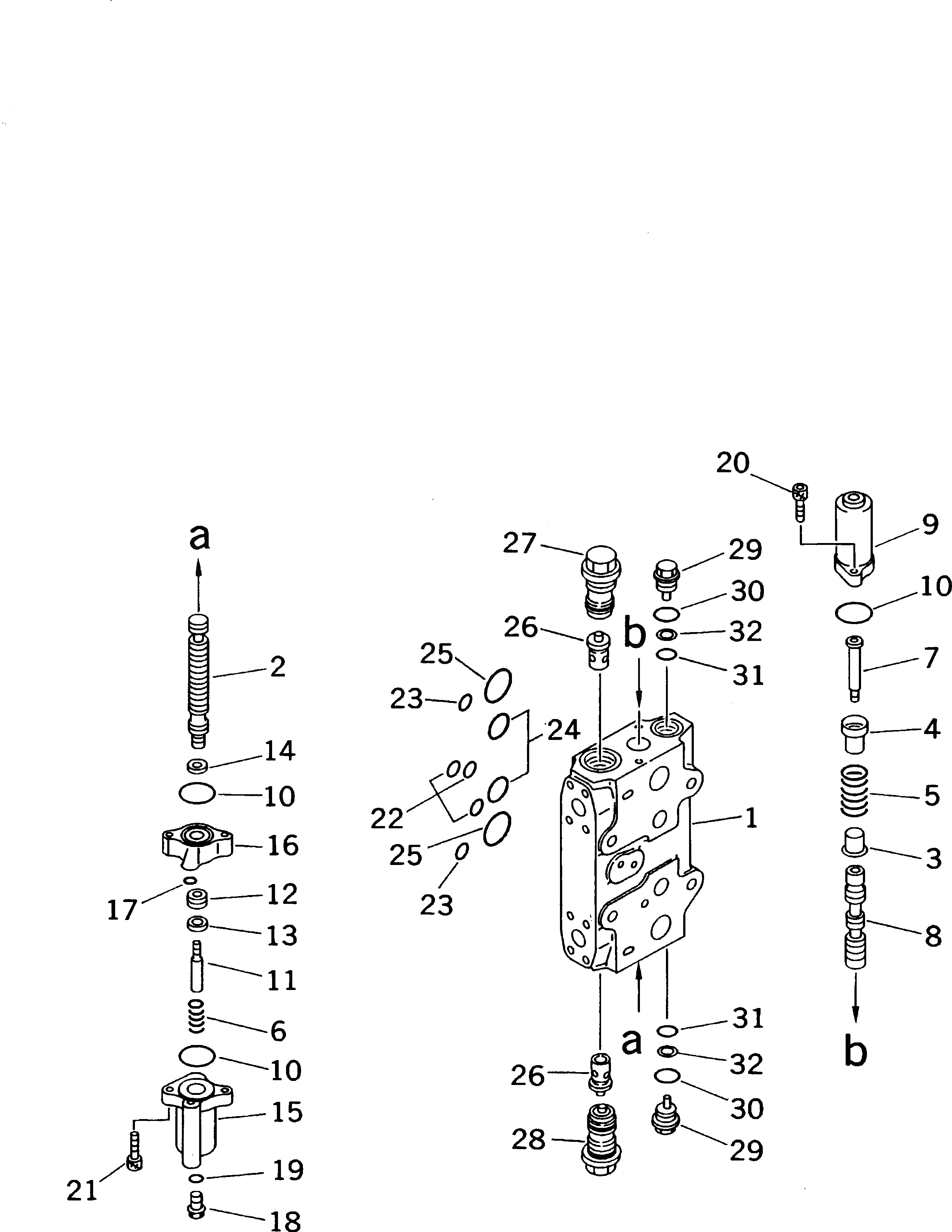

Запчасти Komatsu PC380LC-6K ОСНОВН. КЛАПАН (8 СЕКЦ.) (/) ГИДРАВЛИКА

|1

723-48-16101

CONTROL VALVE

|1

723-41-03100

BODY SUB ASS'Y

1

BLOCK,VALVE

2

SPOOL

3

723-46-15370

RETAINER

4

723-46-15380

RETAINER

5

723-46-14110

SPRING

6

723-46-14180

SPRING

7

723-46-15390

PLUG

8

SPOOL

9

723-46-15360

CASE

10

07430-71380

O-RING

11

723-46-15330

BOLT

12

PISTON

13

SEAL

14

SEAL

15

723-46-15310

CASE

16

723-46-15320

CASE

17

07000-01006

O-RING

18

706-73-71450

PLUG

19

07002-01423

O-RING

20

01252-30820

BOLT

21

01252-30845

BOLT

22

07000-12015

O-RING

23

07000-12018

O-RING

24

07000-13032

O-RING

25

07000-03040

O-RING

26

723-46-41110

VALVE

27

723-46-43100

VALVE ASS'Y

28

723-46-40601

VALVE ASS'Y

29

709-74-91510

PLUG

30

709-25-11390

O-RING

31

07000-11009

O-RING

32

07001-01009

RING,BACK-UP
