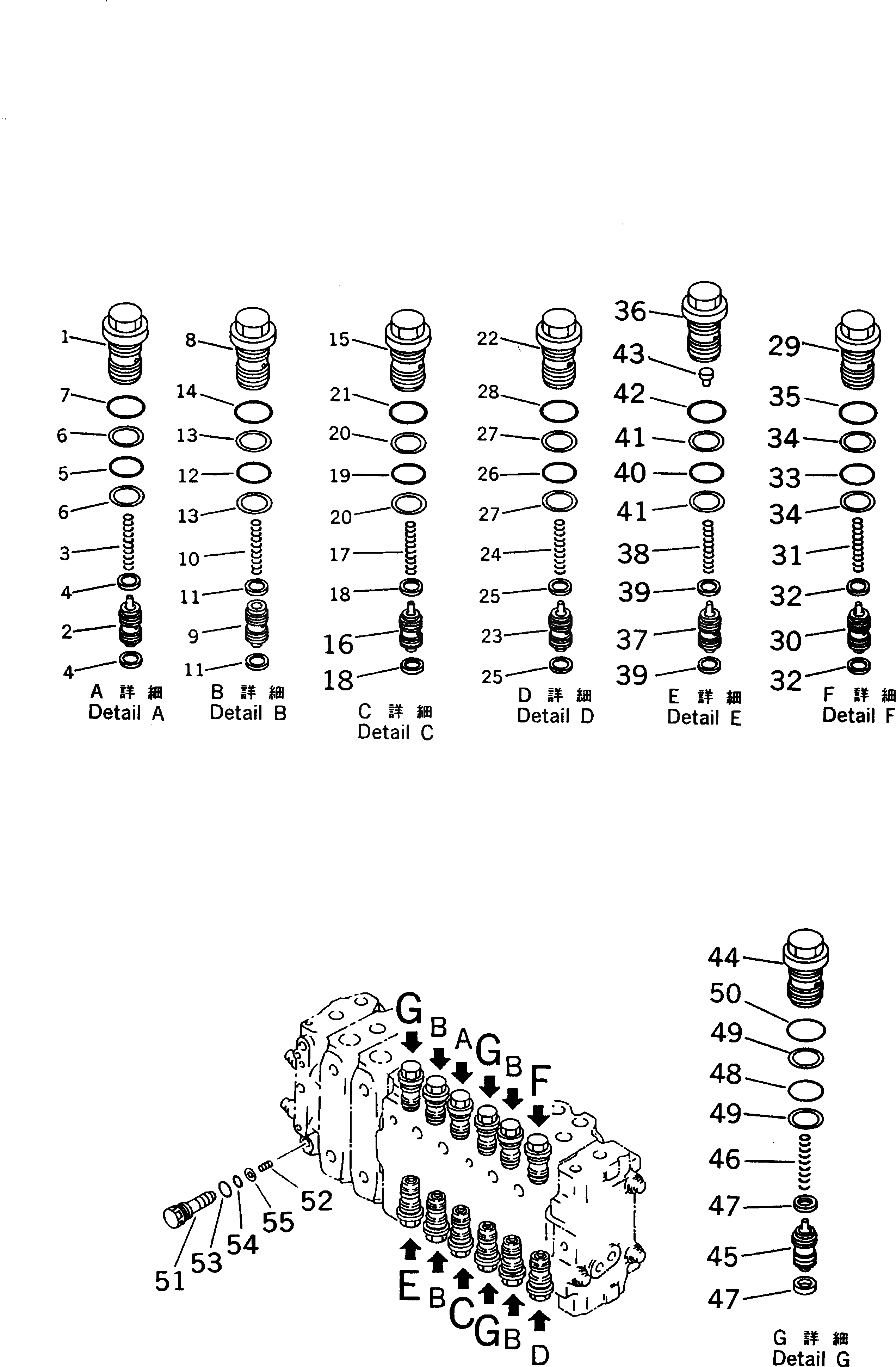

Запчасти Komatsu PC380LC-6K ОСНОВН. КЛАПАН (8 СЕКЦ.) (/) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
723-48-16101
CONTROL VALVE
|1
723-46-40100
VALVE ASS'Y
1
SLEEVE
2
PISTON SUB ASS'Y
3
SPRING
4
SEAL
5
700-93-11320
O-RING
6
723-46-41950
RING
7
07002-13634
O-RING
|8
723-46-40300
VALVE ASS'Y
8
SLEEVE
9
PISTON
10
SPRING
11
SEAL
12
700-93-11320
O-RING
13
723-46-41950
RING
14
07002-13634
O-RING
|15
723-46-40601
VALVE ASS'Y
15
SLEEVE
16
PISTON SUB ASS'Y
17
SPRING
18
SEAL
19
700-93-11320
O-RING
20
723-46-41950
RING
21
07002-13634
O-RING
|22
723-46-44100
VALVE ASS'Y
22
SLEEVE
23
PISTON SUB ASS'Y
24
SPRING
25
SEAL
26
700-93-11320
O-RING
27
723-46-41950
RING
28
07002-13634
O-RING
|29
723-46-43100
VALVE ASS'Y
29
SLEEVE
30
PISTON SUB ASS'Y
31
SPRING
32
SEAL
33
700-93-11320
O-RING
34
723-46-41950
RING
35
07002-13634
O-RING
|36
723-46-43200
VALVE ASS'Y
36
SLEEVE
37
VALVE SUB ASS'Y
38
SPRING
39
SEAL
40
700-93-11320
O-RING
41
723-46-41950
RING
42
07002-13634
O-RING
43
RETAINER
|44
723-46-45100
VALVE ASS'Y
44
SLEEVE
45
PISTON SUB ASS'Y
46
SPRING
47
SEAL
48
700-93-11320
O-RING
49
723-46-41950
RING
50
07002-13634
O-RING
|51
723-46-15100
PLUG ASS'Y
51
PLUG
52
SCREW
53
07002-11423
O-RING
54
07000-11007
O-RING
55
07001-01007
RING,BACK-UP
Выбрано товаров: 64
