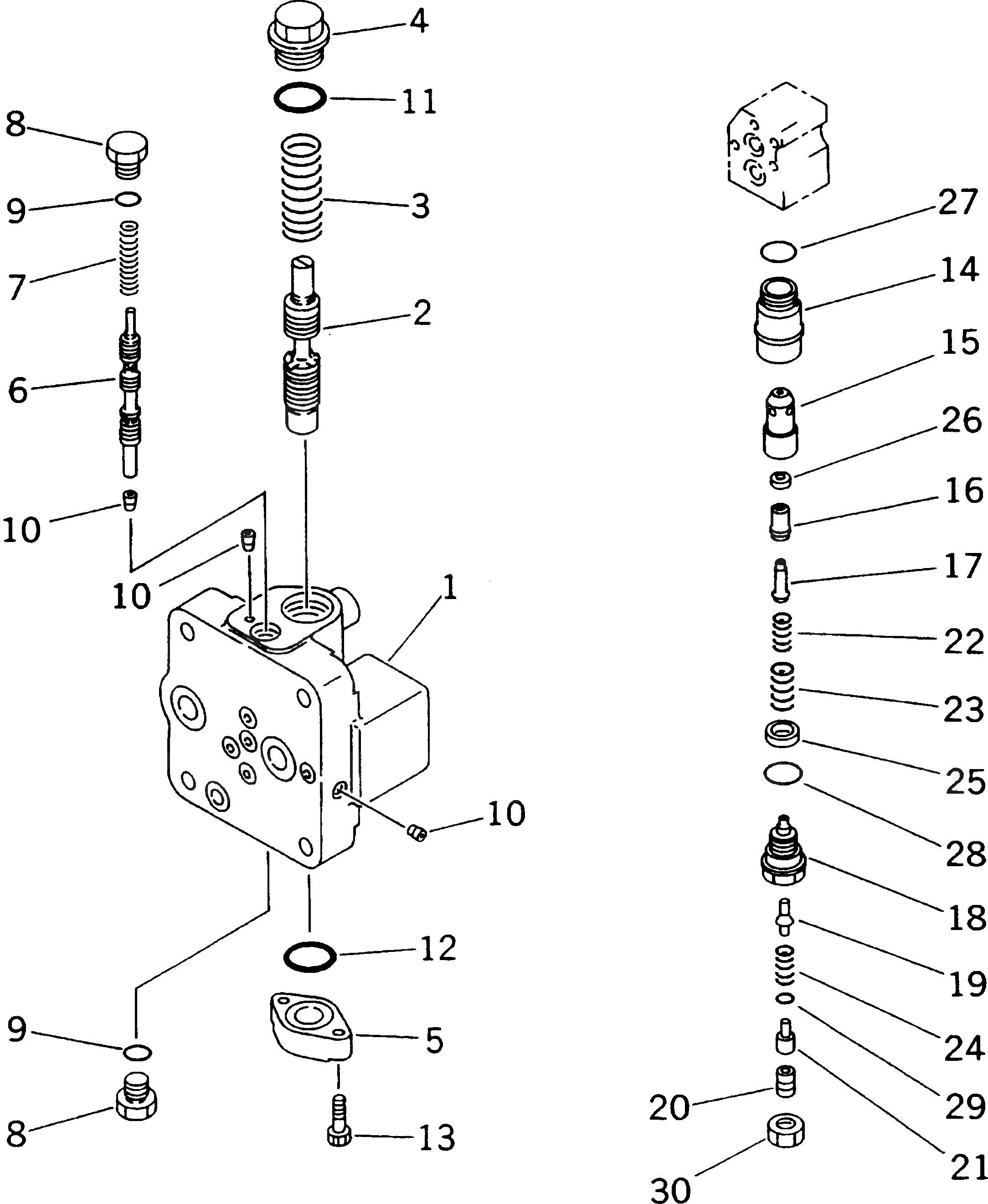

Запчасти Komatsu PC380LC-6K ОСНОВН. КЛАПАН (8 СЕКЦ.) (/) ГИДРАВЛИКА

|1

723-48-16101

CONTROL VALVE

|1

723-40-70200

VALVE ASS'Y

1

BODY

2

SPOOL

3

723-40-71160

SPRING

4

723-40-71140

PLUG

5

723-40-71150

PLATE

6

SPOOL

7

723-40-71170

SPRING

8

07040-11812

PLUG

9

07002-11823

O-RING

10

PLUG

11

07002-13634

O-RING

12

07000-13032

O-RING

13

01252-30830

BOLT

|14

709-90-71100

VALVE ASS'Y,SUCTION AND SAFETY

14

SLEEVE

15

SLEEVE

16

POPPET

17

PISTON

18

PLUG

19

POPPET

20

SCREW

21

SPACER

22

SPRING

23

SPRING

24

SPRING

25

SEAL

26

SEAL

27

07002-03634

O-RING

28

O-RING

29

O-RING

30

NUT
