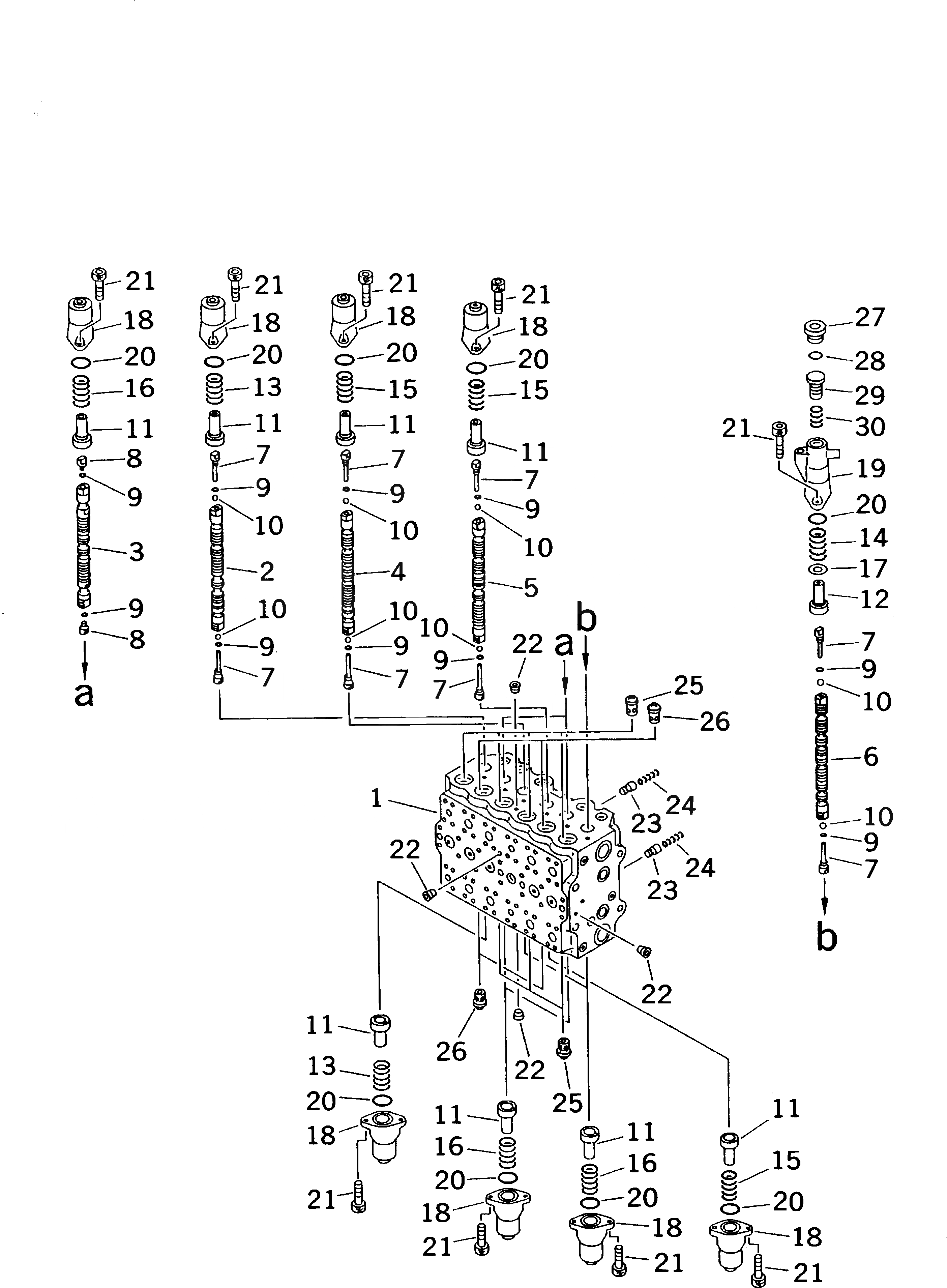

Запчасти Komatsu PC380LC-6K ОСНОВН. КЛАПАН (8 СЕКЦ.) (/) ГИДРАВЛИКА

|1

723-48-16101

CONTROL VALVE

1

BLOCK,VALVE

2

SPOOL

3

SPOOL

4

SPOOL

5

SPOOL

6

SPOOL

7

723-46-15130

PLUG

8

723-46-15140

PLUG

9

07002-10823

O-RING

10

708-7T-16460

BALL

11

723-46-15120

RETAINER

12

723-46-15420

RETAINER

13

723-46-14110

SPRING

14

723-46-14161

SPRING

15

723-46-14131

SPRING

16

723-46-14170

SPRING

17

723-46-15250

SHIM

18

723-46-15110

CASE

19

723-46-15410

CASE

20

07430-71380

O-RING

21

01252-30820

BOLT

22

PLUG

23

723-46-15150

VALVE

24

723-46-14150

SPRING

25

723-46-41110

VALVE

26

723-46-41120

VALVE

27

723-46-15450

PLUG

28

07002-03034

O-RING

29

723-46-15430

PISTON

30

723-46-15440

SPRING
