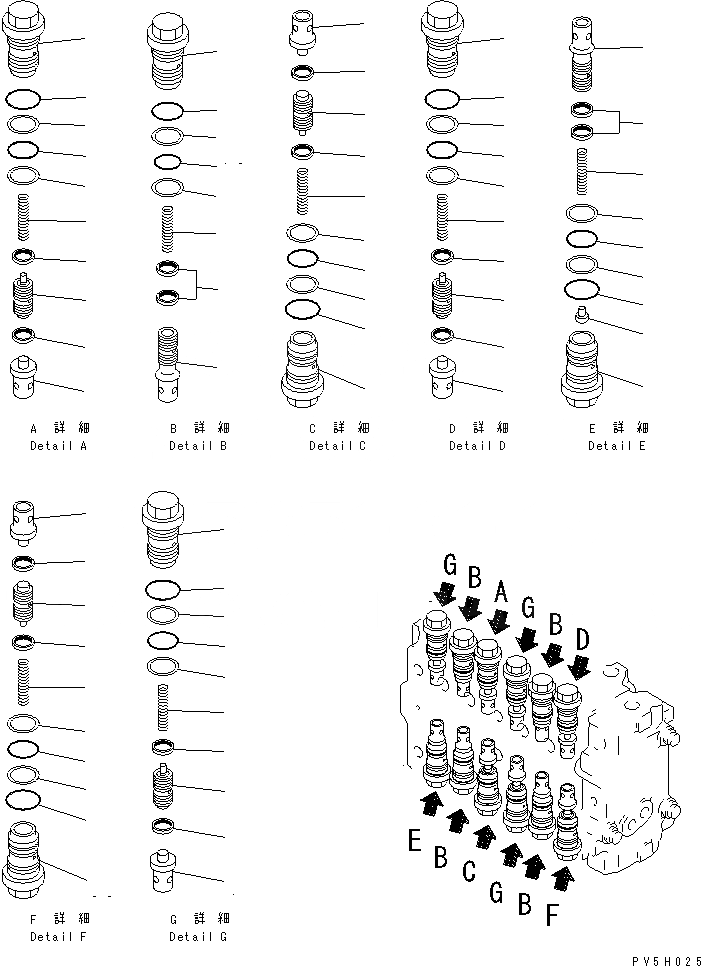

Запчасти Komatsu PC380LC-6K-J ОСНОВН. КЛАПАН (-АКТУАТОР) (/)(№9-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
723-48-18101
CONTROL VALVE
|1
BODY SUB ASS'Y
1
723-46-41110
VALVE
|2
723-46-40100
VALVE ASS'Y
2
SLEEVE
3
PISTON SUB ASS'Y
4
SPRING
5
SEAL
6
700-93-11320
O-RING
7
723-46-41950
RING
8
07002-13634
O-RING
|9
723-46-42500
VALVE ASS'Y
9
SLEEVE
10
VALVE
11
SPRING
12
SEAL
13
700-93-11320
O-RING
14
723-46-41950
RING
15
07002-13634
O-RING
|16
723-46-40601
VALVE ASS'Y
16
SLEEVE
17
PISTON SUB ASS'Y
18
SPRING
19
SEAL
20
700-93-11320
O-RING
21
723-46-41950
RING
22
07002-13634
O-RING
|23
723-46-43100
VALVE ASS'Y
23
SLEEVE
24
PISTON SUB ASS'Y
25
SPRING
26
SEAL
27
700-93-11320
O-RING
28
723-46-41950
RING
29
07002-13634
O-RING
|30
723-46-43200
VALVE ASS'Y
30
SLEEVE
31
VALVE SUB ASS'Y
32
SPRING
33
SEAL
34
700-93-11320
O-RING
35
723-46-41950
RING
36
07002-13634
O-RING
37
723-46-41980
RETAINER
|38
723-46-44100
VALVE ASS'Y
38
SLEEVE
39
PISTON SUB ASS'Y
40
SPRING
41
SEAL
42
700-93-11320
O-RING
43
723-46-41950
RING
44
07002-13634
O-RING
|45
723-46-45100
VALVE ASS'Y
45
SLEEVE
46
PISTON SUB ASS'Y
47
SPRING
48
SEAL
49
700-93-11320
O-RING
50
723-46-41950
RING
51
07002-13634
O-RING
Выбрано товаров: 60
