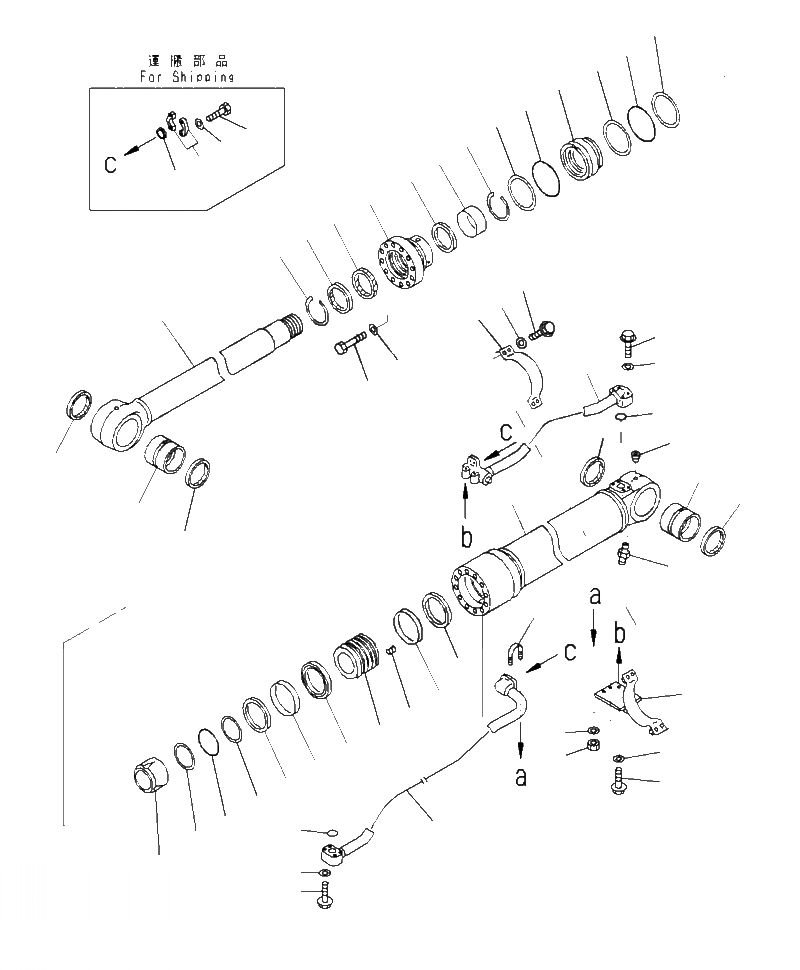

Запчасти Komatsu PC360LC-10 T-A ЦИЛИНДР ASSEMBLY СТРЕЛА (ЛЕВ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-E1-00680

BOOM CYLINDER ASSEMBLY

1

721-13-14050

CYLINDER

2

721-58-10400

ROD, PISTON

3

707-76-90490

BUSHING

4

07145-00090

SEAL, DUST

5

07020-00000

FITTING, GREASE

6

07043-00108

PLUG, TAPER

7

707-76-10290

BUSHING

8

07145-00100

SEAL, DUST

9

707-71-35220

COLLAR

10

707-35-31310

RING, BACK-UP

11

07000-B5130

O-RING

12

707-71-71060

PLUNGER

13

707-27-14690

HEAD, CYLINDER

14

707-56-10740

SEAL, DUST

15

07179-13114

RING, SNAP

16

707-52-90781

BUSHING

17

707-51-10030

PACKING, ROD

18

707-51-10650

RING, BUFFER

19

707-35-31310

RING, BACK-UP

20

07000-B5130

O-RING

21

01010-81875

BOLT

22

707-41-11840

WASHER

23

707-75-10160

RING, SNAP

24

707-36-14650

PISTON

25

707-44-14150

RING, PISTON

26

707-39-14110

RING, WEAR

27

707-35-30900

RING, BACK-UP

28

07000-B5090

O-RING

29

707-44-14910

RING, BACK-UP

30

01310-01216

SCREW

31

707-86-00810

TUBE, L.H.

32

207-63-54580

TUBE

33

207-63-54590

BRACKET

34

07372-21060

BOLT

35

01643-51032

WASHER

36

07000-13035

O-RING

37

707-88-21370

BAND

38

07372-21240

BOLT

39

01643-51232

WASHER

40

07283-33442

CLIP

41

01597-01009

NUT

42

01643-31032

WASHER

43

01010-81025

BOLT

44

01643-31032

WASHER

45

07371-31049

FLANGE, SPLIT

46

707-88-33040

CAP

47

07372-21035

BOLT

48

01643-51032

WASHER

|$49

707-99-59140

K02 SERVICE KIT, BOOM CYLINDER
