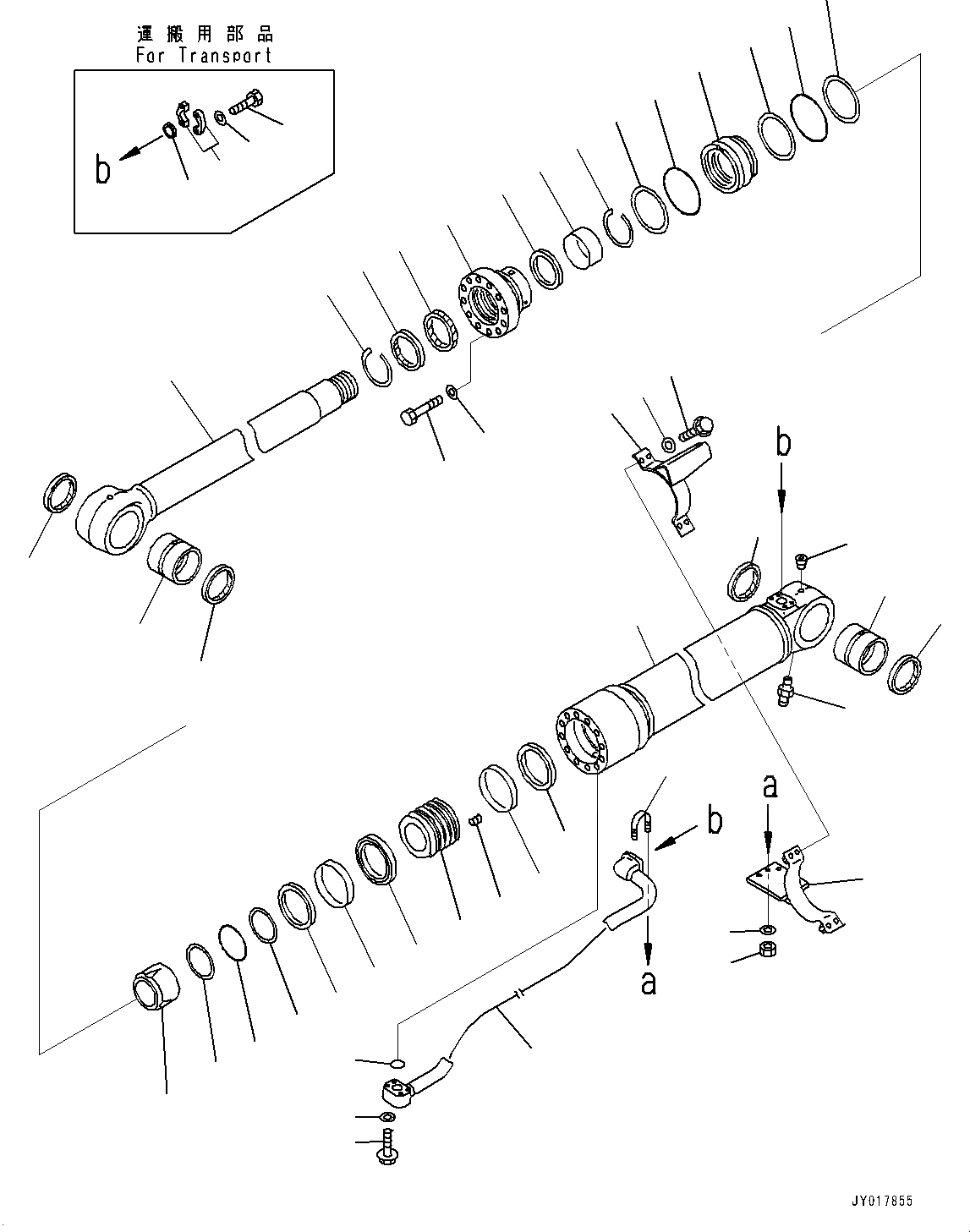

Запчасти Komatsu PC360LC-10 ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, СТРЕЛА И РУКОЯТЬ, ВНУТР. ЧАСТИ, LHS ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, СТРЕЛА И РУКОЯТЬ

|$0

707-E1-00680

Cylinder Assembly

1

721-13-14050

Cylinder

2

721-58-10400

Rod, Piston

3

707-76-90490

Bushing

4

07145-00090

Seal, Dust, (Kit : K04)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-10290

Bushing

8

07145-00100

Seal, Dust, (Kit : K04)

9

707-71-35220

Collar

10

707-35-31310

Ring, Back-up, (Kit : K04)

11

07000-B5130

O-ring, (Kit : K04)

12

707-71-71060

Plunger

13

707-27-14690

Head, Cylinder

14

707-56-10740

Seal, Dust, (Kit : K04)

15

07179-13114

Ring, Snap

16

707-52-90781

Bushing

17

707-51-10030

Packing, Rod, (Kit : K04)

18

707-51-10650

Ring, Buffer, (Kit : K04)

19

707-35-31310

Ring, Back-up, (Kit : K04)

20

07000-B5130

O-ring, (Kit : K04)

21

01010-81875

Bolt

22

707-41-11840

Washer

23

707-75-10160

Ring, Snap

24

707-36-14650

Piston

25

707-44-14150

Ring, Piston, (Kit : K04)

26

707-39-14110

Ring, Wear, (Kit : K04)

27

707-35-30900

Ring, Back-up, (Kit : K04)

28

07000-B5090

O-ring, (Kit : K04)

29

707-44-14910

Ring, Back-up

30

01310-01216

Screw

31

707-86-00810

Tube, LHS

32

207-63-54590

Bracket

33

07372-21060

Bolt

34

01643-51032

Washer

35

07000-13035

O-ring, (Kit : K04)

36

707-88-51360

Bracket

37

07372-21240

Bolt

38

01643-51232

Washer

39

07283-33442

Clip, Pipe

40

01597-01009

Nut

41

01643-31032

Washer

42

07371-31049

Flange, Split

43

707-88-33040

Cap

44

07372-21035

Bolt

45

01643-51032

Washer
