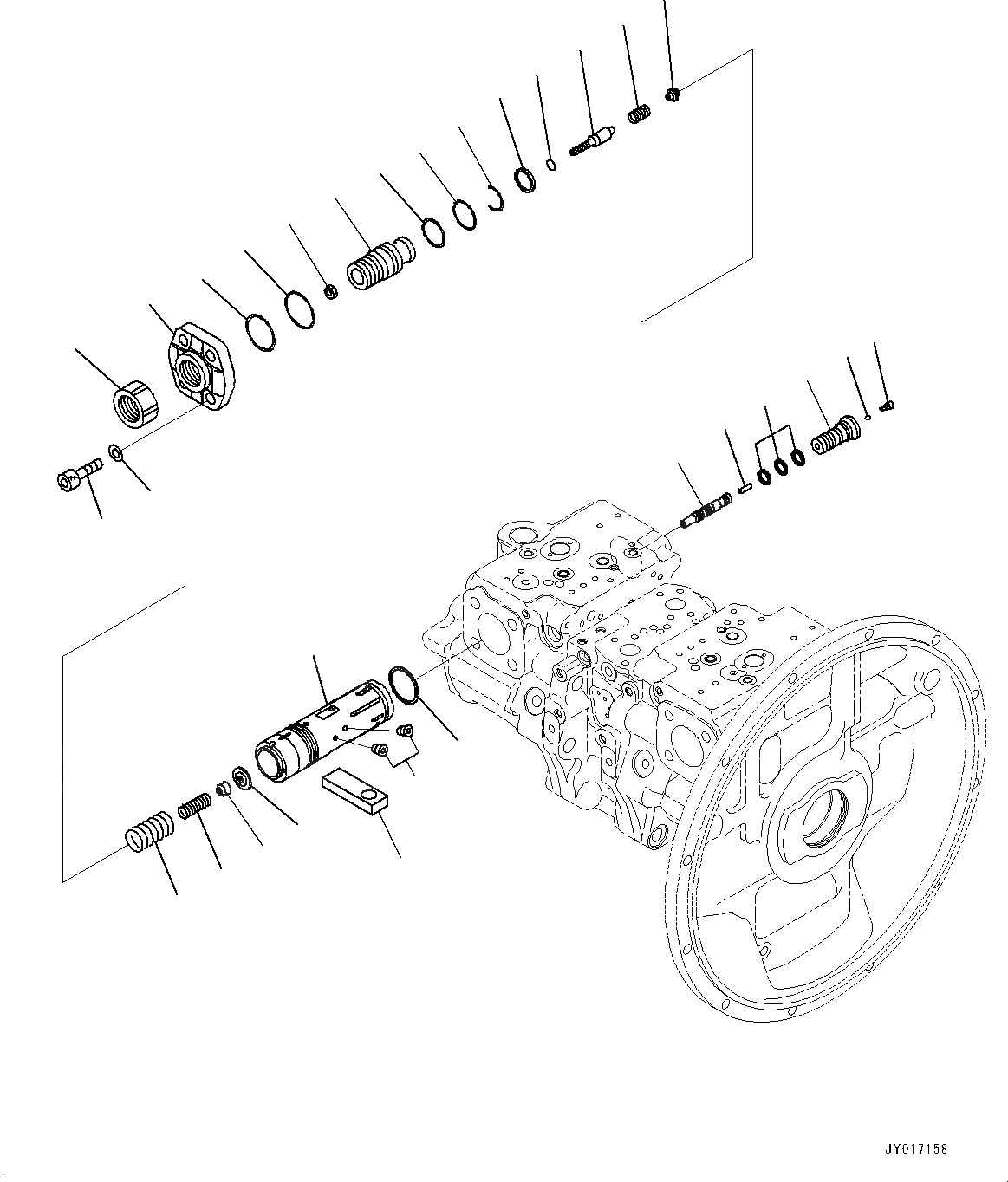

Запчасти Komatsu PC360LC-10 ОСНОВН. ПОРШЕНЬ НАСОС, ВНУТР. ЧАСТИ (8/) ОСНОВН. ПОРШЕНЬ НАСОС

|$0

708-2G-00140

Pump Assembly, Piston

|$1

708-2G-01140

Pump Subassembly

1

708-2G-14120

Slider

1

708-2G-03620

Valve Assembly, PC

1

708-2G-03630

Piston Assembly, Servo

2

Piston

3

Screw

4

708-2G-15320

Seal

5

708-2G-15221

Plug

6

708-2L-35760

Ball

7

708-2L-35770

Plug

8

708-2L-35690

Seal

9

708-2L-35170

Pin

10

708-2G-15211

Spool

11

708-2G-15290

Retainer

12

708-2G-15140

Seat

13

708-2G-15470

Spring

14

708-2G-15480

Spring

15

708-2G-15151

Seat

16

708-2G-15490

Spring

17

708-2G-14480

Screw

18

07000-B3038

O-ring

19

708-2G-15230

Ring, Back-up

20

708-2G-15260

Seal

21

708-2G-15690

Plug

22

07000-B2012

O-ring

23

07000-B2050

O-ring

24

708-2G-15310

Ring, Back-up

25

708-2G-14490

Cover

26

01580-10806

Nut

27

708-2L-35290

Nut

28

708-2G-15330

Ring, Wear

29

07372-21650

Bolt

30

01643-51645

Washer
