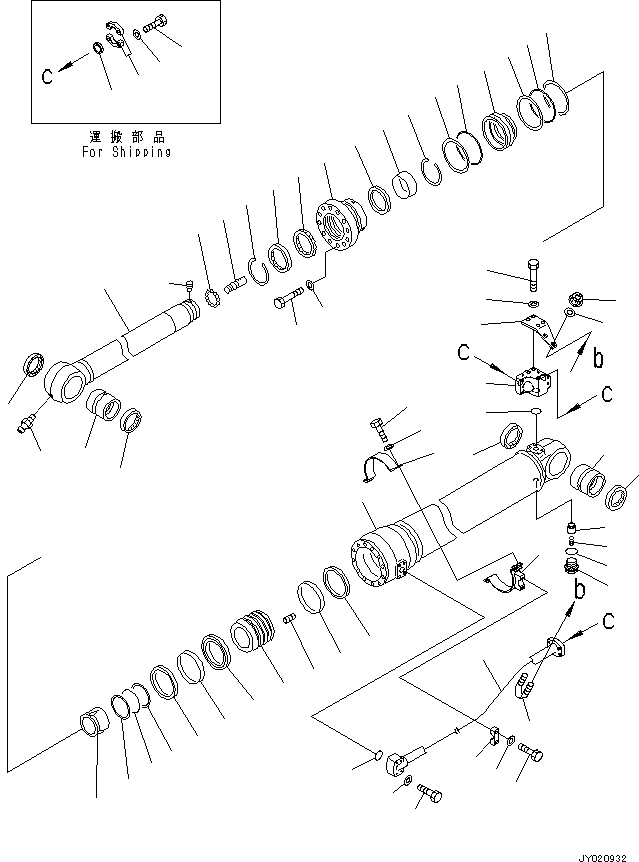

Запчасти Komatsu PC360-8M0 ЦИЛИНДР РУКОЯТИ( ЧАС. СМАЗКА INTERVAL) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

|$1

707-F1-X2180

CYLINDER ASSEMBLY

1

721-13-16431

CYLINDER

2

721-58-11090

ROD, PISTON

3

707-76-10130

BUSHING

4

07145-00100

SEAL, DUST(KIT:K16)

5

707-76-10130

BUSHING

6

07145-00100

SEAL, DUST(KIT:K16)

7

07020-00000

FITTING, REASE

8

707-71-35270

COLLAR

9

707-35-31510

RING, BACK-UP(KIT:K16)

10

07000-B5150

O-RING(KIT:K16)

11

707-71-61160

PLUNGER

12

707-71-80280

PLUNGER

13

04260-00635

BALL, STEEL

14

707-71-91270

CAP

15

721-27-16080

HEAD, CYLINDER

16

707-56-11740

SEAL, DUST(KIT:K16)

17

07179-13126

RING, SNAP

18

707-52-90851

BUSHING

19

707-51-11860

PACKING, ROD(KIT:K16)

20

707-51-11650

RING, MUFFER(KIT:K16)

21

707-35-31510

RING, BACK-UP(KIT:K16)

22

07000-B5150

O-RING(KIT:K16)

23

01010-82085

BOLT

24

707-88-75310

WASHER

25

707-75-11040

RING, SNAP

26

707-36-16580

PISTON

27

707-44-16150

RING, PISTON(KIT:K16)

28

707-39-16120

RING, REAR(KIT:K16)

29

707-44-16910

RING

30

07000-B5100

O-RING(KIT:K16)

31

707-35-31000

RING, BACK-UP(KIT:K16)

32

01310-01216

SCREW

33

707-83-13010

VALVE

34

07750-01628

SPRING

35

707-87-14071

PLUG

|$37

707-87-14070

PLUG

36

07002-12034

O-RING(KIT:K16)

37

707-86-00830

TUBE

38

707-87-14960

ELBOW
