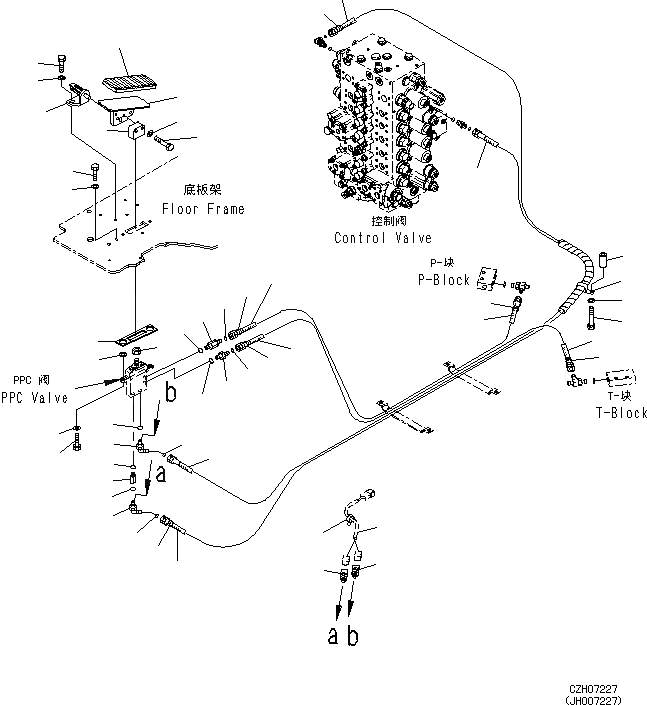

Запчасти Komatsu PC360-8M0 КАБИНА(ПОЛ, 1 УПРАВЛ. НАВЕСН. ОБОРУД.) K [КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ]

1

22U-54-25660

SEAL

2

20Y-43-41760

SEAT

3

01010-81025

BOLT

4

01643-31032

WASHER

5

01643-31032

WASHER

6

2A5-62-12350

BRACKET

7

01010-81025

BOLT

8

01643-31032

WASHER

9

20Y-53-14220

PEDAL

10

01010-D1045

BOLT

11

01643-71032

WASHER

12

01010-81020

BOLT

13

01643-31032

WASHER

14

207-43-81240

CAP

15

20T-910-8660

NIPPLE

16

07000-12011

O-RING

17

20Y-62-52160

ELBOW

18

02896-11008

O-RING

19

07000-12011

O-RING

20

20Y-62-43470

NIPPLE

21

02896-11008

O-RING

22

11Y-62-12140

NIPPLE

23

02896-11008

O-RING

24

07000-12011

O-RING

|$25

HOSE ASSEMBLY

25

02740-00209

HOSE

26

02740-00238

HOSE

27

02740-00233

HOSE

28

208-62-72480

HOSE

29

20Y-62-22790

BAND, RED

30

20Y-62-22810

BAND, YELLOW

31

20Y-62-22820

BAND, BLUE

32

04435-51210

CLIP

33

175-40-22540

SPACER

34

01010-81070

BOLT

35

01643-31032

WASHER

36

01583-11408

NUT

37

206-06-61130

SWITCH, PRESSURE

38

08034-20519

BAND

39

20Y-06-41251

WIRING HARNESS
