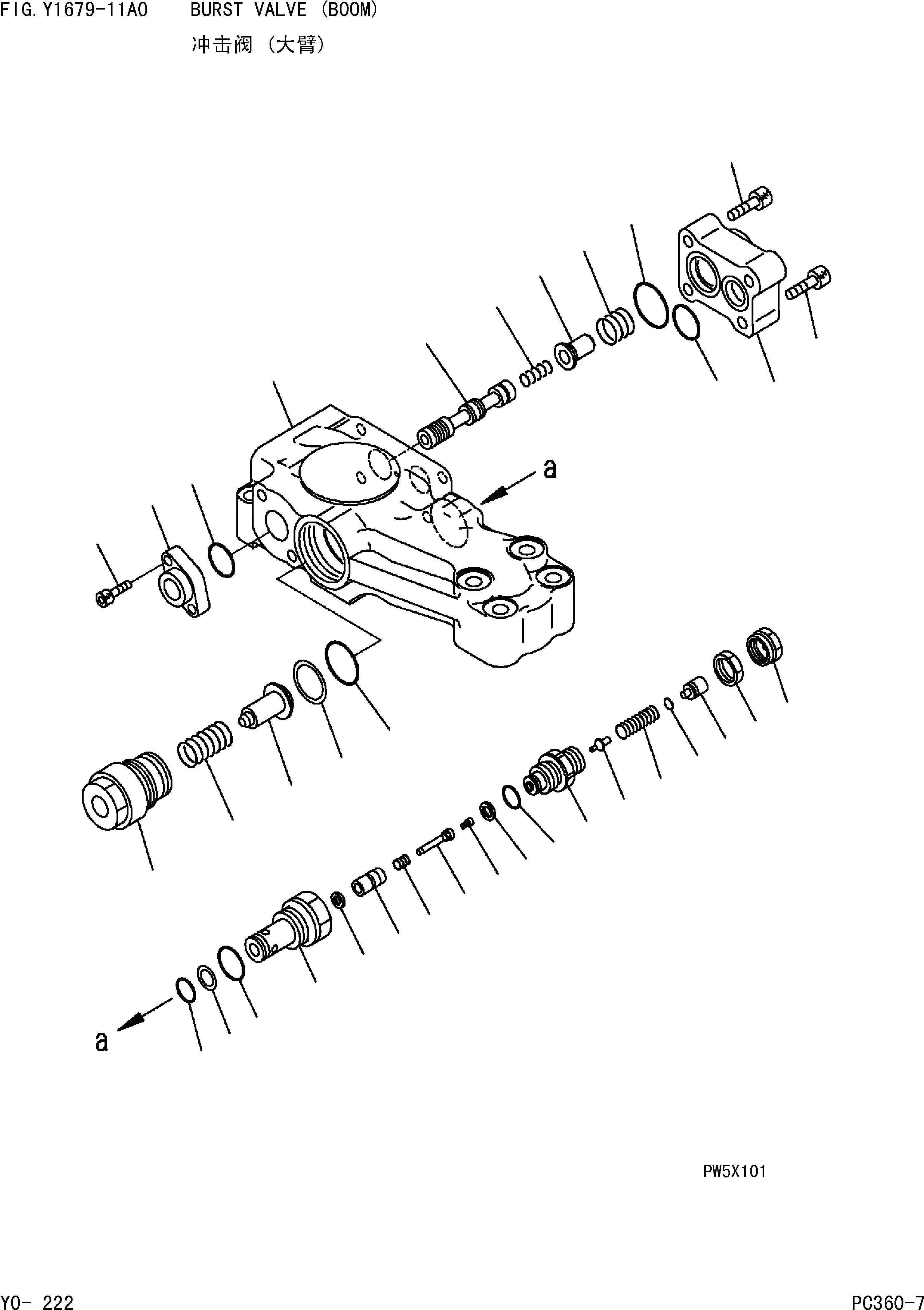

Запчасти Komatsu PC360-7 КЛАПАН ПЕРЕГРУЗКИ (СТРЕЛА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$0

702-21-08700

PILOT VALVE

1

BODY,VALVE

2

SPOOL

3

702-21-39410

CASE

4

702-21-39420

RETAINER,2.0MM

|$5

702-21-39460

RETAINER,2.3MM

|$6

702-21-39470

RETAINER,1.7MM

5

702-21-39430

FLANGE

6

702-21-39440

SPRING

7

702-21-39330

SPRING

8

709-62-31280

O-RING

9

702-21-39450

O-RING

10

702-21-36480

PLUG

11

01252-60830

BOLT

12

01252-60835

BOLT

13

01252-60820

BOLT

14

07000-13028

O-RING

15

709-94-92811

VALVE

16

709-94-91751

SPRING

17

700-93-11320

O-RING

18

700-93-11330

RING,BACK-UP

|$21

723-40-91500

VALVE ASS'Y,RELIEF

19

SLEEVE

20

700-80-64220

RING

21

700-22-11410

O-RING

22

SEAL

23

POPPET

24

PISTON

25

SEAT

26

SPRING

27

SEAL

28

709-25-11390

O-RING

29

POPPET

30

O-RING

31

PLUG

32

NUT

33

SPRING

34

O-RING

35

SPACER

36

NUT
