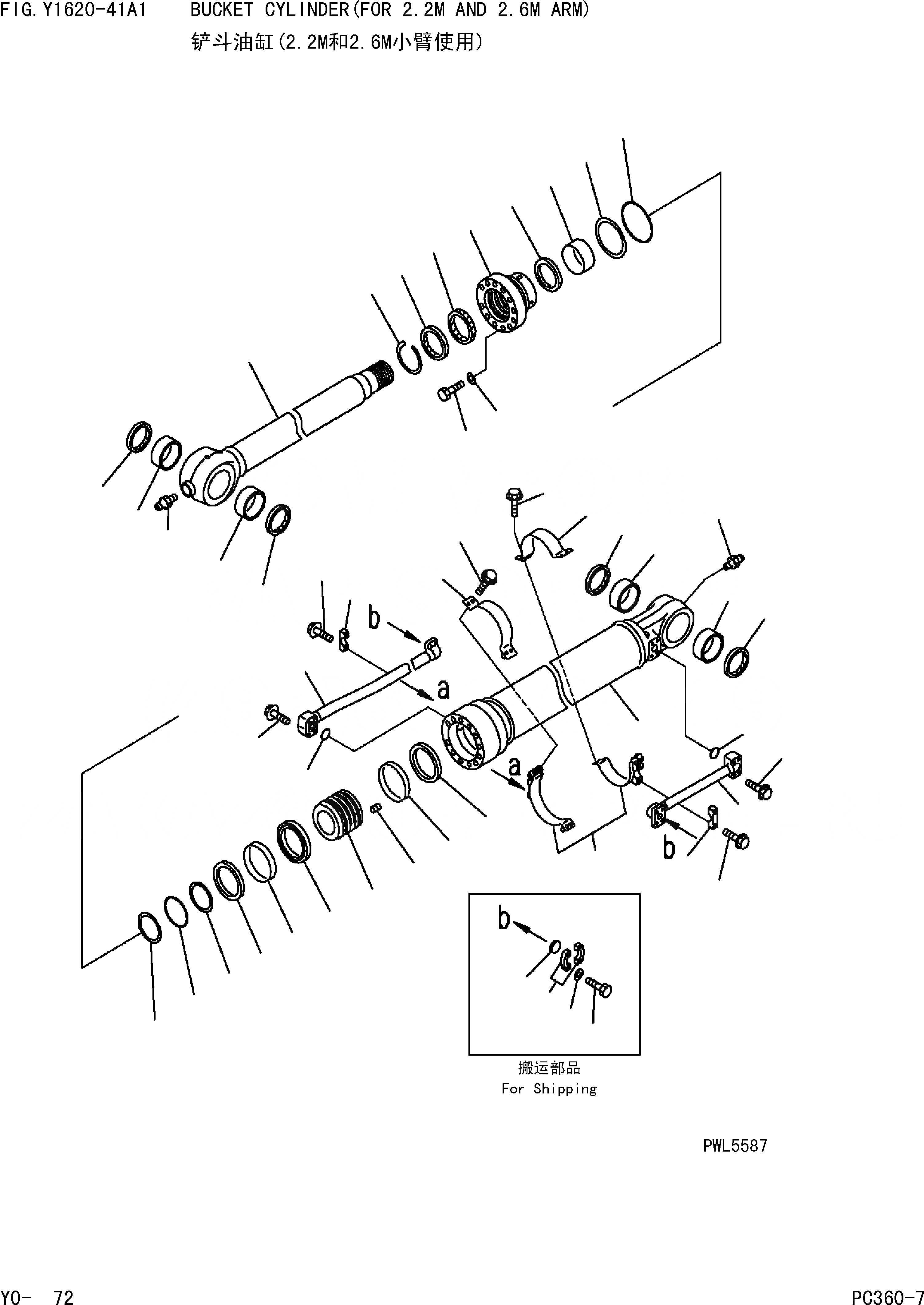

Запчасти Komatsu PC360-7 ЦИЛИНДР КОВША(ДЛЯ .M И .M РУКОЯТЬ) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

G-1

707-01-XA470

CYLINDER GROUP

|$1

707-01-0A470

BUCKET CYLINDER A

1

707-13-15260

CYLINDER

2

207-70-73240

BUSHING

3

07145-00090

SEAL,DUST

4

07020-00000

FITTING,GREASE

5

707-58-11730

ROD

6

207-70-73240

BUSHING

7

207-70-72120

SEAL,DUST

8

07020-00000

FITTING,GREASE

9

707-27-15610

HEAD

10

198-63-94170

SEAL,DUST

11

07179-13126

RING,SNAP

12

707-52-90850

BUSHING

13

707-51-11030

PACKING,ROD

14

707-51-10640

RING,BUFFER

15

707-35-91660

RING,BACK-UP

16

07000-15140

O-RING

17

01010-82085

BOLT

18

707-88-75310

WASHER

19

707-36-15260

PISTON

20

01310-01216

SCREW

21

707-44-15180

RING,PISTON

22

707-39-15110

RING,WEAR

23

707-44-15911

RING

24

07001-05100

RING,BACK-UP

25

07000-15100

O-RING

26

707-86-11630

TUBE

27

207-63-73180

TUBE

28

01435-01055

BOLT

29

07000-13035

O-RING

30

707-88-22690

BRACKET

31

707-88-21420

BAND

32

01435-01235

BOLT

33

707-88-10150

CLAMP

34

01435-01240

BOLT

35

707-88-33040

CAP

36

07371-31049

FLANGE,SPLIT

37

07372-21035

BOLT

38

01643-51032

WASHER

|$40

707-99-59610

SERVICE KIT
