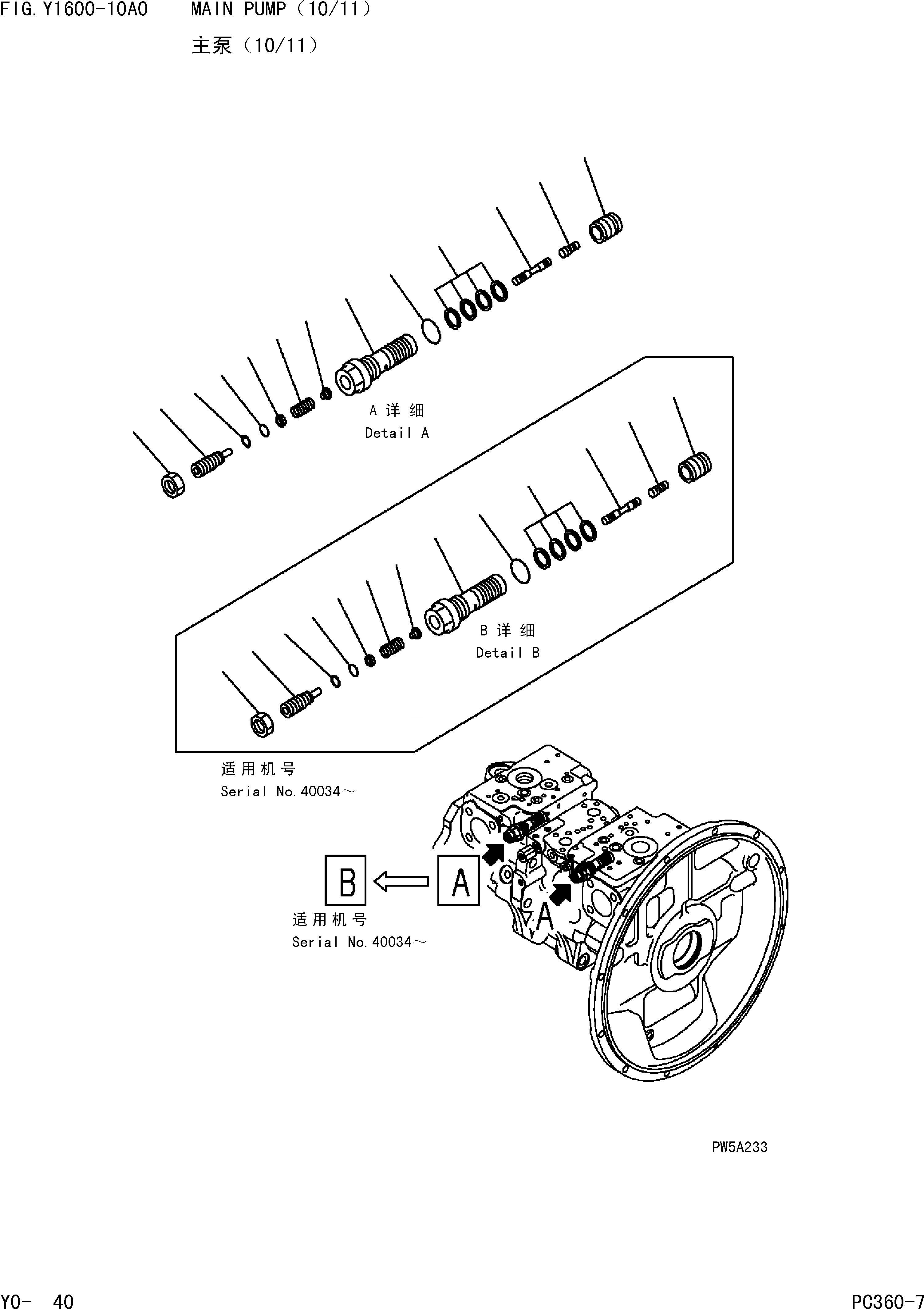

Запчасти Komatsu PC360-7 ОСНОВН. НАСОС(/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$0

708-2G-00024

PUMP ASS'Y THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-01A0 TO Y1600-11A0.

|$1

708-2G-03710

VALVE ASS'Y,LS

|$2

708-2G-03710

VALVE ASS'Y,LS

1

708-2L-35311

SLEEVE

2

708-2L-24680

SEAL

3

708-2G-15412

SPOOL

4

708-2L-28540

PISTON

5

708-2L-35360

SLEEVE

6

708-2L-35331

SEAT

7

708-2L-35410

SPRING

8

708-2L-35341

SEAT

9

708-2L-35351

PLUG

10

07000-B1009

O-RING

11

07001-01009

RING,BACK-UP

12

01583-11408

NUT

13

07002-62434

O-RING

|$16

708-2G-03910

VALVE ASS'Y,LS

14

708-2L-35311

SLEEVE

15

708-2L-24680

SEAL

16

708-2G-15412

SPOOL

17

708-2L-28540

PISTON

18

708-2L-35360

SLEEVE

19

708-2G-15420

SEAT

20

708-2L-35410

SPRING

21

708-2L-35341

SEAT

22

708-2L-35351

PLUG

23

07000-B1009

O-RING

24

07001-01009

RING,BACK-UP

25

01583-11408

NUT

26

07002-62434

O-RING
