Запчасти Komatsu PC35R-8 ОСНОВН. КЛАПАН (ПАТРУБОК) ГИДРАВЛИКА

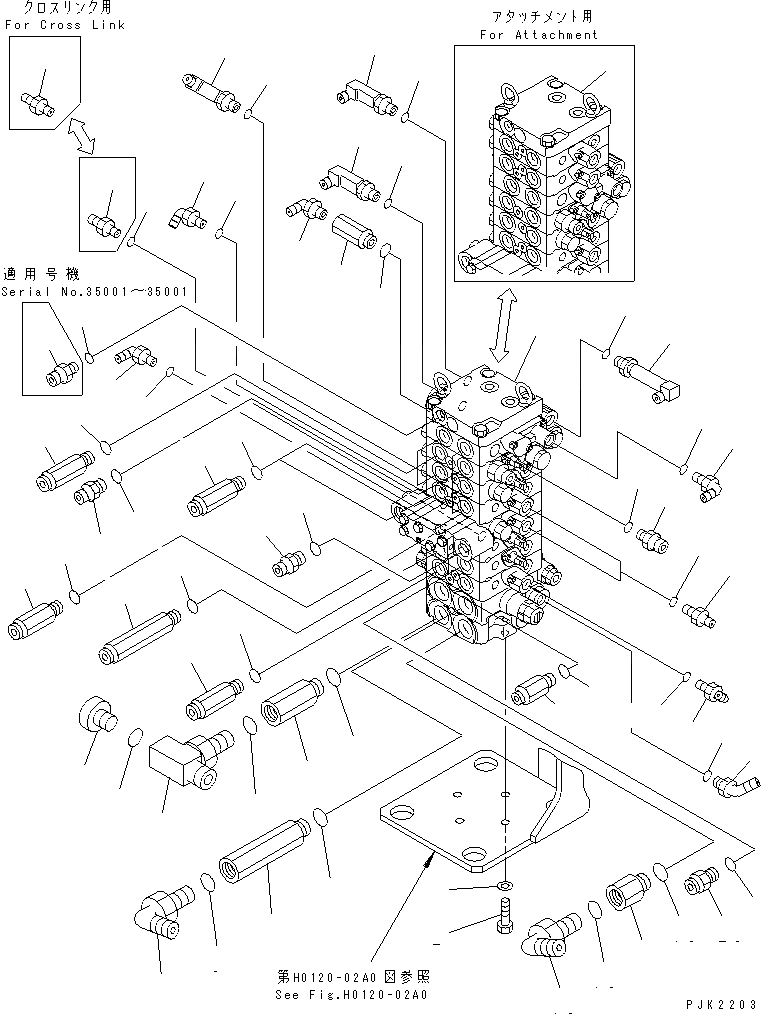

Схема запчастей Komatsu PC35R-8 - ОСНОВН. КЛАПАН (ПАТРУБОК) ГИДРАВЛИКА
1
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
15
15
15
15
16
17
18
19
19
19
20
20
21
21
22
22A
23
24
25
26
27
27
27
27
27
27
27
27
27
27
28
28
28A
28B
29
29
29
29A
30
31
32
32
32
32
32
32
32
32
32

Артикул

Название

Примечание

Количество

1

723-18-1170D

CONTROL VALVE

1

723-18-1170C

CONTROL VALVE

1

723-18-1170B

CONTROL VALVE

1

723-18-1170A

CONTROL VALVE

1

723-18-11706

CONTROL VALVE

1

723-1A-1370C

CONTROL VALVE,(FOR P.A.T.)

1

723-1A-1370B

CONTROL VALVE,(FOR P.A.T.)

1

723-1A-1370A

CONTROL VALVE,(FOR P.A.T.)

1

723-1A-13709

CONTROL VALVE,(FOR P.A.T.)

1

723-1A-13704

CONTROL VALVE,(FOR P.A.T.)

1

723-1A-1170B

CONTROL VALVE,(FOR ATTACHMENT)

1

723-1A-1170A

CONTROL VALVE,(FOR ATTACHMENT)

1

723-1A-11709

CONTROL VALVE,(FOR ATTACHMENT)

1

723-1A-11708

CONTROL VALVE,(FOR ATTACHMENT)

1

723-1A-11704

CONTROL VALVE,(FOR ATTACHMENT)

1

723-18-12708

CONTROL VALVE,(FOR CROSS LINK)

1

723-18-12707

CONTROL VALVE,(FOR CROSS LINK)

1

723-18-12706

CONTROL VALVE,(FOR CROSS LINK)

1

723-18-12702

CONTROL VALVE,(FOR CROSS LINK)

2

01010-81025

BOLT

3

01643-31032

WASHER

4

07235-10522

ELBOW

5

20T-62-84250

JOINT

6

07002-12434

O-RING

7

20T-62-67150

UNION

8

205-62-55270

NIPPLE

9

07002-11823

O-RING

10

07040-12414

PLUG

11

20T-62-81151

ELBOW

12

20T-62-81790

JOINT

13

07235-10522

ELBOW

14

201-62-71810

JOINT

15

07002-12434

O-RING

16

205-62-55270

NIPPLE

17

208-62-18190

ELBOW

18

07236-10210

ELBOW

19

07002-11423

O-RING

20

20T-62-56710

UNION

21

20T-62-67150

UNION

22

20S-62-21680

ELBOW

22A

20T-62-84370

JOINT

23

20T-62-71160

UNION

24

20T-62-81761

UNION

25

20T-62-71150

UNION

26

21X-62-22380

NIPPLE

27

07002-11823

O-RING

28

07230-20210

UNION

28

07230-20210

UNION,(FOR CROSS LINK)

28A

20T-60-82300

VALVE ASS'Y

28A

21Y-62-11590

PLUG

28A

20T-60-82310

ELBOW

28A

20T-60-82320

POPPET

28B

21T-62-15911

NIPPLE,(FOR CROSS LINK)

29

07235-10210

ELBOW

29A

20T-60-82400

VALVE ASS'Y

29A

21Y-62-11590

PLUG

29A

20T-60-82410

ELBOW

29A

20T-60-82320

POPPET

30

208-62-18190

ELBOW

31

201-62-64330

ELBOW

32

07002-11423

O-RING

Выбрано товаров: 61
