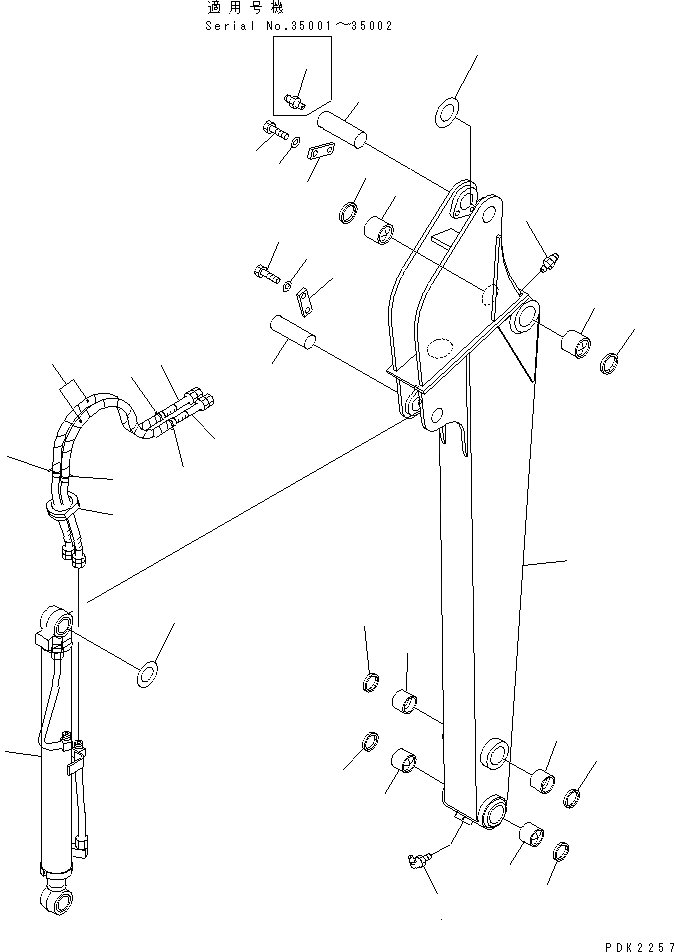

Запчасти Komatsu PC35R-8 РУКОЯТЬ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$3

20S-70-00820

ARM ASS'Y

|$4

20S-970-0820

ARM ASS'Y,(FOR ATTACHMENT)

|$5

20S-70-00910

ARM ASS'Y,(FOR MULTI)

1

ARM

1

ARM

1

ARM,(FOR ATTACHMENT)

1

ARM,(FOR MULTI)

2

20S-70-81290

BUSHING

3

20S-70-11270

BUSHING

4

20S-70-71880

BUSHING

5

07145-00040

SEAL,DUST

6

07145-00035

SEAL,DUST

7

07020-00675

FITTING,GREASE

8

07020-00000

FITTING,GREASE

9

20S-62-82231

HOSE

9

20S-62-82230

HOSE

9

20S-62-82170

HOSE, 800MM

10

21X-70-21280

GROMMET

11

203-62-58650

COVER

12

08034-00823

BAND

12

08034-00519

BAND

13

21X-70-21210

PIN

13

20S-70-81150

PIN

13

09241-4A120

PIN

14

07020-00000

FITTING,GREASE

15

04082-00212

LOCK

16

01010-81230

BOLT

17

01643-31232

WASHER

18

20S-70-81780

SPACER, 1.0MM

18

20R-70-11260

SPACER, 1.0MM

19

20S-70-71240

PIN

20

04082-00212

LOCK

21

01010-81230

BOLT

22

01643-31232

WASHER

23

20T-70-81720

SPACER, 1.0MM

23

20R-70-11270

SPACER, 1.0MM

24

20S-63-X2424

CYLINDER ASS'Y

24

20S-63-X2423

CYLINDER GROUP,BUCKET

24

20S-63-X2480

CYLINDER GROUP,BUCKET (FOR MULTI)
