Запчасти Komatsu PC35R-8 MULTI PATERN (WAY) ГИДРАВЛИКА

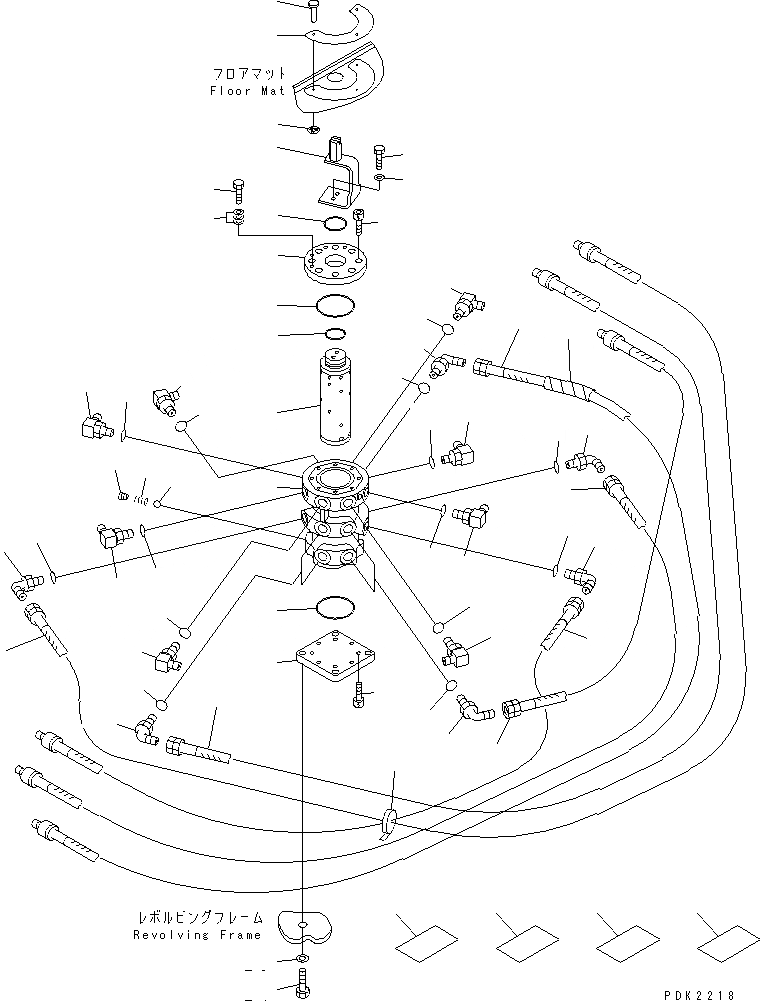

Схема запчастей Komatsu PC35R-8 - MULTI PATERN (WAY) ГИДРАВЛИКА
1
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
18
18
18
18
18
18
18
19
19
19
19
19
19
20
20
20
20
20
20
20
20
20
20
20
20
20
20
21
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32

Артикул

Название

Примечание

Количество

|1

20U-62-23702

VALVE ASS'Y

|1

20U-62-23701

VALVE ASS'Y

1

20U-62-23752

LEVER

|1

20U-62-23751

LEVER

2

01252-40616

BOLT

3

01643-30623

WASHER

4

01010-80625

BOLT

5

01643-30623

WASHER

6

20T-62-76440

COVER

|6

203-62-59230

COVER

7

01252-40620

BOLT

|7

01252-30616

BOLT

8

07016-00306

SEAL

|8

07000-03035

O-RING

9

203-62-58950

BODY

10

07000-03028

O-RING

11

07000-02060

O-RING

12

07043-00108

PLUG

13

04260-00793

BALL

14

236-10-12240

SPRING

15

20T-62-76430

SHAFT

|15

203-62-58940

SHAFT

16

203-62-58980

COVER

17

01252-40616

BOLT

18

20U-62-23770

ELBOW

19

07235-10210

ELBOW

20

07002-11423

O-RING

21

21X-62-22270

HOSE¤ 250MM

|21

20U-62-22190

O-RING

22

08034-00536

BAND

23

08210-01201

SPIRAL TUBE

24

01010-81025

BOLT

25

01643-31032

WASHER

26

09822-11200

PLATE¤ OPERATING,MULTIPLE PATTERN

|26

20U-54-23371

PLATE¤ OPERATING,MULTIPLE PATTERN

27

20T-98-81210

RIVET

|27

04411-00310

RIVET

28

20U-54-23380

NUT

29

09822-A1110

PLATE¤ OPERATING

|29

20Y-00-11310

PLATE¤ OPERATING

30

09822-A1120

PLATE¤ OPERATING

|30

203-916-5730

PLATE¤ OPERATING

31

09822-00020

CASE¤ PLATE

|31

203-916-5130

PLATE¤ OPERATING

32

203-916-5150

PLATE¤ OPERATING

Выбрано товаров: 45
