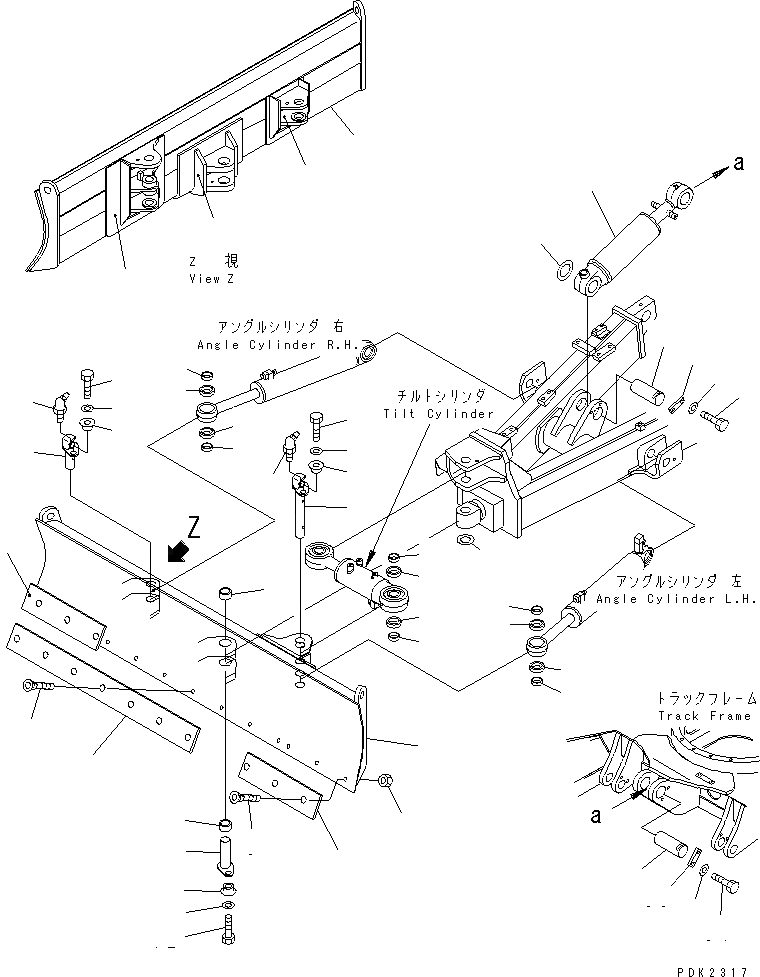

Запчасти Komatsu PC35R-8 ОТВАЛ (ДЛЯ PAT) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20S-910-0030

BLADE ASS'Y

1

BLADE

2

20S-910-8120

BRACKET (WELDED)

3

20S-910-8150

BRACKET (WELDED)

4

20U-910-1151

BRACKET (WELDED)

5

20U-910-1190

BUSHING

6

20S-910-3131

EDGE

7

20U-910-1980

EDGE,END

8

02090-10840

BOLT

9

02290-10813

NUT

10

20U-910-1160

PIN

11

20S-70-31180

SPACER

12

01010-81230

BOLT

13

01643-31232

WASHER

14

20T-70-81720

SPACER¤ 1.0MM

|14

20R-70-11270

SPACER¤ 1.0MM

15

20S-910-8230

PIN

16

20U-910-1360

BUSHING

17

20U-910-1370

COLLAR

18

20U-910-1280

COLLAR

19

20U-910-1290

BUSHING

20

07020-00675

FITTING,GREASE

21

20S-70-31180

SPACER

22

01010-81230

BOLT

23

01643-31232

WASHER

24

20T-910-8180

PIN

25

20S-70-31180

SPACER

26

01010-81230

BOLT

27

01643-31232

WASHER

28

20U-910-1360

BUSHING

29

20U-910-1370

COLLAR

30

07020-00675

FITTING,GREASE

31

20S-63-02540

CYLINDER ASS'Y,BLADE

32

20S-71-71210

PIN

33

04082-00212

LOCK

34

01010-81230

BOLT

35

01643-31232

WASHER

36

20T-70-81730

SPACER¤ 1.0MM

|36

201-70-23140

SPACER¤ 1.0MM
