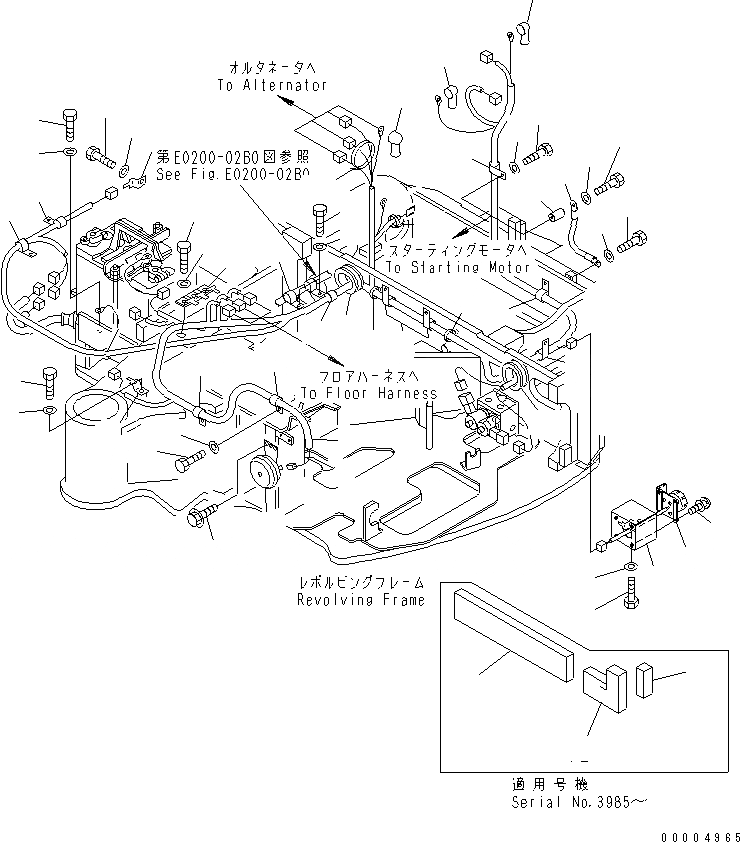

Запчасти Komatsu PC35MRX-1A ЭЛЕКТРОПРОВОДКА (Э/ПРОВОДКА)(№9-) ЭЛЕКТРИКА

1

22F-06-17141

WIRING HARNESS

1

22F-06-17140

WIRING HARNESS

1

20T-06-81230

FUSIBLE LINK

2

04434-51910

CLIP

3

04434-51610

CLIP

4

04434-52210

CLIP

5

01010-81020

BOLT

6

01643-31032

WASHER

7

08053-01510

CLIP

8

01010-81020

BOLT

9

01643-31032

WASHER

10

08160-61200

HORN

11

01435-00612

BOLT

12

22F-06-11190

BRACKET

13

01010-81020

BOLT

14

01643-31032

WASHER

15

08053-01510

CLIP

16

01010-81020

BOLT

17

01643-31032

WASHER

18

08038-10519

CAP

19

08038-10525

CAP

20

20N-06-71430

WIRE

21

01010-81020

BOLT

22

01010-81040

BOLT

23

01643-31032

WASHER

24

144-62-21270

SPACER

25

01010-81020

BOLT

26

01643-31032

WASHER

27

20T-62-81140

GROMMET

28

170-04-11230

CLIP

29

08036-91014

CLIP

30

01010-81020

BOLT

31

01643-31032

WASHER

32

08034-20519

BAND

33

04434-51710

CLIP

34

08034-20519

BAND

35

08034-30521

BAND

36

21S-06-2A111

ALARM,TRAVEL

37

01023-10410

SCREW

38

22F-06-17132

BRACKET

38

22F-06-17131

BRACKET

38

22F-06-17130

BRACKET

39

01010-80820

BOLT

40

01643-30823

WASHER

41

22F-06-17310

SHEET

42

22F-06-17320

SHEET

43

22F-06-17330

SHEET
