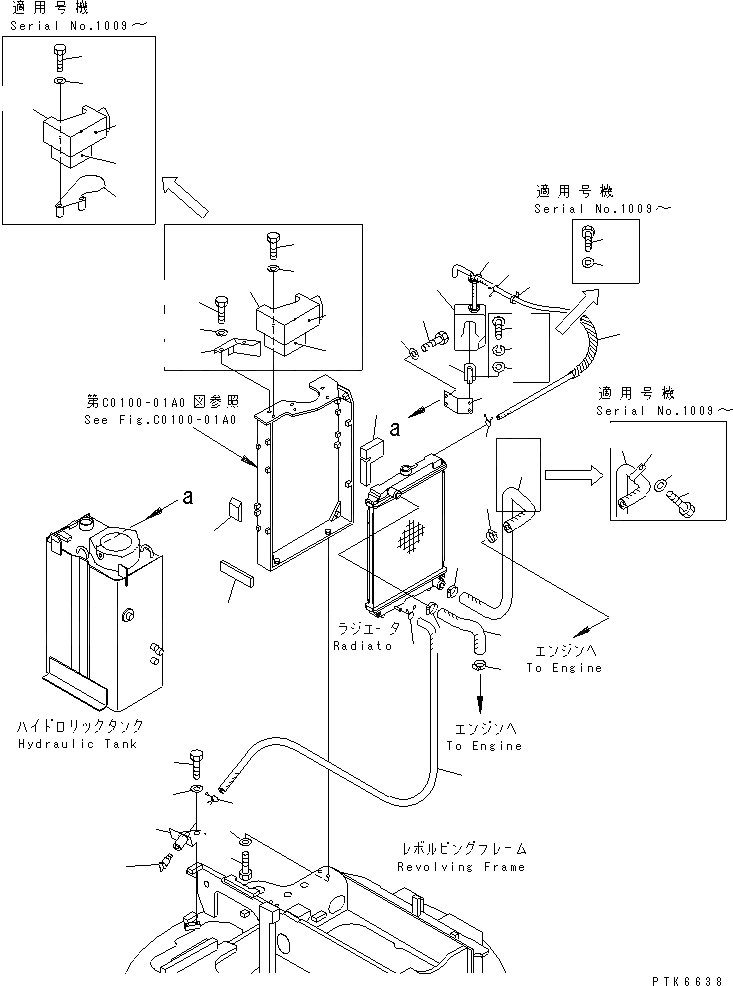

Запчасти Komatsu PC35MRX-1A ОХЛАЖД-Е (ТРУБЫ И КРЕПЛЕНИЕ) СИСТЕМА ОХЛАЖДЕНИЯ

1

21U-03-31160

HOSE

2

21U-03-31171

HOSE

3

07281-00419

CLAMP

3

07289-00035

CLAMP

3A

155-61-15350

CLIP

3A

281-01-13180

CLIP

3B

01010-81020

BOLT

3C

01643-31032

WASHER

4

20T-03-81360

TANK

5

20T-03-81370

CONDUCTION ASS'Y

6

20T-03-71450

CLAMP

7

08034-30521

BAND

7A

08017-21303

CONDUIT

8

20T-03-71420

BRACKET

9

01010-80616

BOLT

9

01220-40616

SCREW

10

01602-20619

WASHER

11

01643-30623

WASHER

12

22F-03-11310

BRACKET

13

01010-81020

BOLT

14

01643-31032

WASHER

15

01010-81040

BOLT

15

01010-81050

BOLT

16

01643-31032

WASHER

17

21U-03-31370

BOSS,COCK

18

20Y-03-21980

PLUG

19

01010-81020

BOLT

20

01643-31032

WASHER

21

206-03-43340

CLIP

22

22F-03-11320

HOSE

23

22F-03-11260

PLATE ASS'Y

24

22F-03-11270

SHEET

25

22F-03-11280

SHEET

26

01010-81070

BOLT

26

01010-81060

BOLT

26

01010-81025

BOLT

27

01643-31032

WASHER

28

22F-03-11410

COVER

29

01010-81025

BOLT

30

01643-31032

WASHER

31

22F-03-11360

PLATE

32

22F-03-11350

SHEET

33

22F-60-11170

SHEET

34

22F-46-11450

SHEET
