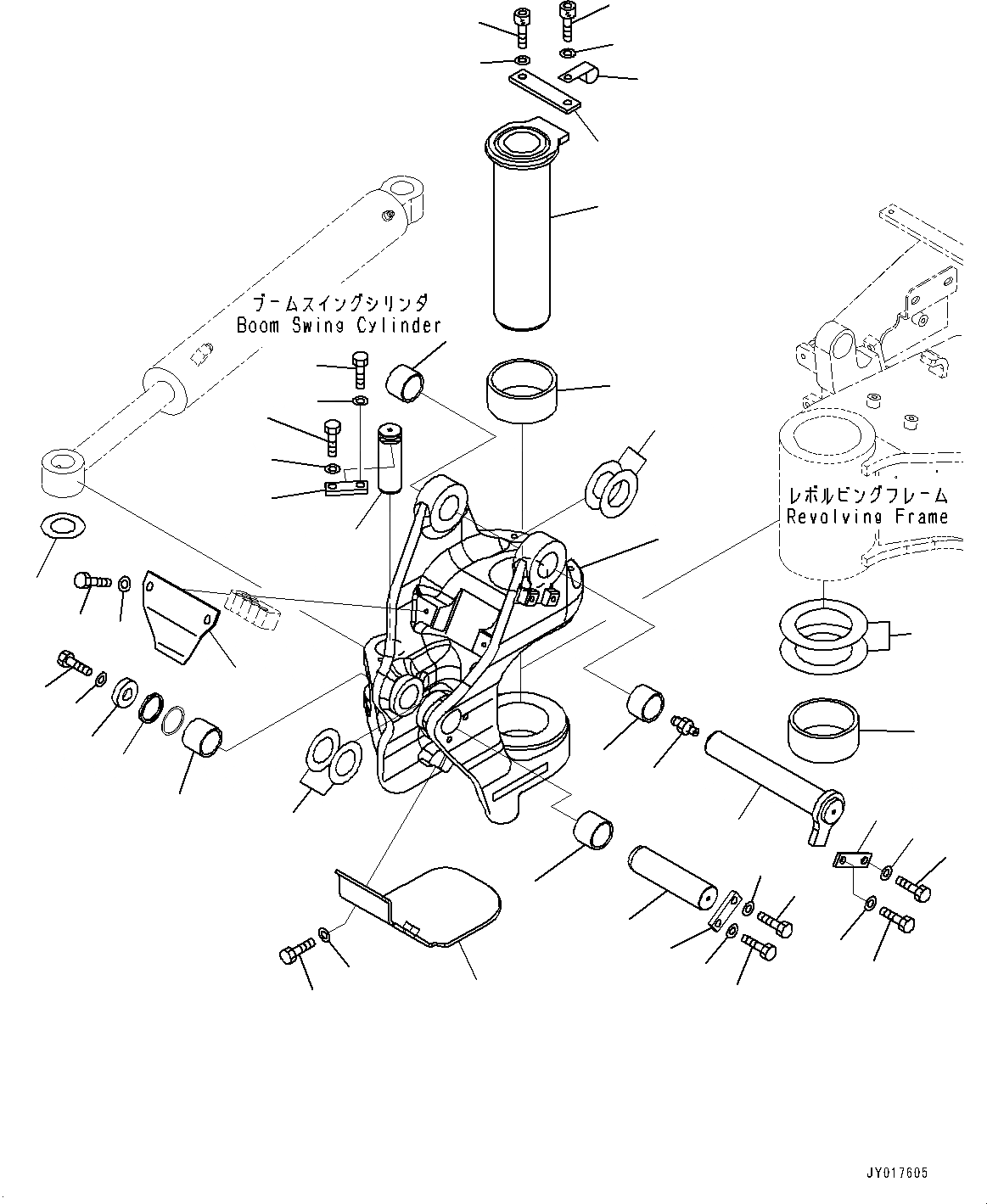

Запчасти Komatsu PC35MR-3 КОРПУС ПОВОРОТА СТРЕЛЫ (№8-) КОРПУС ПОВОРОТА СТРЕЛЫ

1

22F-70-31412

Bracket

2

22F-70-31330

Bushing

3

22M-70-38631

Bushing

4

22F-70-31350

Bushing

5

22F-70-21422

Pin

6

22F-70-21430

Plate

7

01643-31232

Washer

8

01643-31232

Washer

9

01252-71230

Bolt, Hexagon Socket Head

10

01252-71230

Bolt, Hexagon Socket Head

11

22F-70-21450

Plate, T=0.8mm

11

22F-70-21460

Plate, T=0.5mm

12

22F-70-21470

Pin

13

04082-00212

Lock

14

01010-81230

Bolt

15

01643-31232

Washer

16

01010-81230

Bolt

17

01643-31232

Washer

18

20T-70-81730

Spacer, T=1.0mm

18

20T-70-81760

Spacer, T=0.5mm

19

22F-70-21151

Pin

20

07020-00000

Fitting, Grease

21

22L-70-11310

Plate

22

01010-81230

Bolt

23

01643-31232

Washer

24

01010-81230

Bolt

25

01643-31232

Washer

26

22L-70-11350

Spacer, T=0.5mm

26

22L-70-11360

Spacer, T=1.0mm

27

22L-70-21163

Pin

28

22L-70-31460

Plate

29

01010-82045

Bolt

30

01643-32060

Washer

31

22L-70-31470

Spacer

31

22L-70-31480

Spacer

32

20T-70-81650

Lock

33

01010-81230

Bolt

34

01643-31232

Washer

35

01010-81230

Bolt

36

01643-31232

Washer

37

20T-70-81710

Spacer, T=1.0mm

37

20S-70-81710

Spacer, T=1.0mm

38

22F-70-31420

Cover

39

22F-62-33150

Cover

40

01010-80825

Bolt

41

01643-30823

Washer

42

01010-81040

Bolt

43

01643-31032

Washer

44

144-874-6970

Clip
