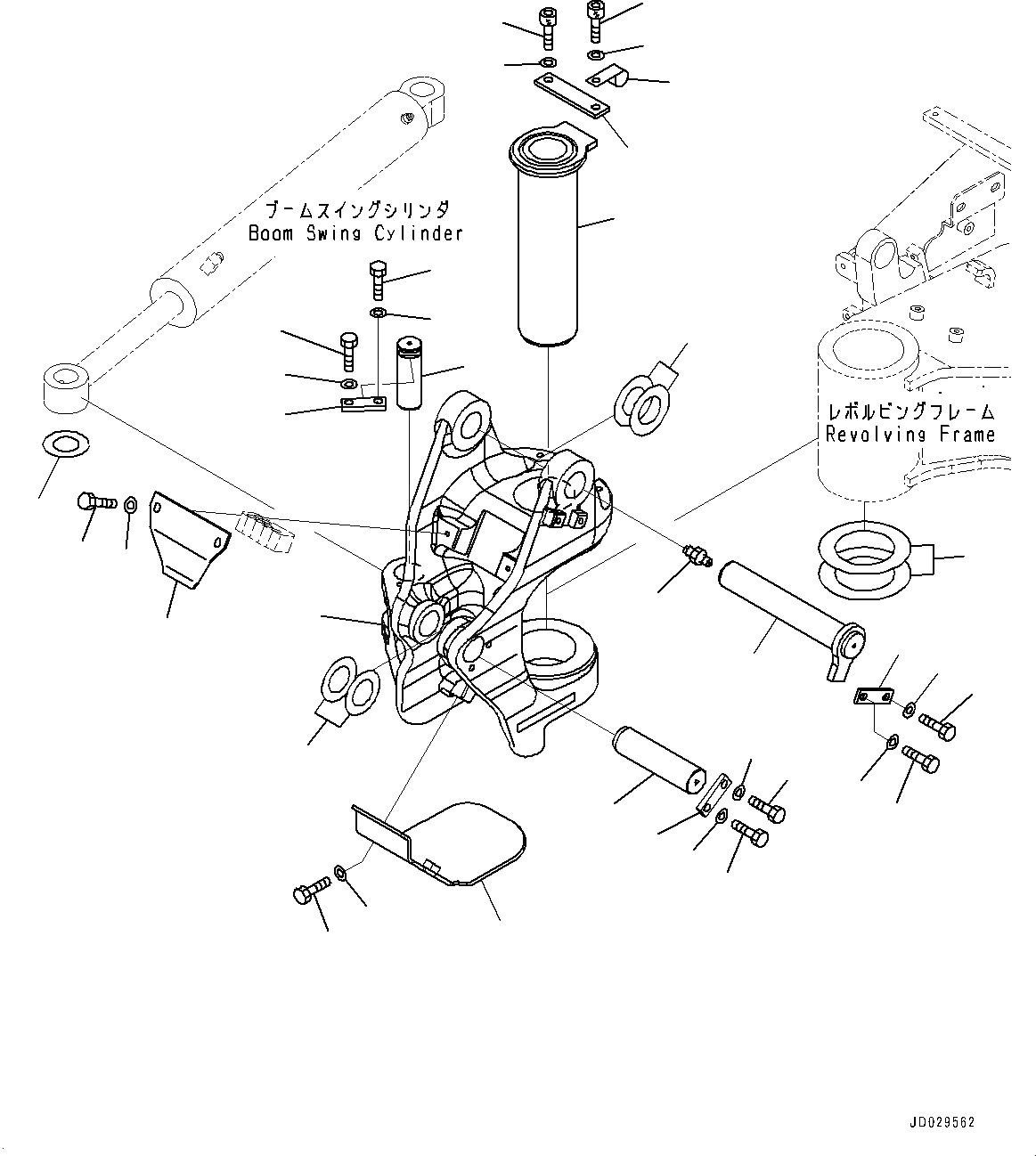

Запчасти Komatsu PC35MR-3 КОРПУС ПОВОРОТА СТРЕЛЫ (№9-8) КОРПУС ПОВОРОТА СТРЕЛЫ

1

22F-70-31411

Bracket

2

22F-70-21422

Pin

3

22F-70-21430

Plate

4

01643-31232

Washer

5

01643-31232

Washer

6

01252-71230

Bolt, Hexagon Socket Head

7

01252-71230

Bolt, Hexagon Socket Head

8

22F-70-21450

Plate, T=0.8mm

8

22F-70-21460

Plate, T=0.5mm

9

22F-70-21470

Pin

10

04082-00212

Lock

11

01010-81230

Bolt

12

01643-31232

Washer

13

01010-81230

Bolt

14

01643-31232

Washer

15

20T-70-81730

Spacer, T=1.0mm

15

20T-70-81760

Spacer, T=0.5mm

16

22F-70-21151

Pin

17

07020-00000

Fitting, Grease

18

22L-70-11310

Plate

19

01010-81230

Bolt

20

01643-31232

Washer

21

01010-81230

Bolt

22

01643-31232

Washer

23

22L-70-11350

Spacer, T=0.5mm

23

22L-70-11360

Spacer, T=1.0mm

24

22L-70-21162

Pin

25

04082-00212

Lock

26

01010-81230

Bolt

27

01643-31232

Washer

28

01010-81230

Bolt

29

01643-31232

Washer

30

20T-70-81710

Spacer, T=1.0mm

30

20S-70-81710

Spacer, T=1.0mm

31

22F-70-31420

Cover

32

22F-62-33150

Cover

33

01010-80825

Bolt

34

01643-30823

Washer

35

01010-81040

Bolt

36

01643-31032

Washer

37

144-874-6970

Clip
