Запчасти Komatsu PC35MR-3 МАРКИРОВКА (АНГЛ.¤ БУКВЕНН.) (КАБИНА) (ДЛЯ СЕВ. АМЕРИКИ)(№-) МАРКИРОВКА

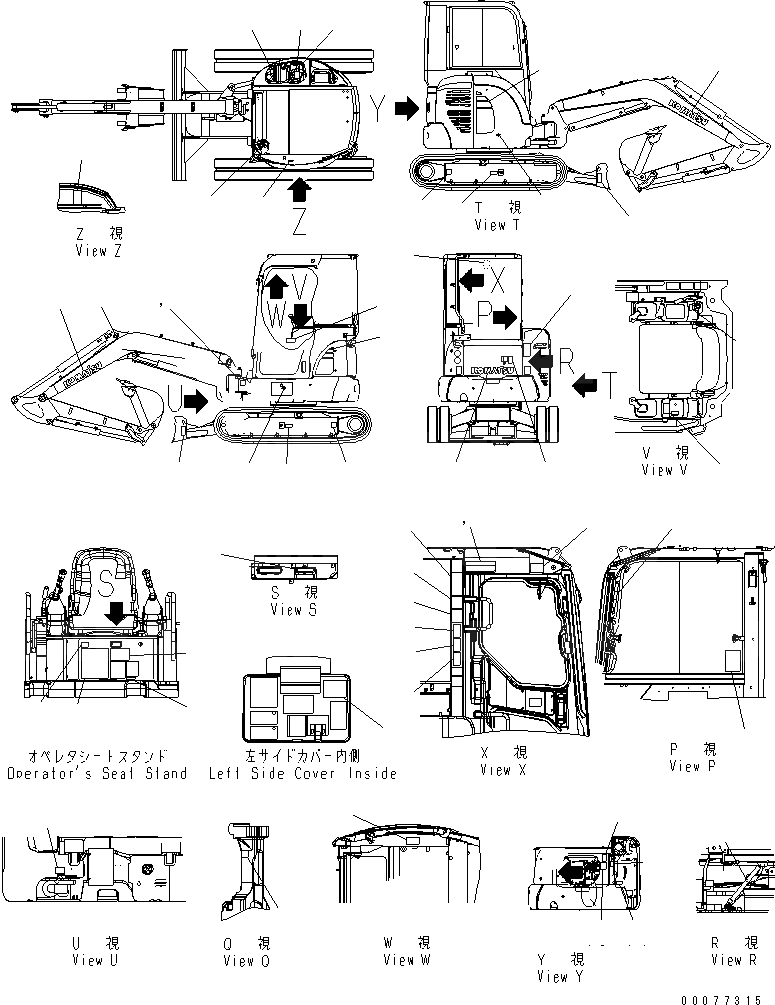

Схема запчастей Komatsu PC35MR-3 - МАРКИРОВКА (АНГЛ.¤ БУКВЕНН.) (КАБИНА) (ДЛЯ СЕВ. АМЕРИКИ)(№-) МАРКИРОВКА
1
1
2
3
4
5
6
7
8
9
9
10
11
11
12
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

Артикул

Название

Примечание

Количество

1

09657-03003

PLATE, SAFETY,TRACK ADJUSTING

2

22L-98-22240

PLATE, SAFETY,HOT OIL WARNING

3

22J-98-25240

PLATE,FUEL

4

22K-98-22560

PLATE, CAUTION,HYDRAULIC OIL CHARGE

5

22L-98-22170

PLATE, OPERATING,FLOOR LOCK

6

22L-98-22390

PLATE, SAFETY,TILT LOCK PIN

7

09601-100J1

PLATE, NAME,(LIMITED SUPPLY)

8

04418-13060

SCREW

9

21U-98-31160

PLATE, MARK,LOCATION OF CENTER OF GRAVITY

10

21U-98-31150

PLATE, MARK,HANDLING

11

21U-98-31150

PLATE, MARK,HANDLING

12

22J-98-1A120

PLATE,TRACK HOLDING

13

21S-98-32140

PLATE,CONCENTRATION GREASING

14

09963-03001

TAG,DO NOT OPERATE

15

09659-53000

PLATE, SAFETY,ACCUMULATOR

16

09659-53000

PLATE, SAFETY,GAS SPRING

17

22F-98-21130

PLATE, MARK,PC35MR

18

22F-98-31310

PLATE, MARK,PC35MR

19

09690-P0560

PLATE, MARK,KOMATSU

20

09690-P0560

PLATE, MARK,KOMATSU

21

22L-98-22322

PLATE,ROPS

22

FF8741-03130

RIVET

23

22F-98-31350

PLATE, OPERATING,OPERATING PATTERN

24

09651-03001

PLATE, SAFETY,BEFORE OPERATION

25

09654-03001

PLATE, SAFETY,LEAVING SEAT

26

09801-03001

PLATE, SAFETY,HAZARDOUS VOLTAGE HAZARD

27

22L-98-22380

PLATE, OPERATING,STARTER SWITCH

28

22L-98-22291

PLATE, OPERATING,LEVER LOCK

29

20P-98-71510

PLATE, OPERATING,FUSE BOX

30

22L-98-22190

PLATE, CAUTION,HANDLING POSTURE

31

22F-98-31121

OIL CHART

32

22L-98-22160

PLATE, CAUTION,BEFORE OPERATING

33

22F-98-31510

PLATE,FUSE BOX

34

22L-98-22280

PLATE, CAUTION,CAB

35

09803-03000

PLATE, SAFETY,WINDOW OPEN

36

22L-98-18270

PLATE,URGENT ESCAPE

37

22M-98-11520

PLATE, SAFETY,BOOM SWING

38

09839-03000

PLATE, SAFETY,SAFETY LOCK LEVER

39

22L-98-22410

PLATE, CAUTION,DOWN THE FLOOR

40

22L-98-22140

PLATE, OPERATING,OPERATOR'S SEAT

41

09659-53000

PLATE, SAFETY,GAS SPRING

42

20M-98-73130

PLATE, CAUTION,KEEP OUT OF TURNING AREA

43

09667-03001

PLATE, SAFETY,FAN BELT

44

09808-03000

PLATE, SAFETY,BATTERY CABLE

45

20M-98-83250

PLATE,HOT WATER WARNING

46

09651-03001

PLATE, SAFETY,BEFORE OPERATION WARNING

47

22F-98-17210

PLATE, CAUTION,FUEL FILTER

48

22L-98-22261

PLATE, CAUTION,RIGHT SIDE COVER

Выбрано товаров: 48
