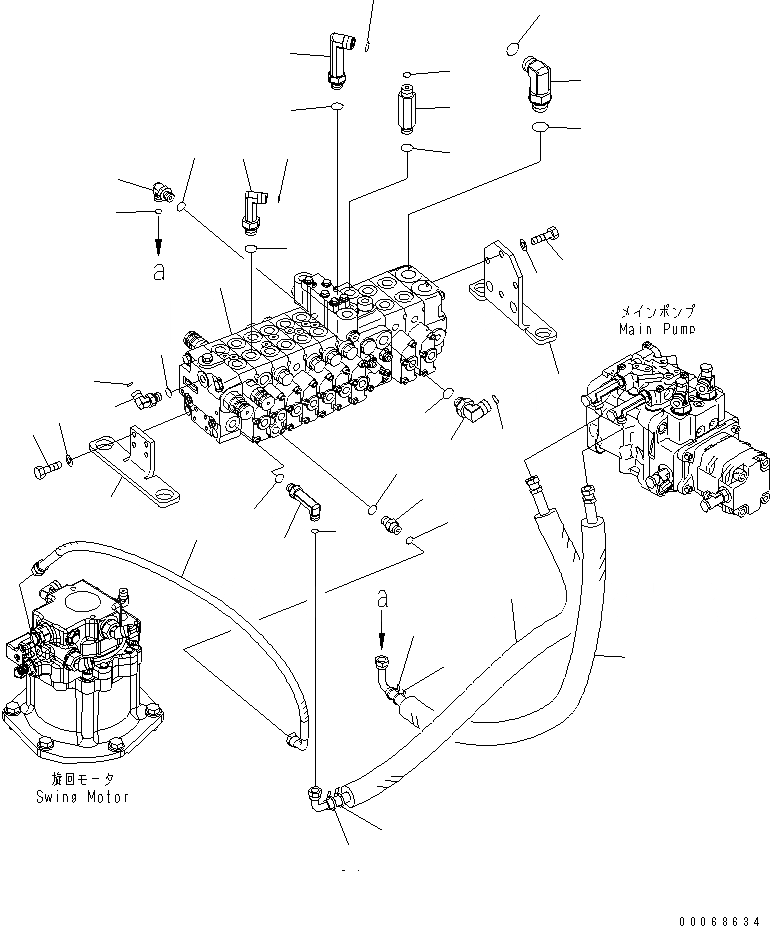

Запчасти Komatsu PC35MR-3 ОСНОВН. КЛАПАН (СОЕДИНИТЕЛЬН. ЧАСТИ) (/) ( НАВЕСН. ОБОРУД) (ДЛЯ СЕВ. АМЕРИКИ)(№-) ГИДРАВЛИКА

1

723-19-16900

CONTROL VALVE,(SEE FIG.Y1662-01A0)

2

22F-60-31410

BRACKET

3

01010-81030

BOLT

4

01643-31032

WASHER

5

22F-60-21223

BRACKET

6

01010-80820

BOLT

7

01643-30823

WASHER

8

02782-10420

ELBOW

9

02896-11012

O-RING

10

07002-11823

O-RING

11

02782-1052A

ELBOW

12

02896-11015

O-RING

13

07002-12434

O-RING

14

21W-62-42420

UNION

15

02896-11009

O-RING

16

07002-11823

O-RING

17

02782-10210

ELBOW

18

02896-11008

O-RING

19

07002-11423

O-RING

20

22F-62-22162

HOSE

20

22F-62-22161

HOSE

21

21U-62-34750

BAND, BLUE

22

21U-62-34760

BAND, RED

23

22F-62-22510

ELBOW

24

02896-11012

O-RING

25

07002-11823

O-RING

26

02782-10210

ELBOW

27

02896-11008

O-RING

28

07002-11423

O-RING

29

02782-10314

ELBOW

30

02896-11009

O-RING

31

07002-11823

O-RING

32

02782-10212

ELBOW

33

02896-11008

O-RING

34

07002-11423

O-RING

35

22F-62-22152

HOSE

35

22F-62-22151

HOSE

36

21U-62-34750

BAND, BLUE

37

21U-62-34730

BAND, GREEN

38

02781-0021D

UNION

39

02896-11008

O-RING

40

07002-11423

O-RING

41

22L-62-22862

HOSE
