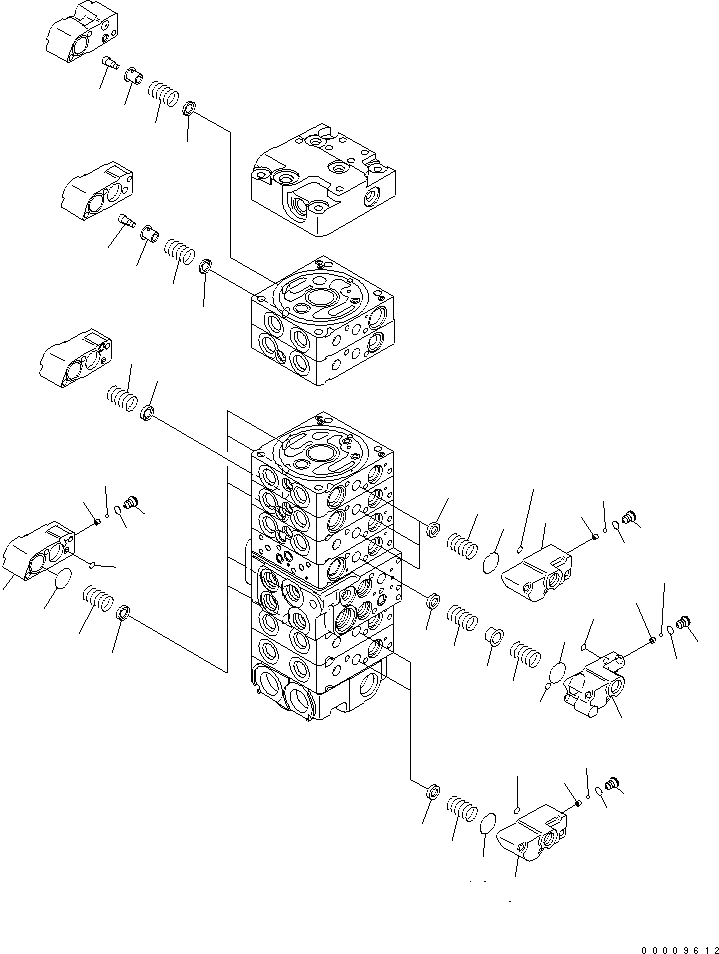

Запчасти Komatsu PC35MR-2 ОСНОВН. КЛАПАН (8-КЛАПАН) (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$5

723-18-15904

CONTROL VALVE

|$6

723-18-15903

CONTROL VALVE

|$7

723-18-15902

CONTROL VALVE

|$8

723-18-15901

CONTROL VALVE

|$9

723-18-15900

CONTROL VALVE

1

723-11-17330

RETAINER

2

723-11-17353

RETAINER

3

723-11-17341

SPRING

4

723-11-17770

SPRING

5

723-11-17780

SPRING

6

723-11-17790

RETAINER

7

723-11-17361

BOLT

8

723-11-37130

RETAINER

|$19

723-11-01540

CASE SUB ASS'Y

9

CASE,SPRING

10

722-12-19120

O-RING

11

PLUG

12

07002-10823

O-RING

13

SEAT

14

BALL

15

702-21-54260

O-RING

|$27

723-11-01550

CASE SUB ASS'Y

16

CASE,SPRING

17

722-12-19120

O-RING

18

PLUG

19

07002-10823

O-RING

20

SEAT

21

BALL

22

702-21-54260

O-RING
