PC35MR-2 S/N 5001-UP (Canopy Spec.)
/
МАРКИРОВКА
/

МАРКИРОВКА (РОССИЯ) (НАВЕС)

Запчасти Komatsu PC35MR-2 МАРКИРОВКА (РОССИЯ) (НАВЕС) МАРКИРОВКА

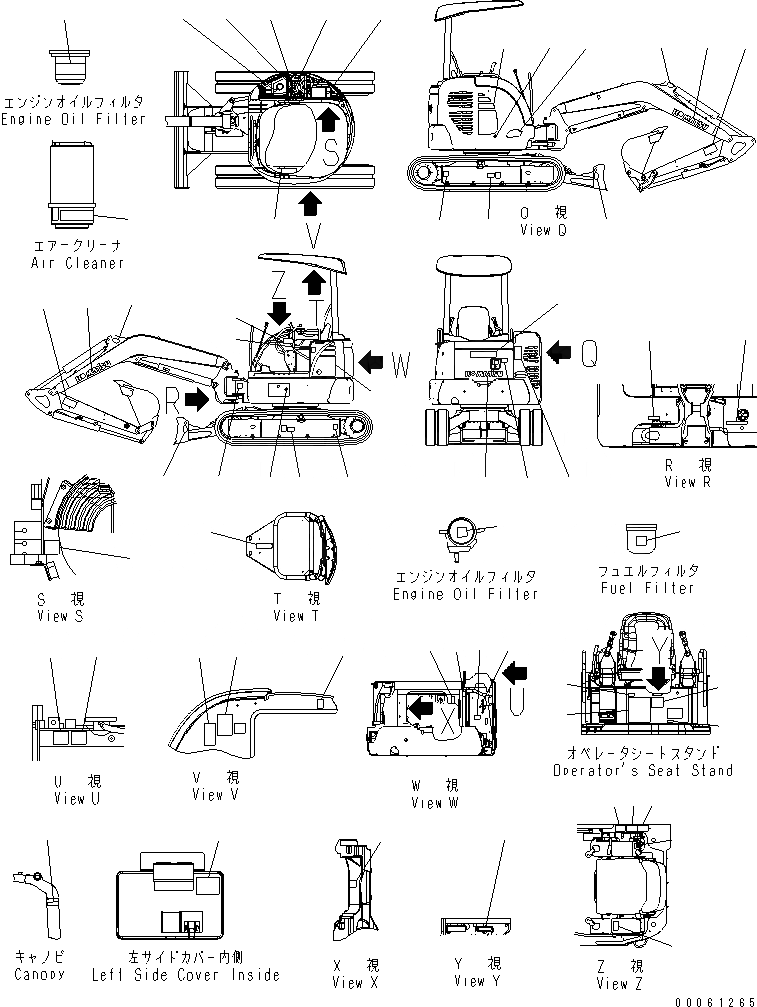

Схема запчастей Komatsu PC35MR-2 - МАРКИРОВКА (РОССИЯ) (НАВЕС) МАРКИРОВКА
1
1
2
3
4
5
6
7
7
8
9
10
10
11
12
13
14
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
44
45
46
46
47
48
49
50
51
52
53

№

Артикул

Название

Примечание

Количество

1

09657-A0881

PLATE, SAFETY,TRACK ADJUSTING

2

22M-98-12110

PLATE, SAFETY,KEEP OUT OF TURNING AREA

3

09667-A0481

PLATE, SAFETY,FAN BELT

4

09808-A0881

PLATE, SAFETY,BATTERY CABLE

5

09653-A0361

PLATE, SAFETY,HOT OIL WARNING

6

09653-A0361

PLATE, SAFETY,HOT WATER WARNING

7

09651-A0481

PLATE, SAFETY,BEFORE OPERATION WARNING

8

09654-A0481

PLATE, SAFETY,LEAVING SEAT

9

09801-A0481

PLATE, SAFETY,HAZARDOUS VOLTAGE HAZARD

10

09690-P0500

PLATE, MARK,KOMATSU

11

09690-F0500

PLATE, MARK,KOMATSU

12

09690-P0140

PLATE, MARK,KOMATSU

13

09601-10031

PLATE, NAME,(LIMITED SUPPLY)

13

04418-13060

SCREW

14

21U-98-31160

PLATE, MARK,LOCATION OF CENTER OF GRAVITY

15

09960-01201

MARK,HANDLING

16

09960-70601

MARK,HANDLING

17

09960-00602

MARK,TRACK HOLDING

18

22L-98-18211

PLATE, MARK,UTILITY

19

22L-98-22550

PLATE, OPERATING,STARTER SWITCH

20

22L-98-22510

PLATE, OPERATING,LEVER LOCK

21

21S-98-33270

PLATE,CONCENTRATION GREASING

22

22F-98-24260

PLATE, CAUTION,FUEL FILTER

23

22F-98-24140

PLATE, OPERATING,FUSE BOX

24

09669-0000E

PLATE, CAUTION,FUEL

25

21S-98-28330

PLATE,HYD. TANK

26

21S-98-28350

PLATE,HYDRAULIC OIL FILTER

27

22L-98-22450

PLATE, OPERATING,OPERATOR'S SEAT

28

22F-98-24350

PLATE, CAUTION,ENGINE OIL FILTER

29

22F-98-24360

PLATE,AIR CLEANER

30

22L-98-22180

PLATE, OPERATING,FLOOR LOCK

31

22L-98-22461

PLATE,HANDLING POSTURE

32

09963-A1640

TAG

33

22F-98-22490

PLATE, CAUTION,RIGHT SIDE COVER

34

22F-98-24120

PLATE, SAFETY,TILT LOCK PIN

35

09824-K0481

PLATE, SAFETY,DOWN THE FLOOR

36

22F-98-21140

PLATE, MARK,PC35MR

37

22F-98-21130

PLATE, MARK,PC35MR

38

22L-98-21112

OIL CHART

39

22F-98-22110

PLATE, MARK,PC35MR

40

22M-98-12110

PLATE, SAFETY,BEFORE OPERATING

41

22L-98-22570

PLATE,OPERATING PATTERN

42

22L-98-22322

PLATE,ROPS

42

22L-98-22321

PLATE,ROPS

42

04418-13060

SCREW

44

22F-98-24240

PLATE,CANOPY WEIGHT 110KG

45

22F-06-21960

PLATE,FUSE BOX

46

09134-A0881

PLATE, SAFETY

47

21S-98-28970

PLATE,FUEL FILTER

48

21S-98-28980

PLATE,AIR CLEANER

49

22L-98-18290

PLATE,ENGINE OIL FILTER

50

22L-98-22530

PLATE,LIFTING CAPACITY

51

22L-98-22540

PLATE,COOLING WATER

52

21S-98-28340

PLATE,HYDRAULIC OIL LEVEL

53

09842-A0481

PLATE, CAUTION,DON'T JAMP START

Выбрано товаров: 55
