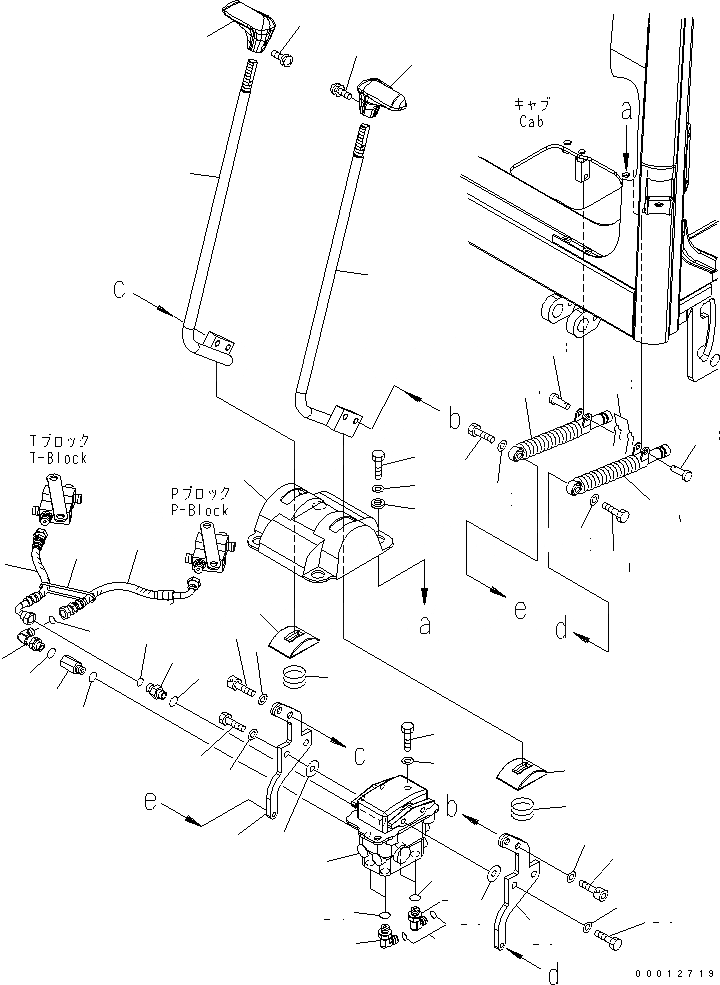

Запчасти Komatsu PC35MR-2-B КАБИНА (КОНТРОЛЬ ХОДА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20Y-43-21151

COVER

2

20Y-43-21260

COLLAR

3

01010-D1025

BOLT

4

203-54-56970

WASHER

5

22M-43-21391

LEVER,L.H.

6

22M-43-21381

LEVER,R.H.

7

01252-81025

BOLT

8

01643-71032

WASHER

9

20Y-43-21231

KNOB,L.H.

10

20Y-43-21241

KNOB,R.H.

11

01023-20416

SCREW

11A

22M-43-11590

DAMPER

11B

04205-30832

PIN

11C

04052-20833

PIN,SNAP

11D

01010-80830

BOLT

11E

01643-30823

WASHER

12

702-16-01950

PILOT VALVE,(SEE FIG.Y1670-01A0)

13

01010-D1025

BOLT

14

01643-71032

WASHER

15

11Y-62-12140

NIPPLE

16

07000-12011

O-RING

17

02896-11008

O-RING

18

21W-62-43970

ELBOW

19

20T-910-8660

NIPPLE

20

07000-12011

O-RING

21

02896-11008

O-RING

22

21K-62-73110

ELBOW

23

02896-11008

O-RING

24

07000-12011

O-RING

25

22M-43-22111

PLATE

26

20Y-43-21260

COLLAR

27

203-43-51620

SPRING

28

20Y-43-21140

COVER

29

01010-81030

BOLT

30

01643-31032

WASHER

31

22M-62-23160

HOSE,BLUE¤ WHITE

|31

21U-62-34750

BAND¤ BLUE

|31

21U-62-34770

BAND¤ WHITE

32

22M-62-23170

HOSE,GREEN¤ RED

|32

21U-62-34730

BAND¤ GREEN

|32

21U-62-34760

BAND¤ RED

33

08034-20519

BAND
