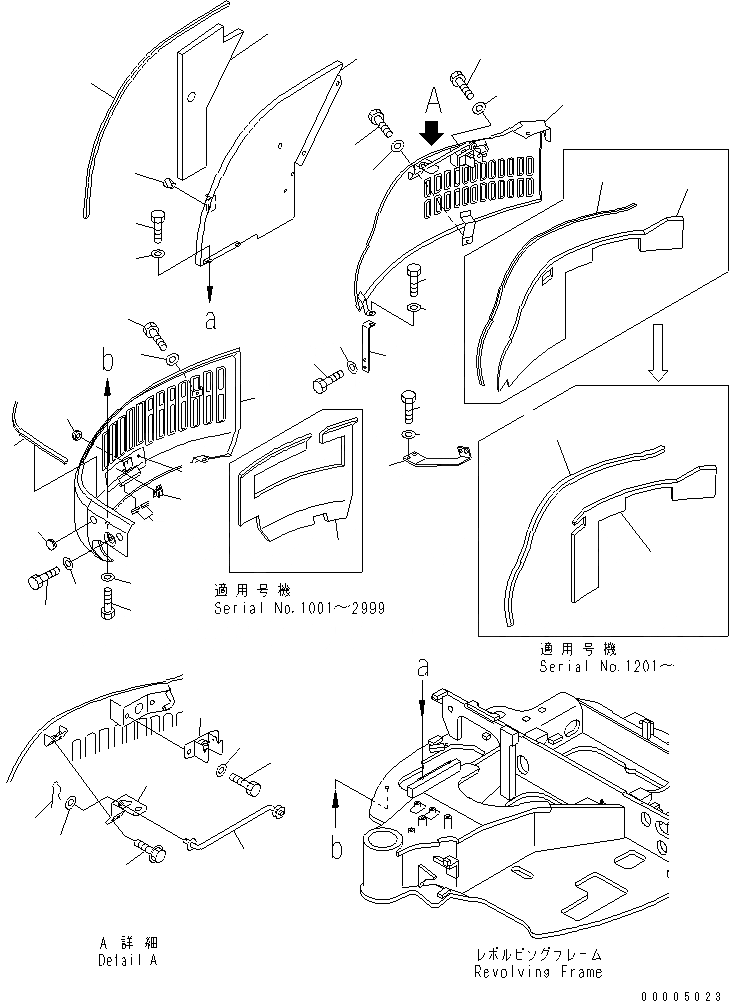

Запчасти Komatsu PC35MR-1 БОКОВ. КРЫШКА (ПРАВ.)(№-) ЧАСТИ КОРПУСА

|1

22F-54-11101

COVER ASS'Y

|1

22F-54-11100

COVER ASS'Y

1

22F-54-11220

COVER

1A

20N-54-71440

HINGE

1B

22M-54-19170

STOPPER

1C

21U-54-31560

COVER ASS'Y

2

22F-54-11151

SHEET

3

22F-54-11630

SEAL

4

08037-02512

GROMMET

5

01010-81025

BOLT

6

01010-81035

BOLT

|6

01010-81040

BOLT

7

01643-31032

WASHER

8

09415-02512

CAP

9

22F-54-11111

BRACKET

10

01010-81025

BOLT

11

01643-31032

WASHER

|12

22F-54-11200

COVER ASS'Y

12

22F-54-11230

COVER

13

21U-54-31540

SEAL

14

22F-54-11480

SHEET

|14

21U-54-31522

SHEET

15

22F-54-11260

BRACKET

16

01435-00816

BOLT

17

21U-54-31491

LOCK

18

01010-81016

BOLT

19

01643-31032

WASHER

19A

22F-54-11660

SEAL

|19A

09412-00014

SEAL

20

01010-81020

BOLT

21

01010-81025

BOLT

22

203-54-56970

WASHER

23

22F-54-11121

BRACKET

24

01010-81025

BOLT

25

01643-31032

WASHER

26

22F-54-11420

COVER

26A

22F-54-11360

SHEET

27

22F-54-11251

SEAL

|27

22F-54-11250

SEAL

28

01010-81025

BOLT

29

01643-31032

WASHER

30

22F-54-11180

ROD

31

01643-30823

WASHER

32

04052-10833

PIN,SNAP

33

07049-00811

PLUG
