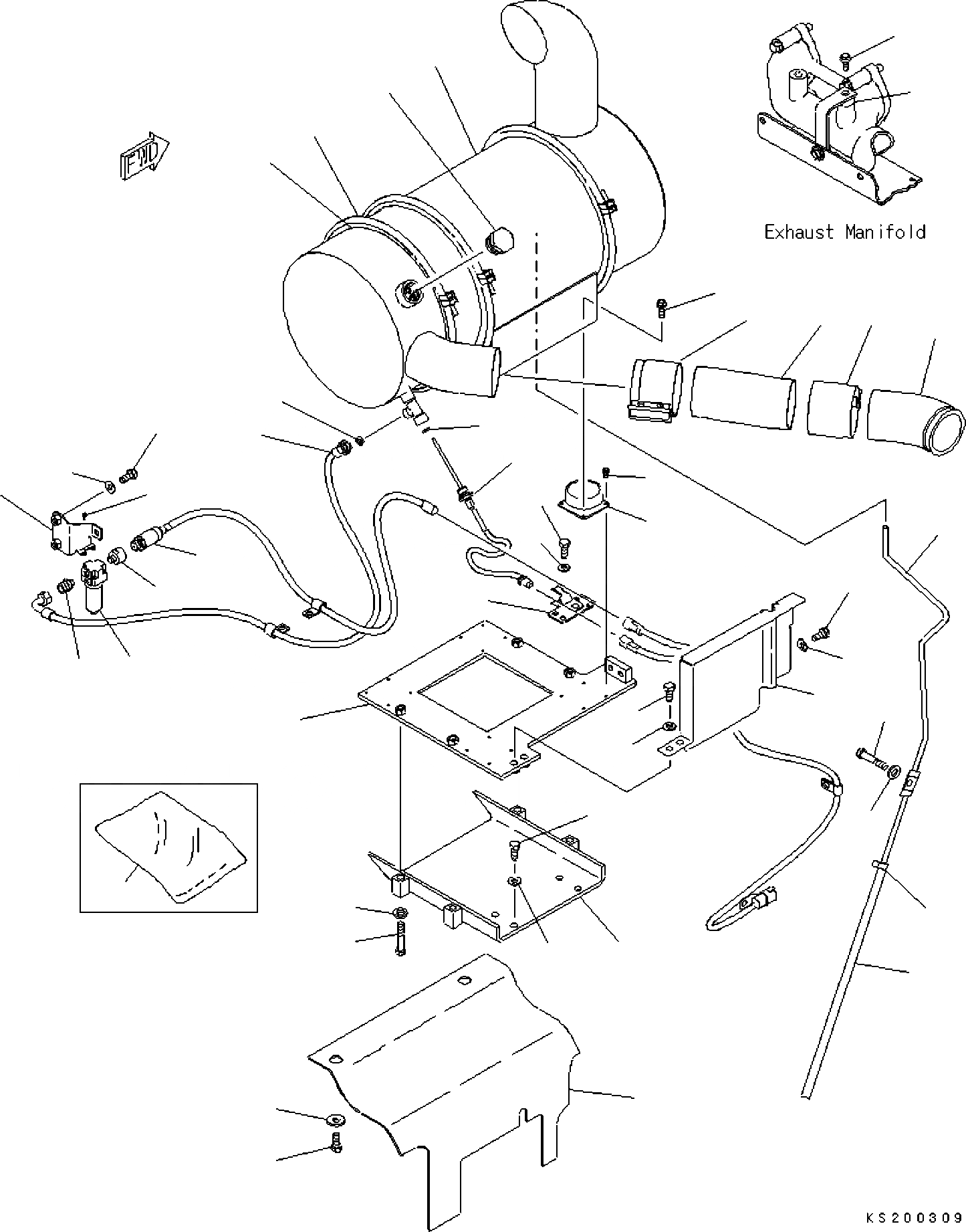

Запчасти Komatsu PC350NLC-8 DIESEL ЧАСТЬICULATE ФИЛЬТР. И КРЕПЛЕНИЕ B КОМПОНЕНТЫ ДВИГАТЕЛЯ

1

207-01-K1630

DIESEL PARTICULATE FILTER ASSEMBLY

2

207-01-K1550

GASKET

3

207-01-K1560

RING CLAMP

4

207-01-K2050

PLUG

5

207-01-K1660

PLATE

6

01435-00614

BOLT

7

01435-01030

BOLT

8

20Y-01-K2060

MOUNT

9

20Y-01-K2161

HOSE (PRESSURE SENSOR)

10

20Y-01-K2250

SEALING RING

11

20Y-01-K2122

PRESSURE SENSOR

12

20Y-01-K2111

TEMPERATURE SENSOR

13

207-01-K1570

FLANGE

14

207-01-K1580

TUBE

15

207-01-K1590

CLAMP

16

207-01-K1610

FILTER BAG

17

207-01-K1670

BRACKET

18

207-01-K1040

BRACKET

19

01010-81225

BOLT

20

01643-31232

WASHER

21

207-01-K1680

SPACER

22

01435-01025

BOLT

23

01010-81265

BOLT

24

01643-31445

WASHER

25

01010-81235

BOLT

26

01643-31232

WASHER

27

207-54-K3751

SHEET

28

01010-81230

BOLT

29

175-54-34170

WASHER

30

207-01-K1380

BRACKET

31

01010-80820

BOLT

32

01643-30823

WASHER

33

207-01-K1060

TUBE

34

07260-20950

HOSE

35

07285-00155

CLAMP

36

01010-81245

BOLT

37

01643-31232

WASHER

38

20Y-01-K2291

BRACKET

39

207-01-K1650

WATER SEPERATOR

40

01023-70410

SCREW

41

207-01-K1090

FITTING

42

207-01-K1080

FITTING

43

01010-81225

BOLT

44

01643-31232

WASHER
